Could someone please help me solve these? Could someone please help me with these quick physics questions? 5. Four currents intersect as shown. Determine and

Could someone please help me solve these?

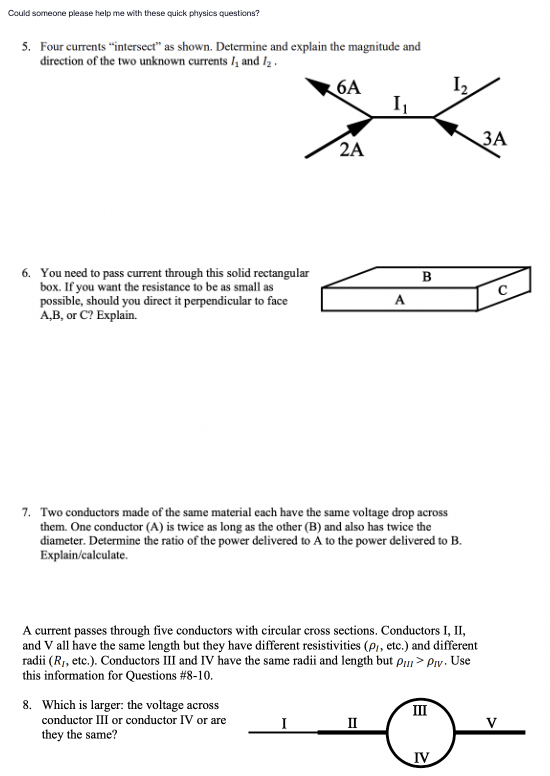

image text in transcribed
