Could you please help me with this question? It's really urgent:,(I will definitely rate, thanks. The lines show the equipotential contours in the plane of

Could you please help me with this question? It's really urgent:,(I will definitely rate, thanks.

image text in transcribed

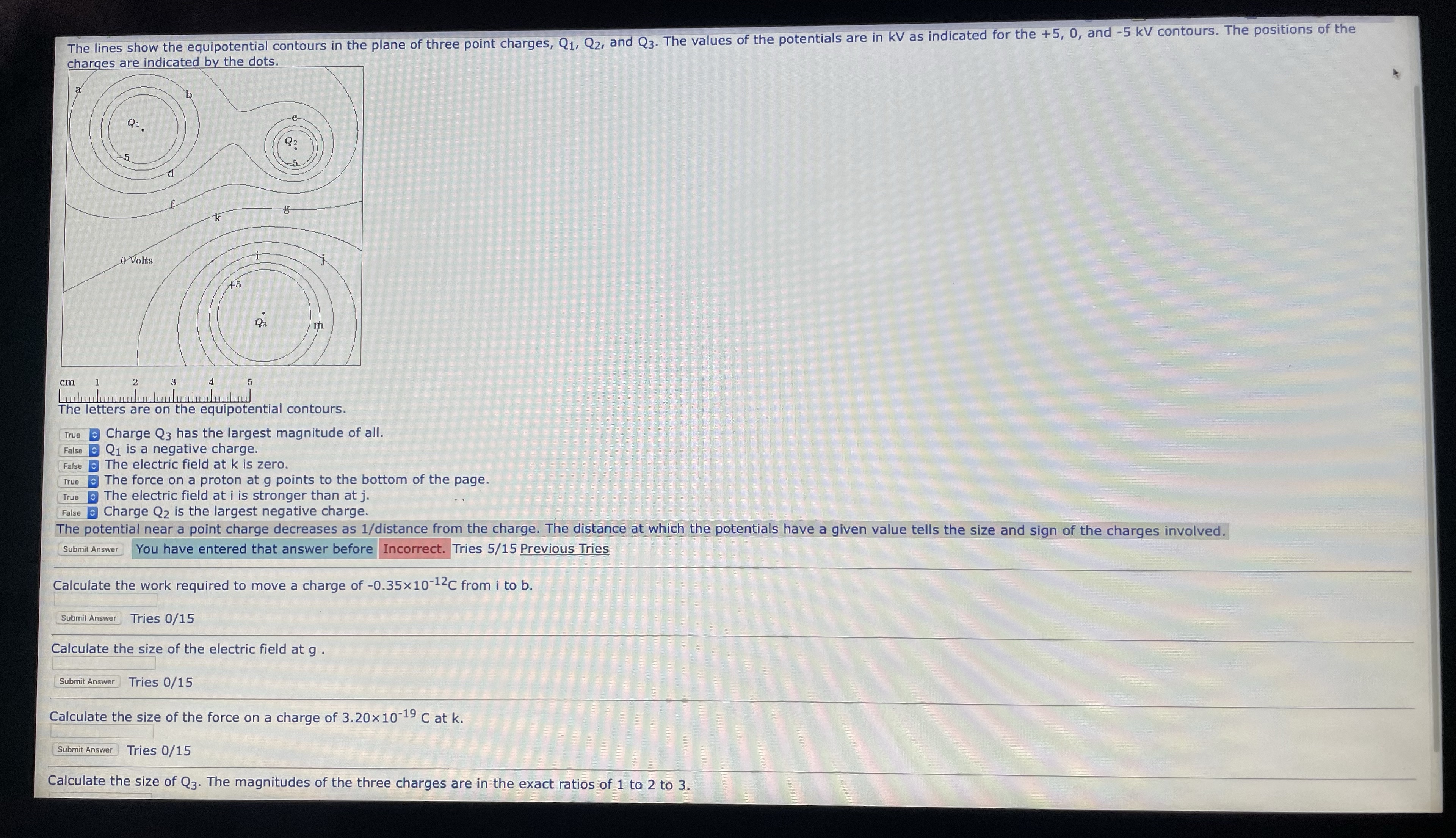

The lines show the equipotential contours in the plane of three point charges, Q1, Q2, and Q3. The values of the potentials are in KV as indicated for the +5, 0, and -5 kV contours. The positions of the charges are indicated by the dots. A Volts Qa cm The letters are on the equipotential contours. True Charge Q3 has the largest magnitude of all. False Q1 is a negative charge. False The electric field at k is zero. True The force on a proton at g points to the bottom of the page. True The electric field at i is stronger than at j. False Charge Q2 is the largest negative charge. The potential near a point charge decreases as 1/distance from the charge. The distance at which the potentials have a given value tells the size and sign of the charges involved. Submit Answer You have entered that answer before Incorrect. Tries 5/15 Previous Tries Calculate the work required to move a charge of -0.35x10-12C from i to b. Submit Answer Tries 0/15 Calculate the size of the electric field at g . Submit Answer Tries 0/15 Calculate the size of the force on a charge of 3.20x10-19 C at k. Submit Answer Tries 0/15 Calculate the size of Q3. The magnitudes of the three charges are in the exact ratios of 1 to 2 to 3
