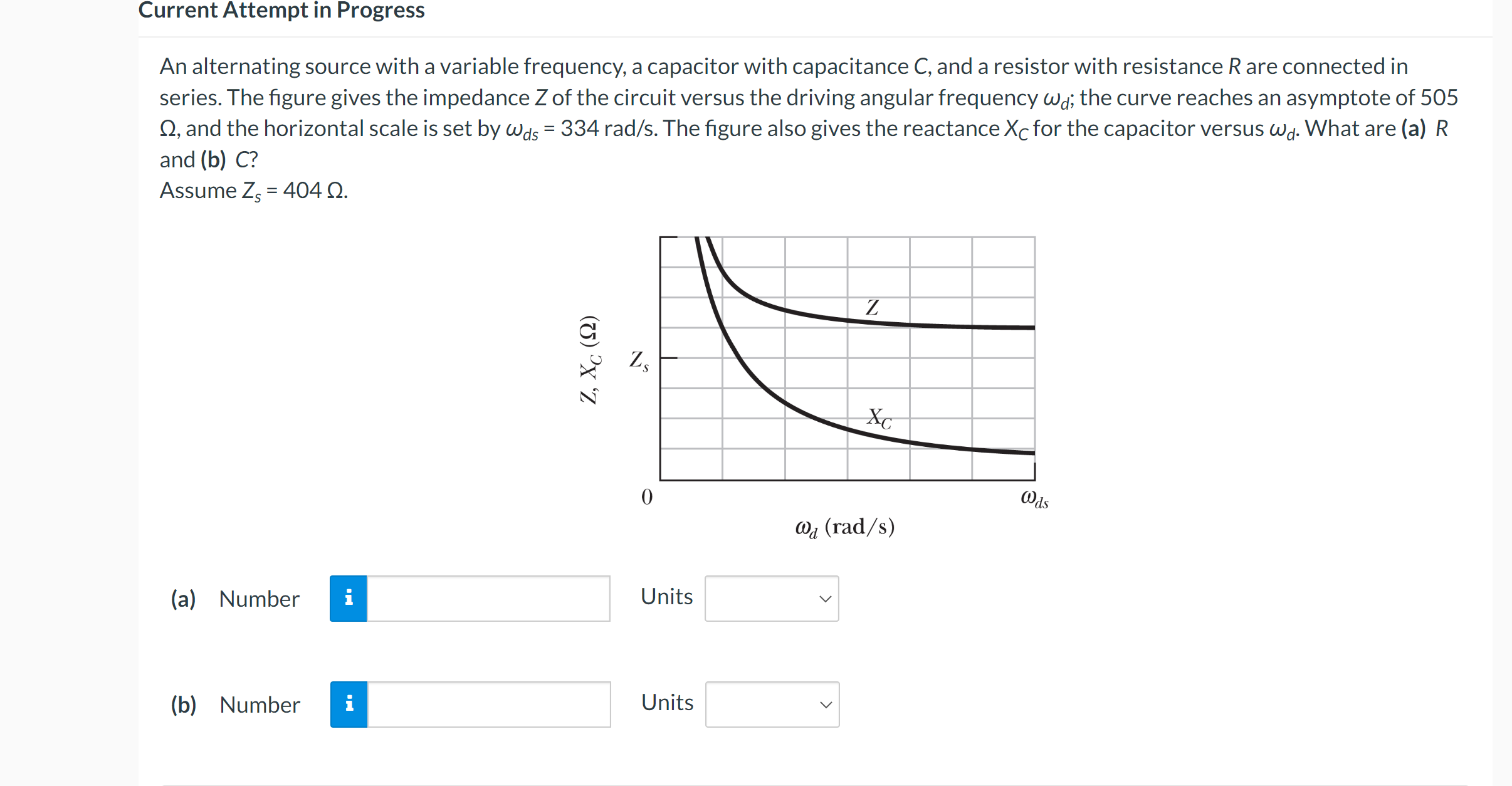

Current Attempt in Progress An alternating source with a variable frequency, a capacitor with capacitance C, and a resistor with resistance R are connected in series. The gure gives the impedance Z of the circuit versus the driving angular frequency bad; the curve reaches an asymptote of 505 Q, and the horizontal scale is set by was = 334 rad/s. The gure also gives the reactance XCfor the capacitor versus wd. What are (a) R and (b) C? Assume ZS = 404 Q. (a) Number n Units v (b) Number n Units v An alternating source drives a series RLC circuit with an emf amplitude of 6.28 V, at a phase angle of +31.6. When the potential difference across the capacitor reaches its maximum positive value of +5.14 V, what is the potential difference across the inductor (sign included)? Number n Units v eTextbook and Media Save for Later Attempts: O of 3 used View Policies Current Attempt in Progress The gure shows a driven RLC circuit that contains two identical capacitors and two switches. The emf amplitude is set at 11.9 V, and the driving frequency is set at 56.9 Hz. With both switches open, the current leads the emf by 30.8". With switch 51 closed and switch 82 still open, the emf leads the current by 15.4". With both switches closed, the current amplitude is 441 mA. What are (a) R, (b) C, and (c) L? (a) Number n Units v (b) Number n Units V (c) Number n Units v
