Dear tutor, Please answer the first three questions, 1- Please, give a detailed analysis of why and recommend the most suitable project delivery / procurement

Dear tutor, Please answer the first three questions,

  1. 1- Please, give a detailed analysis of why and recommend the most suitable project

    delivery / procurement system and the appropriate pricing scheme (contract type) that can be proposed to accomplish the work according to your companys perspective.

  2. 2- Prepare a network diagram including the logic relationship among activities and determine the minimum possible project duration. Manually, calculate ES, EF, LS, LF, TF, and FF for each activity and show critical path. Show the project end calendar date.

  3. 3- Show the latest time you can complete the building frame in order to start the exterior brick work and roof.

Thank you very much!!!

image text in transcribed

image text in transcribedimage text in transcribed

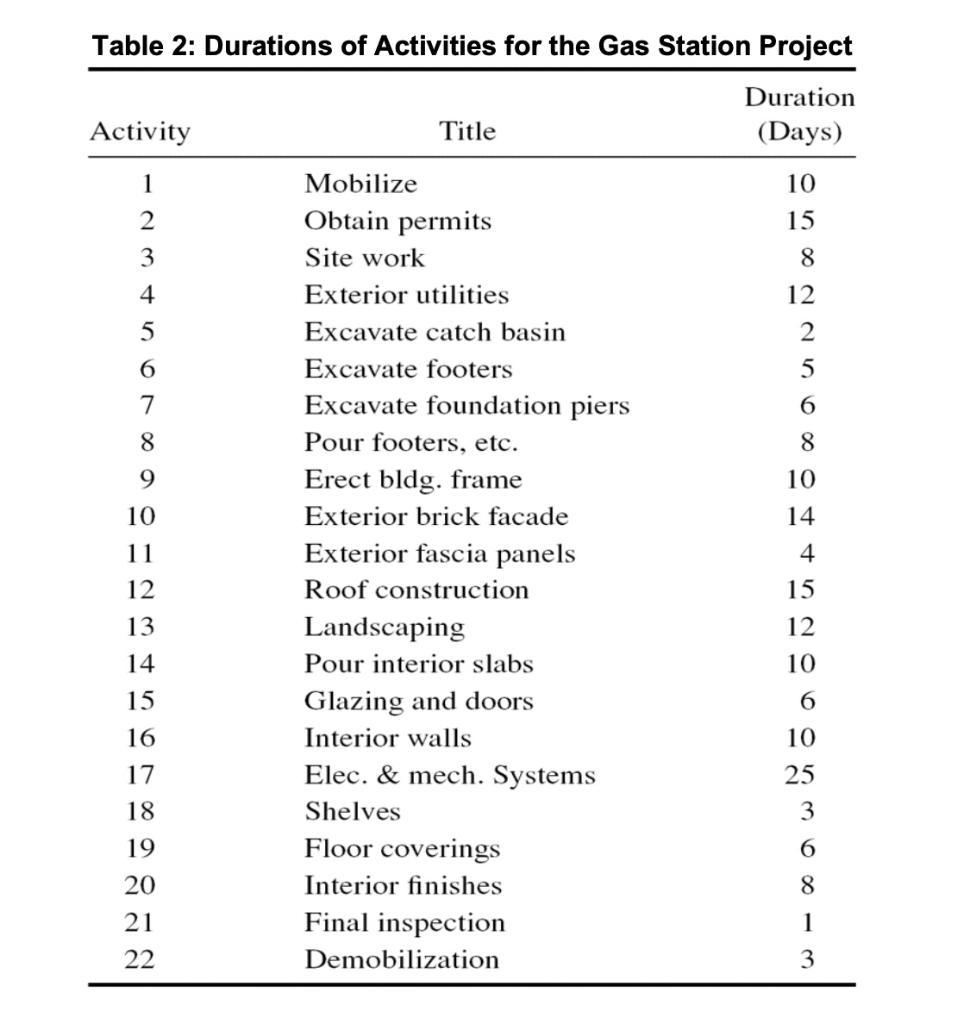

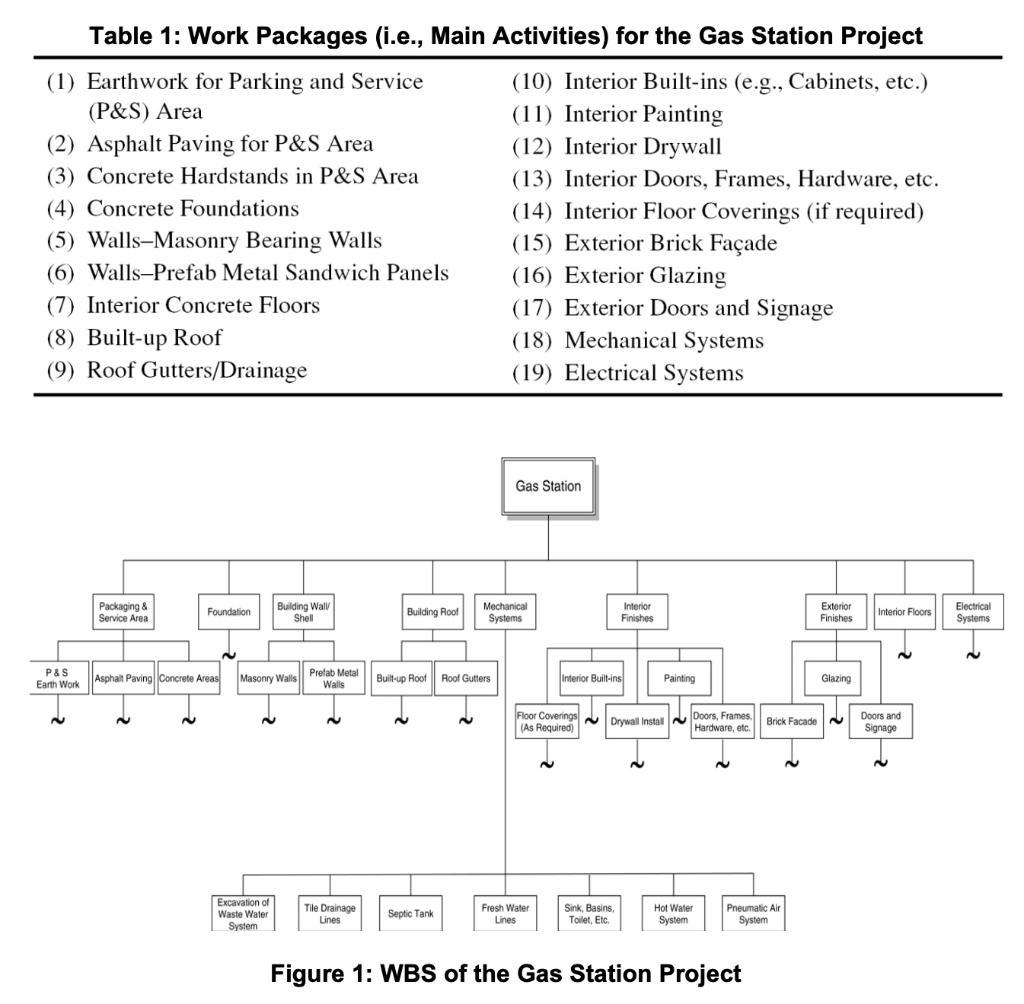

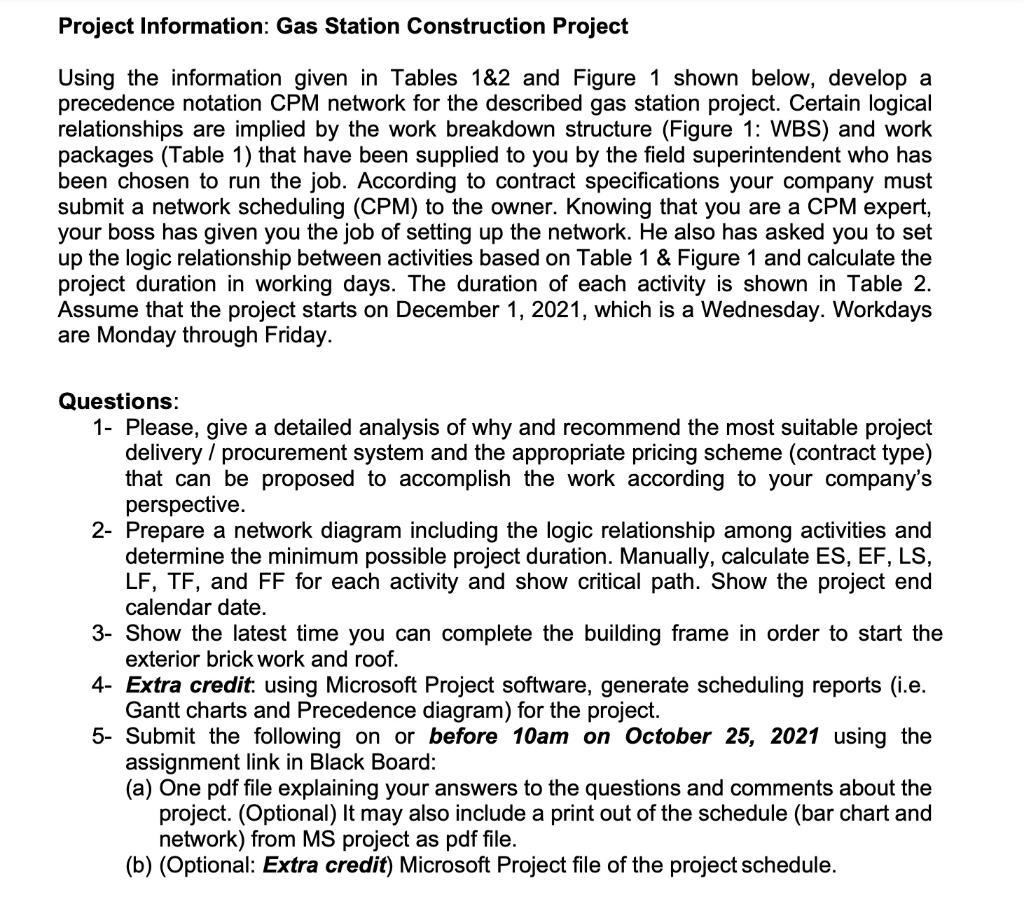

Project Information: Gas Station Construction Project Using the information given in Tables 1&2 and Figure 1 shown below, develop a precedence notation CPM network for the described gas station project. Certain logical relationships are implied by the work breakdown structure (Figure 1: WBS) and work packages (Table 1) that have been supplied to you by the field superintendent who has been chosen to run the job. According to contract specifications your company must submit a network scheduling (CPM) to the owner. Knowing that you are a CPM expert, your boss has given you the job of setting up the network. He also has asked you to set up the logic relationship between activities based on Table 1 & Figure 1 and calculate the project duration in working days. The duration of each activity is shown in Table 2. Assume that the project starts on December 1, 2021, which is a Wednesday. Workdays are Monday through Friday. Questions: 1- Please, give a detailed analysis of why and recommend the most suitable project delivery / procurement system and the appropriate pricing scheme (contract type) that can be proposed to accomplish the work according to your company's perspective. 2- Prepare a network diagram including the logic relationship among activities and determine the minimum possible project duration. Manually, calculate ES, EF, LS, LF, TF, and FF for each activity and show critical path. Show the project end calendar date. 3- Show the latest time you can complete the building frame in order to start the exterior brick work and roof. 4- Extra credit using Microsoft Project software, generate scheduling reports (i.e. Gantt charts and Precedence diagram) for the project. 5- Submit the following on or before 10am on October 25, 2021 using the assignment link in Black Board: (a) One pdf file explaining your answers to the questions and comments about the project. (Optional) It may also include a print out of the schedule (bar chart and network) from MS project as pdf file. (b) (Optional: Extra credit) Microsoft Project file of the project schedule. Table 1: Work Packages (i.e., Main Activities) for the Gas Station Project (1) Earthwork for Parking and Service (10) Interior Built-ins (e.g., Cabinets, etc.) (P&S) Area (11) Interior Painting (2) Asphalt Paving for P&S Area (12) Interior Drywall (3) Concrete Hardstands in P&S Area (13) Interior Doors, Frames, Hardware, etc. (4) Concrete Foundations (14) Interior Floor Coverings (if required) (5) Walls-Masonry Bearing Walls (15) Exterior Brick Faade (6) Walls-Prefab Metal Sandwich Panels (16) Exterior Glazing (7) Interior Concrete Floors (17) Exterior Doors and Signage (8) Built-up Roof (18) Mechanical Systems (9) Roof Gutters/Drainage (19) Electrical Systems Gas Station Packaging & Service Area Foundation Building Wall Shell Building Pool Mechanical Systems Interior Finishes Exterior Finishes Interior Floors Electrical Systems N N P&S Earth Work Asphalt Paving Concrete Areas Masonry Walls Prelab Metal Wallis Built-up Roof Roof Gutters Interior Built-ins Painting Glazing N Floor Coverings (As Required) Drywall Install Doors, Frames Hardware, etc. Brick Facade Doors and Signage Excavation of Waste Water Tile Drainage Lines Septic Tank Fresh Water Lines Sink, Basins Toilet. Etc Hot Water System Pneumatic Air System System Figure 1: WBS of the Gas Station Project Table 2: Durations of Activities for the Gas Station Project Duration Activity Title (Days) 1 Mobilize 10 2 Obtain permits 15 3 Site work 4 Exterior utilities 5 Excavate catch basin 6 Excavate footers 5 7 Excavate foundation piers 6 8 Pour footers, etc. 9 Erect bldg. frame Exterior brick facade 11 Exterior fascia panels 12 Roof construction 15 13 Landscaping 14 Pour interior slabs 10 Glazing and doors 6 16 Interior walls 17 Elec. & mech. Systems 18 Shelves 19 Floor coverings 6 20 Interior finishes 21 Final inspection 22 Demobilization 3 10 14 wa a woooooooooo 15 Project Information: Gas Station Construction Project Using the information given in Tables 1&2 and Figure 1 shown below, develop a precedence notation CPM network for the described gas station project. Certain logical relationships are implied by the work breakdown structure (Figure 1: WBS) and work packages (Table 1) that have been supplied to you by the field superintendent who has been chosen to run the job. According to contract specifications your company must submit a network scheduling (CPM) to the owner. Knowing that you are a CPM expert, your boss has given you the job of setting up the network. He also has asked you to set up the logic relationship between activities based on Table 1 & Figure 1 and calculate the project duration in working days. The duration of each activity is shown in Table 2. Assume that the project starts on December 1, 2021, which is a Wednesday. Workdays are Monday through Friday. Questions: 1- Please, give a detailed analysis of why and recommend the most suitable project delivery / procurement system and the appropriate pricing scheme (contract type) that can be proposed to accomplish the work according to your company's perspective. 2- Prepare a network diagram including the logic relationship among activities and determine the minimum possible project duration. Manually, calculate ES, EF, LS, LF, TF, and FF for each activity and show critical path. Show the project end calendar date. 3- Show the latest time you can complete the building frame in order to start the exterior brick work and roof. 4- Extra credit using Microsoft Project software, generate scheduling reports (i.e. Gantt charts and Precedence diagram) for the project. 5- Submit the following on or before 10am on October 25, 2021 using the assignment link in Black Board: (a) One pdf file explaining your answers to the questions and comments about the project. (Optional) It may also include a print out of the schedule (bar chart and network) from MS project as pdf file. (b) (Optional: Extra credit) Microsoft Project file of the project schedule. Table 1: Work Packages (i.e., Main Activities) for the Gas Station Project (1) Earthwork for Parking and Service (10) Interior Built-ins (e.g., Cabinets, etc.) (P&S) Area (11) Interior Painting (2) Asphalt Paving for P&S Area (12) Interior Drywall (3) Concrete Hardstands in P&S Area (13) Interior Doors, Frames, Hardware, etc. (4) Concrete Foundations (14) Interior Floor Coverings (if required) (5) Walls-Masonry Bearing Walls (15) Exterior Brick Faade (6) Walls-Prefab Metal Sandwich Panels (16) Exterior Glazing (7) Interior Concrete Floors (17) Exterior Doors and Signage (8) Built-up Roof (18) Mechanical Systems (9) Roof Gutters/Drainage (19) Electrical Systems Gas Station Packaging & Service Area Foundation Building Wall Shell Building Pool Mechanical Systems Interior Finishes Exterior Finishes Interior Floors Electrical Systems N N P&S Earth Work Asphalt Paving Concrete Areas Masonry Walls Prelab Metal Wallis Built-up Roof Roof Gutters Interior Built-ins Painting Glazing N Floor Coverings (As Required) Drywall Install Doors, Frames Hardware, etc. Brick Facade Doors and Signage Excavation of Waste Water Tile Drainage Lines Septic Tank Fresh Water Lines Sink, Basins Toilet. Etc Hot Water System Pneumatic Air System System Figure 1: WBS of the Gas Station Project Table 2: Durations of Activities for the Gas Station Project Duration Activity Title (Days) 1 Mobilize 10 2 Obtain permits 15 3 Site work 4 Exterior utilities 5 Excavate catch basin 6 Excavate footers 5 7 Excavate foundation piers 6 8 Pour footers, etc. 9 Erect bldg. frame Exterior brick facade 11 Exterior fascia panels 12 Roof construction 15 13 Landscaping 14 Pour interior slabs 10 Glazing and doors 6 16 Interior walls 17 Elec. & mech. Systems 18 Shelves 19 Floor coverings 6 20 Interior finishes 21 Final inspection 22 Demobilization 3 10 14 wa a woooooooooo 15
