Design a combinational circuit with three inputs, x , Y , and Z , and three outputs, A , B , and C . When

Design a combinational circuit with three inputs, x,Y, and Z, and three outputs, A,B, and C. When the binary input is 0,1,2, or 3, the binary output is two greater than the input. When the binary input is 4,5,6, or 7, the binary output is three less than the input.

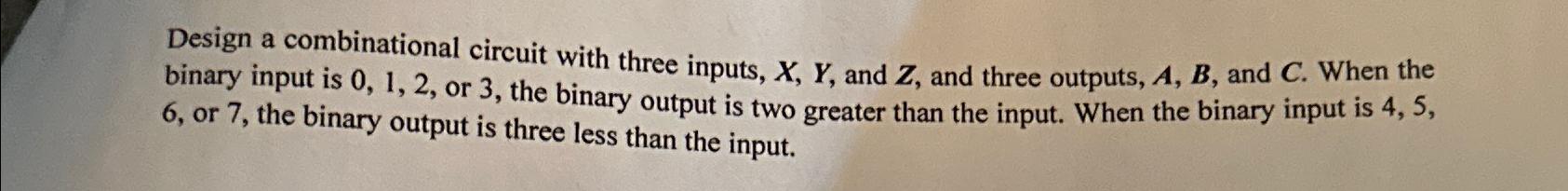

image text in transcribed
