Design a Mealy sequential circuit to convert a 4 - bit binary number in the range 0 0 0 0 through 1 0 1 0

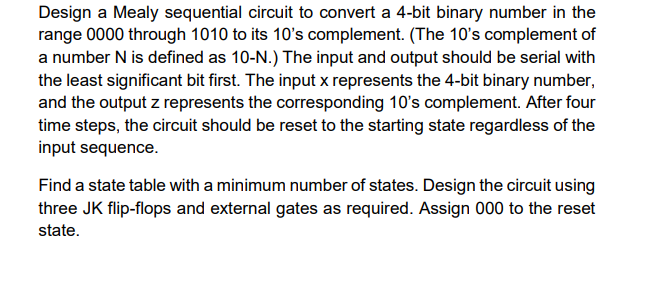

Design a Mealy sequential circuit to convert a 4-bit binary number in the
range 0000 through 1010 to its 10's complement. (The 10's complement of
a number N is defined as 10-N.) The input and output should be serial with
the least significant bit first. The input x represents the 4-bit binary number,
and the output z represents the corresponding 10's complement. After four
time steps, the circuit should be reset to the starting state regardless of the
input sequence.
Find a state table with a minimum number of states. Design the circuit using
three JK flip-flops and external gates as required. Assign 000 to the reset
state.
image text in transcribed
