Design a renewable power generation by a PV system as shown in Figure 3(b) rated at 600 kW of power at 460 V AC (three

Design a renewable power generation by a PV system as shown in Figure 3(b) rated at 600 kW of power at 460 V AC (three phase) using a PV module with the data given in Table 3(b). Consider input DC voltage for the three-phase inverter is 835 V, string voltage is 578.6 V, and each array power is 20 kW. image text in transcribed

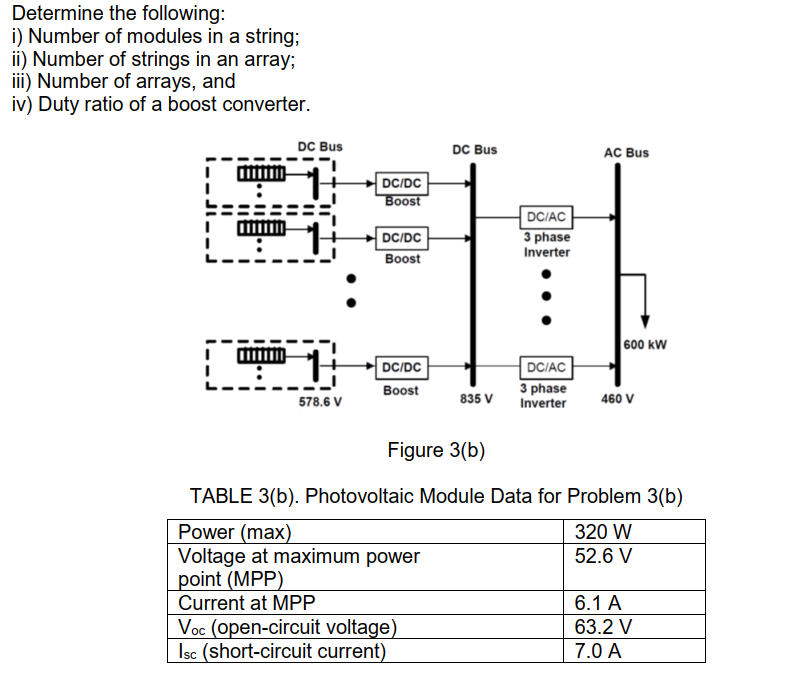

Determine the following: i) Number of modules in a string; ii) Number of strings in an array; iii) Number of arrays, and iv) Duty ratio of a boost converter. DC Bus DC Bus AC Bus DC/DC Boost DC/AC 3 phase Inverter DC/DC Boost - 600 kW 1 DC/DC Boost DCIAC 3 phase Inverter 578.6 V 835 V 460 V Figure 3(b) TABLE 3(b). Photovoltaic Module Data for Problem 3(b) Power (max) 320 W Voltage at maximum power 52.6 V point (MPP) Current at MPP 6.1 A Voc (open-circuit voltage) 63.2 V Isc (short-circuit current) 7.0 A
