design.sv,

module dff (clk, reset, d, q, qb); //write required parts here

reg q;

//write required parts here

always @(posedge clk or posedge reset) begin if (reset) begin q

testbench.sv

module test;

//write required parts here dff DFF(.clk(clk), .reset(reset), .d(d), .q(q), .qb(qb)); initial begin $dumpfile("dump.vcd"); $dumpvars(1); $display("Reset flop."); clk = 0; reset = 1; d = 1'bx; display; $display("Release reset."); d = 1; reset = 0; display;

$display("Toggle clk."); clk = 1; display; end task display; #1 $display("d:%0h, q:%0h, qb:%0h", d, q, qb); endtask

endmodule

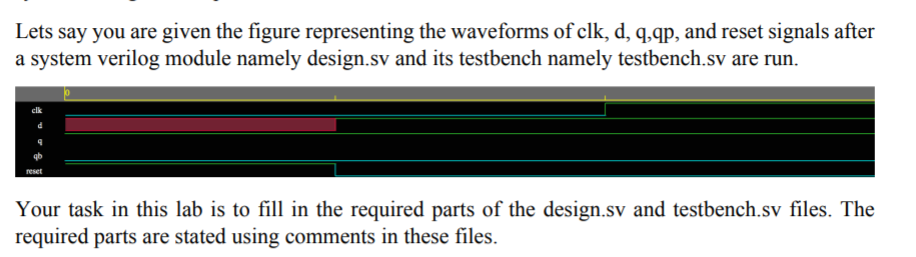

Lets say you are given the figure representing the waveforms of clk, d, q,qp, and reset signals after a system verilog module namely design.sv and its testbench namely testbench.sv are run. reset Your task in this lab is to fill in the required parts of the design.sv and testbench.sv files. The required parts are stated using comments in these files
