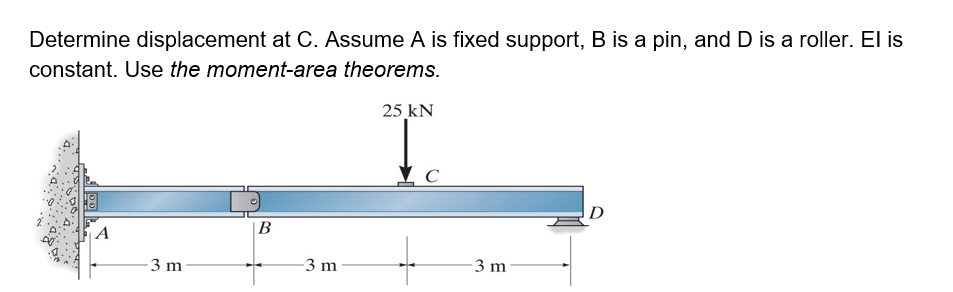

Question: Determine displacement at C . Assume A is fixed support, B is a pin, and D is a roller. El is constant. Use the moment

Determine displacement at C. Assume A is fixed support, B is a pin, and D is a roller. El is
constant. Use the moment-area theorems.
Determine displacement at C . Assume A is fixed

Step by Step Solution

There are 3 Steps involved in it
