Question

1 Approved Answer

Device Names TableA few things to keep in mind while completing this activity Do not use the browser Back button or close or reload any

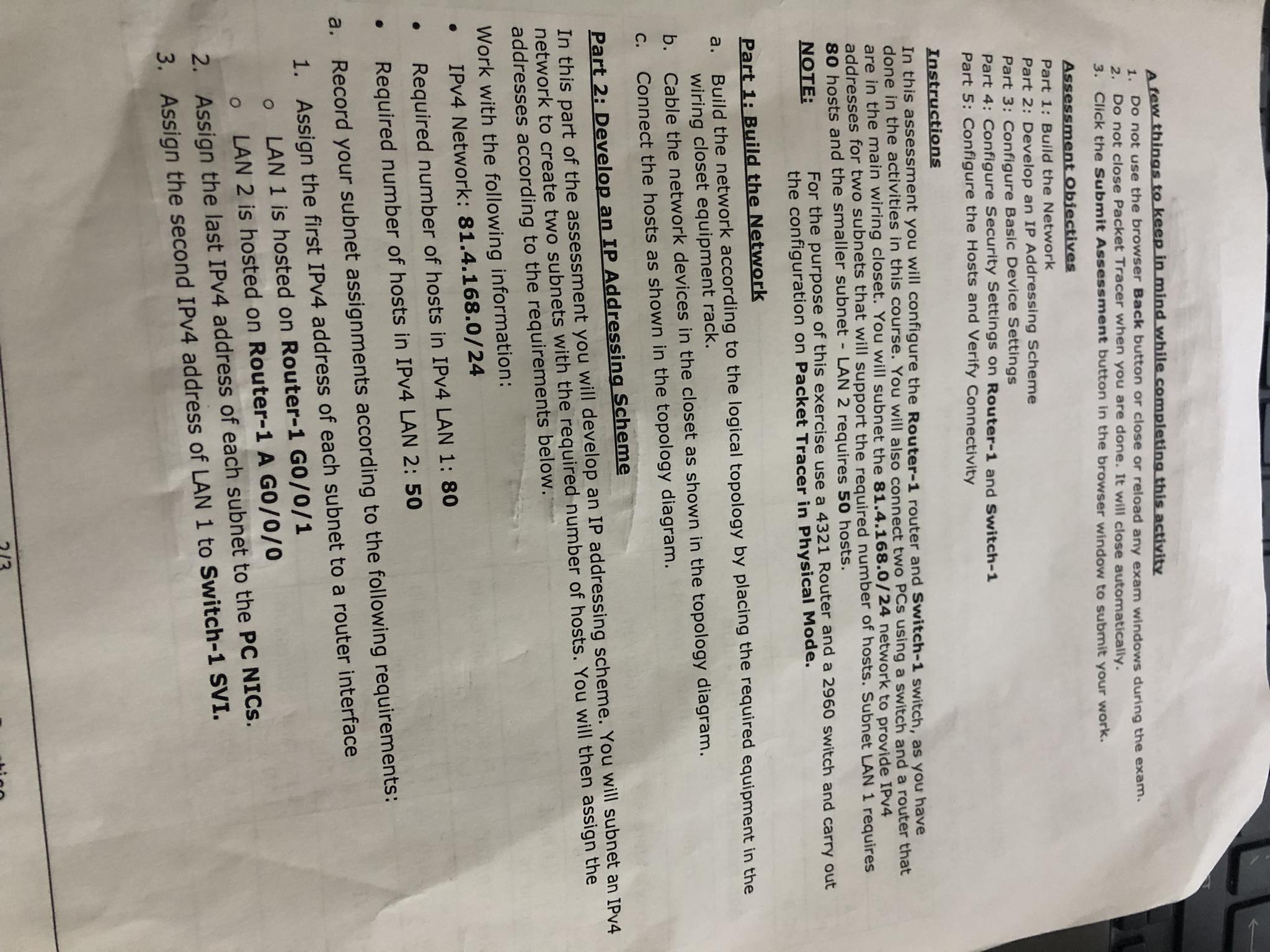

Device Names TableA few things to keep in mind while completing this activity
Do not use the browser Back button or close or reload any exam windows during the exam.
Do not close Packet Tracer when you are done. It will close automatically.
Click the Submit Assessment button in the browser window to submit your work.
Assessment Objectives
Part 1: Build the Network
Part 2: Develop an IP Addressing Scheme
Part 3: Configure Basic Device Settings
Part 4: Configure Security Settings on Router-1 and Switch-1
Part 5: Configure the Hosts and Verify Connectivity
Instructions
In this assessment you will configure the Router-1 router and Switch1 switch, as you have
done in the activities in this course. You will also connect two PCs using a switch and a router that
are in the main wiring closet. You will subnet the 81.4.168.024 network to provide IPV4
addresses for two subnets that will support the required number of hosts. Subnet LAN 1 requires
80 hosts and the smaller subnet - LAN 2 requires 50 hosts.
NOTE:
For the purpose of this exercise use a 4321 Router and a 2960 switch and carry out
the configuration on Packet Tracer in Physical Mode.
Part 1: Build the Network
a. Build the network according to the logical topology by placing the required equipment in the
wiring closet equipment rack.
b. Cable the network devices in the closet as shown in the topology diagram.
c. Connect the hosts as shown in the topology diagram.
Part 2: Develop an IP Addressing Scheme
In this part of the assessment you will develop an IP addressing scheme. You will subnet an IPv4
network to create two subnets with the required number of hosts. You will then assign the
addresses according to the requirements below.
Work with the following information:
IPV4 Network: 81.4.168.0/24
Required number of hosts in IPV4 LAN 1:80
Required number of hosts in IPV4 LAN 2: 50
a. Record your subnet assignments according to the following requirements:
Assign the first IPV4 address of each subnet to a router interface
LAN 1 is hosted on Router-1 G0/0/1
LAN 2 is hosted on Router-1 A GO/0/0
Assign the last IPV4 address of each subnet to the PC NICs.
Assign the second IPV4 address of LAN 1 to Switch-1 SVI.
You will receive one of three possible scenarios. In order to use the logical topology diagram that is provided with the instructions, use the device names in the Device Names Table.
\table[[\table[[Topology Diagram],[Name]],Scenario Name 1,Scenario Name 2,Scenario Name 3],[R1,Router-1,,],[S1,Switch-1,,],[PC-A,PC-1,,],[PC-B,PC-2,,]]
Addressing Requirements Table
ITN Packet Tracer PTSA Assessment Practice
