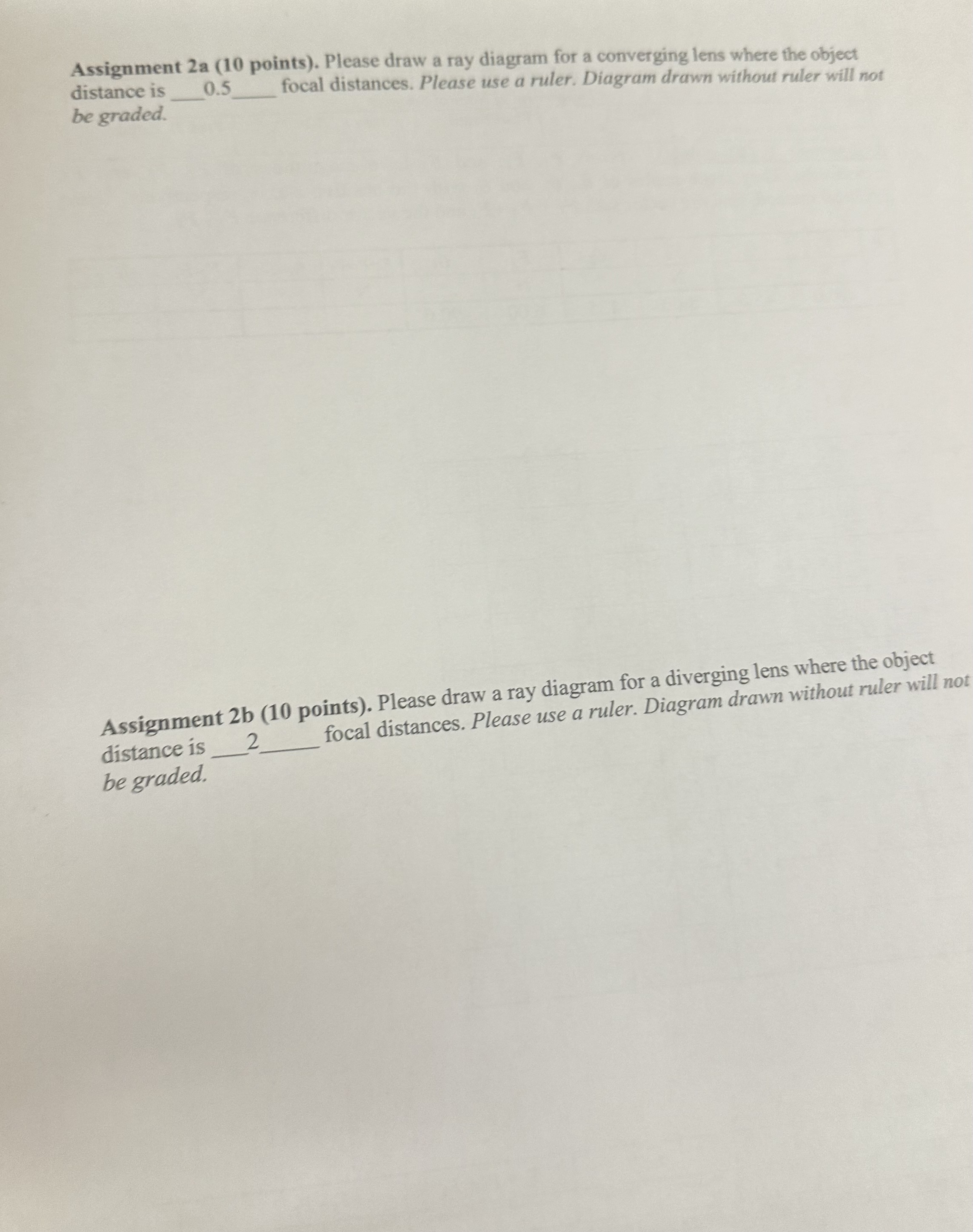

distance is Assignment 2a (10 points). Please draw a ray diagram for a converging lens where the object be graded. 0.5 focal distances. Please use

image text in transcribedimage text in transcribed
image text in transcribedimage text in transcribed

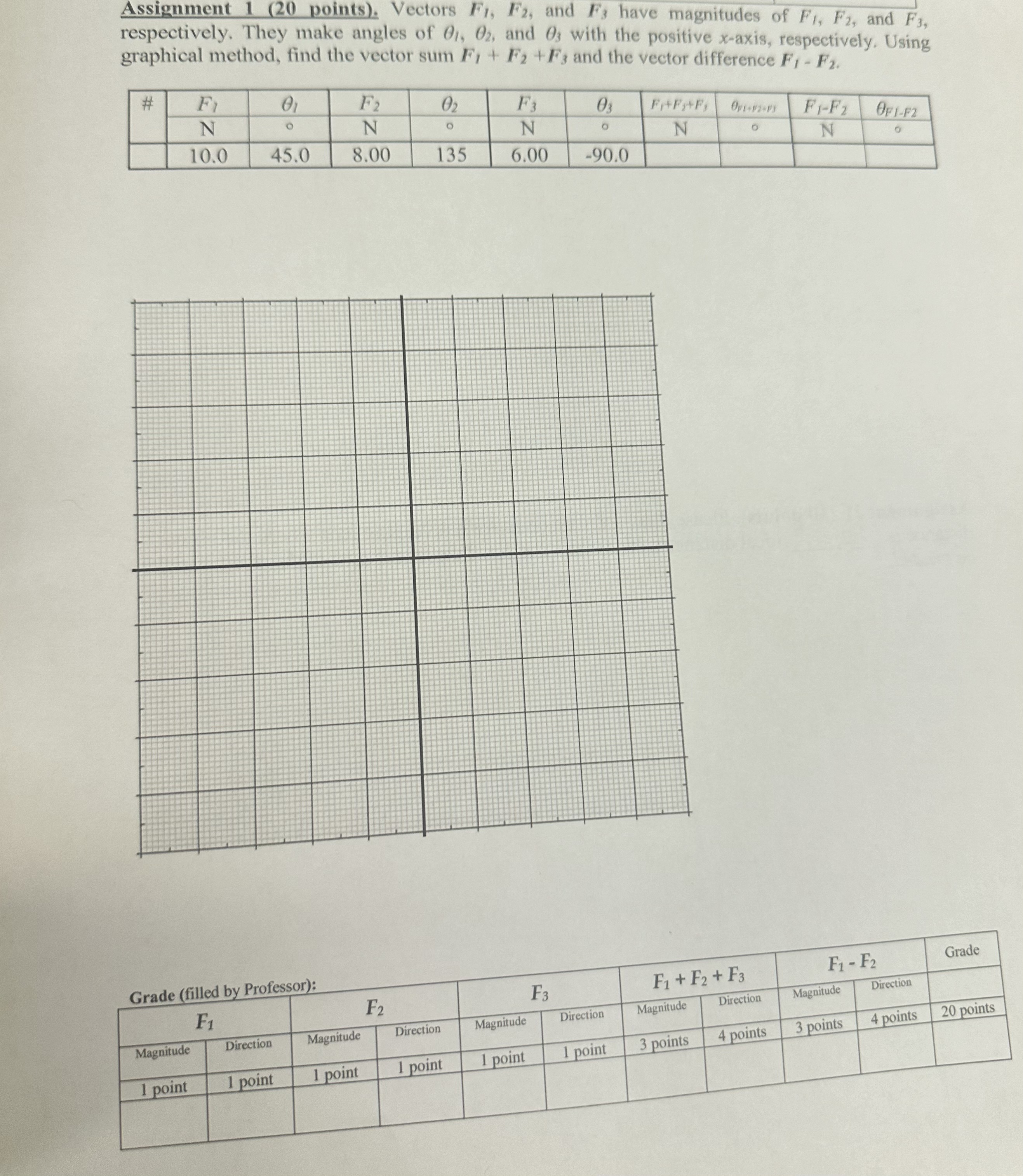

distance is Assignment 2a (10 points). Please draw a ray diagram for a converging lens where the object be graded. 0.5 focal distances. Please use a ruler. Diagram drawn without ruler will not Assignment 2b (10 points). Please draw a ray diagram for a diverging lens where the object distance is 2 focal distances. Please use a ruler. Diagram drawn without ruler will not be graded.Assignment 1 (20 points). Vectors F1, F2, and F3 have magnitudes of F1, F2, and F3, respectively. They make angles of 01, 02, and 0 with the positive x-axis, respectively. Using graphical method, find the vector sum F, + F2 +F3 and the vector difference Fi - F2. # F1 N F2 02 N F3 O 03 10.0 N 45.0 N FI-F2 0F1-F2 8.00 135 6.00 -90.0 N Grade (filled by Professor): F1 + F2 + F3 F1 - F2 Grade F1 F2 F3 Magnitude Direction Magnitude Direction Magnitude Direction Magnitude Direction Magnitude Direction 3 points I point 1 point point 1 point I point point 4 points 3 points 4 points 20 points

Step by Step Solution

There are 3 Steps involved in it

Step: 1
