Draw this diagram using ERDPlus, but instead of using Chens notation, use both the (min, max) and the crows foot notation. Note that the structural

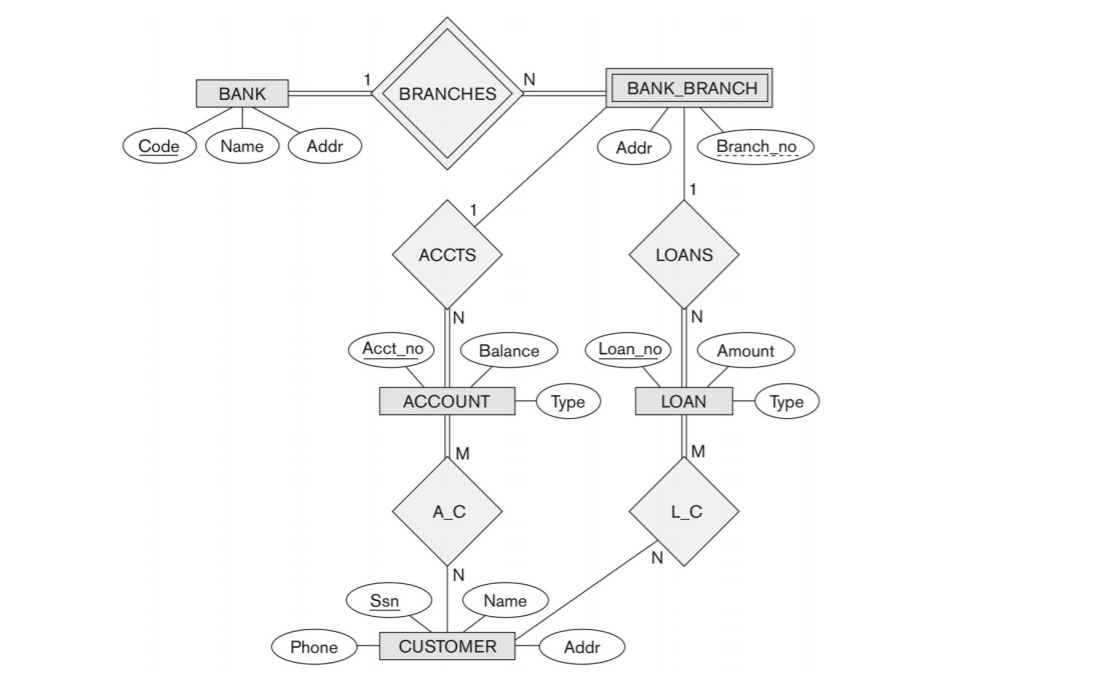

image text in transcribedDraw this diagram using ERDPlus, but instead of using Chens notation, use both the (min, max) and the crows foot notation. Note that the structural constraints must correspond precisely to those in the diagram above, except they should also reflect the following refinement. Every customer must have at least one account but is restricted to at most two loans at a time. A bank branch cannot have more than 1,000 loans.
