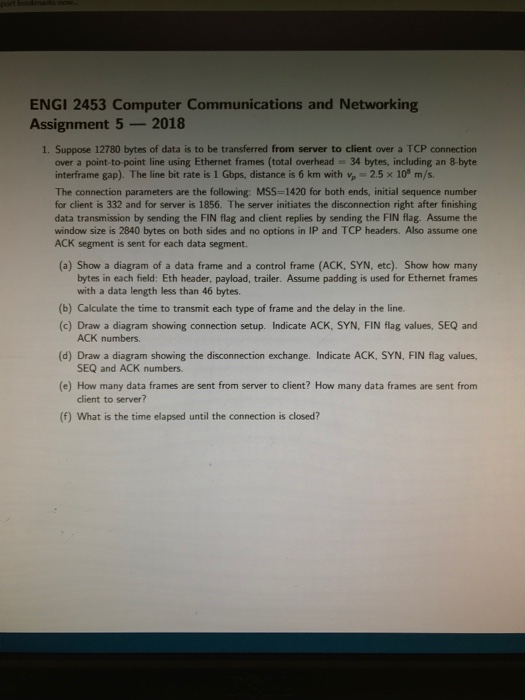

ENGI 2453 Computer Communications and Networking Assignment 5 2018 1. Suppose 12780 bytes of data is to be transferred from server to client over a TCP connection over a point-to-point line using Ethernet frames (total overhead 34 bytes, including an 8-byte interframe gap). The line bit rate is 1 Gbps, distance is 6 km with v,-2.5x 108 m/s. The connection parameters are the following: MSS-1420 for both ends, initial sequence number for client is 332 and for server is 1856. The server initiates the disconnection right after finishing data transmission by sending the FIN flag and client replies by sending the FIN flag. Assume the window size is 2840 bytes on both sides and no options in IP and TCP headers. Also assume one ACK segment is sent for each data segment. (a) Show a diagram of a data frame and a control frame (ACK, SYN, etc). Show how many bytes in each field: Eth header, payload, trailer. Assume padding is used for Ethernet frames with a data length less than 46 bytes. (b) Calculate the time to transmit each type of frame and the delay in the line. (c) Draw a diagram showing connection setup. Indicate ACK, SYN, FIN flag values, SEQ and (d) Draw a diagram showing the disconnection exchange. Indicate ACK, SYN, FIN flag values, (e) How many data frames are sent from server to client? How many data frames are sent from (f) What is the time elapsed until the connection is closed? ACK numbers SEQ and ACK numbers. client to server
