exercise A combinational circuit accepts as input an unsigned number of 4 bits (X3X2X1X0) and produces at the output the result of the arithmetic operation

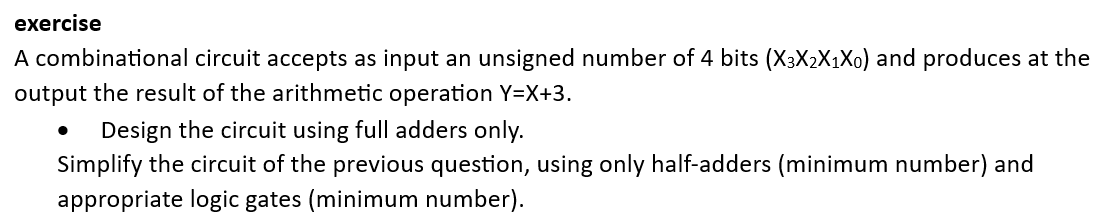

image text in transcribed

exercise A combinational circuit accepts as input an unsigned number of 4 bits (X3X2X1X0) and produces at the output the result of the arithmetic operation Y=X+3. - Design the circuit using full adders only. Simplify the circuit of the previous question, using only half-adders (minimum number) and appropriate logic gates (minimum number)
