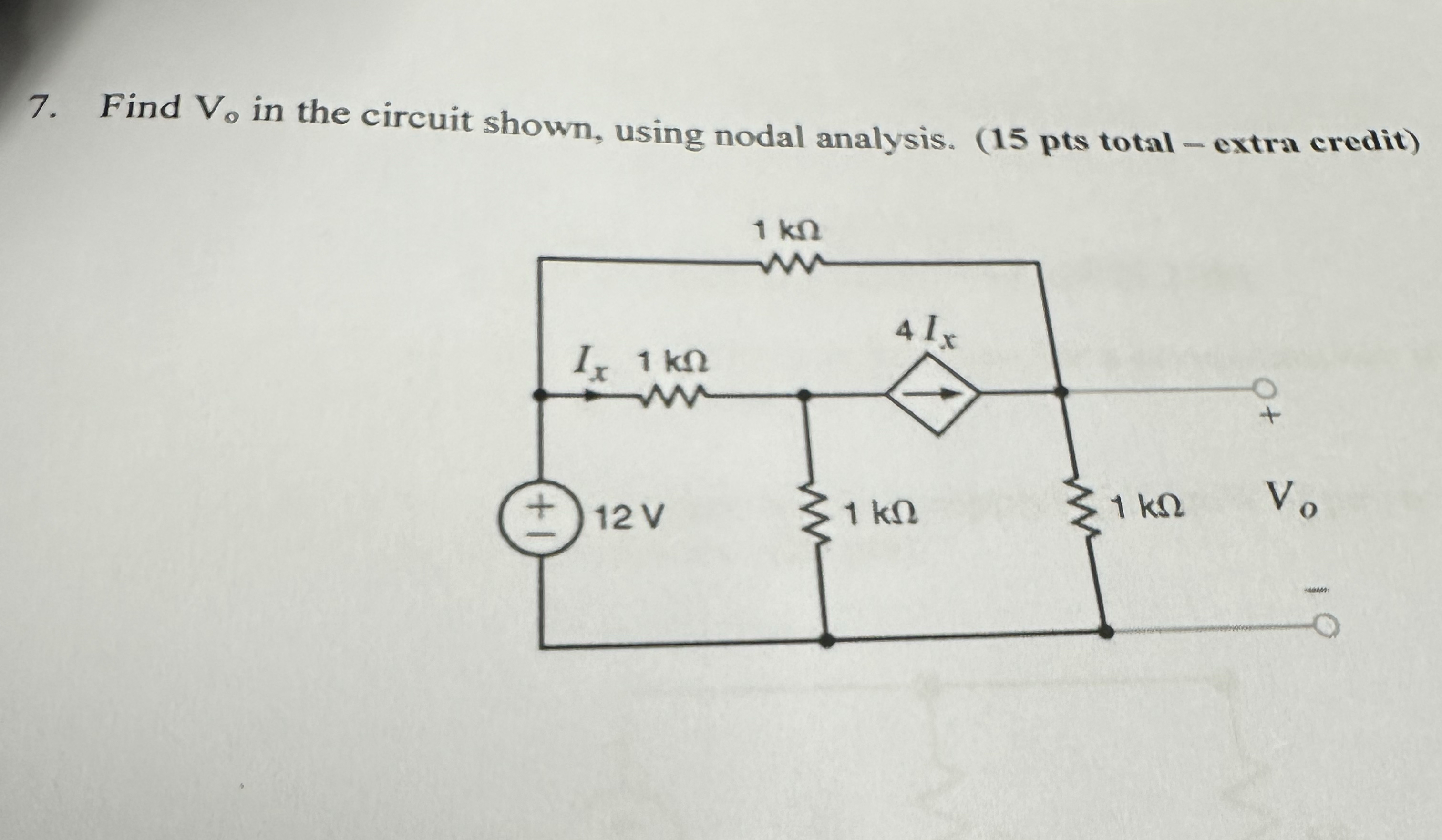

Question: Find V o . in the circuit shown, using nodal analysis. ( 1 5 pts total - extra credit )

Find Vo. in the circuit shown, using nodal analysis. (15 pts total-extra credit)
Find V o . in the circuit shown, using nodal

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
