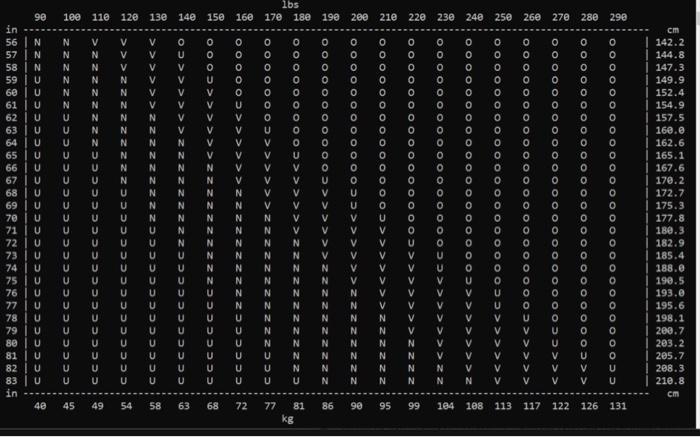

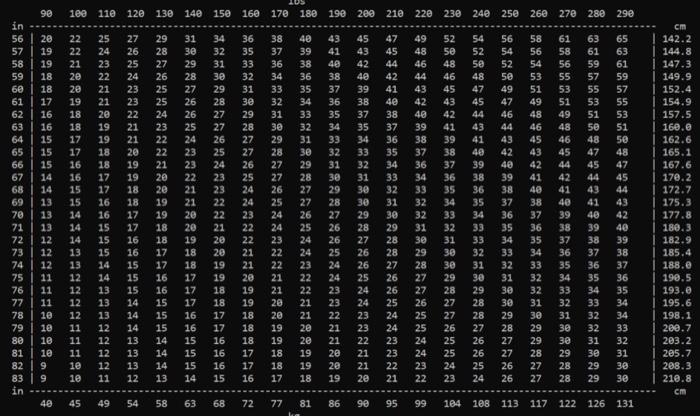

FINISH THE LAB BY WRITING A CODE THAT WILL GENERATE BOTH BMI TABLES

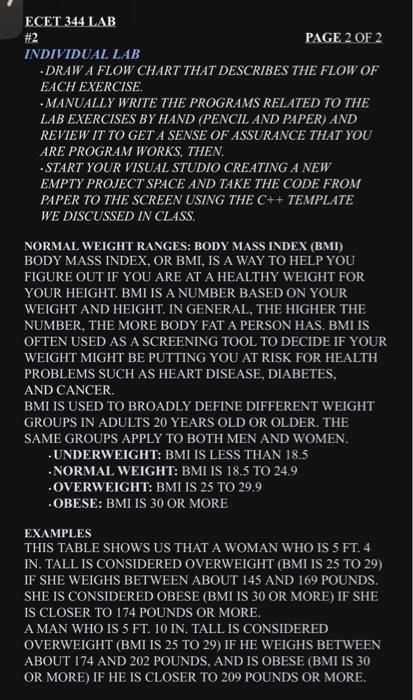

ECET 344LAB \#2 PAGE 2 OF 2 INDIVIDUAL LAB - DRAW A FLOW CHART THAT DESCRIBES THE FLOW OF EACH EXERCISE. - MANUALLY WRITE THE PROGRAMS RELATED TO THE LAB EXERCISES BY HAND (PENCIL AND PAPER) AND REVIEW IT TO GET A SENSE OF ASSURANCE THAT YOU ARE PROGRAM WORKS. THEN. - START YOUR VISUAL STUDIO CREATING A NEW EMPTY PROJECT SPACE AND TAKE THE CODE FROM PAPER TO THE SCREEN USING THE C++ TEMPLATE WE DISCUSSED IN CLASS. NORMAL WEIGHT RANGES: BODY MASS INDEX (BMI) BODY MASS INDEX, OR BMI, IS A WAY TO HELP YOU FIGURE OUT IF YOU ARE AT A HEALTHY WEIGHT FOR YOUR HEIGHT. BMI IS A NUMBER BASED ON YOUR WEIGHT AND HEIGHT. IN GENERAL, THE HIGHER THE NUMBER, THE MORE BODY FAT A PERSON HAS. BMI IS OFTEN USED AS A SCREENING TOOL TO DECIDE IF YOUR WEIGHT MIGHT BE PUTTING YOU AT RISK FOR HEALTH PROBLEMS SUCH AS HEART DISEASE, DIABETES, AND CANCER. BMI IS USED TO BROADLY DEFINE DIFFERENT WEIGHT GROUPS IN ADULTS 20 YEARS OLD OR OLDER. THE SAME GROUPS APPLY TO BOTH MEN AND WOMEN. . UNDERWEIGHT: BMI IS LESS THAN 18.5 - NORMAL WEIGHT: BMI IS 18.5 TO 24.9 -OVERWEIGHT: BMI IS 25 TO 29.9 - OBESE: BMI IS 30 OR MORE EXAMPLES THIS TABLE SHOWS US THAT A WOMAN WHO IS 5 FT. 4 IN. TALL IS CONSIDERED OVERWEIGHT (BMI IS 25 TO 29) IF SHE WEIGHS BETWEEN ABOUT 145 AND 169 POUNDS. SHE IS CONSIDERED OBESE (BMI IS 30 OR MORE) IF SHE IS CLOSER TO 174 POUNDS OR MORE. A MAN WHO IS 5FT. 10 IN. TALL IS CONSIDERED OVERWEIGHT (BMI IS 25 TO 29) IF HE WEIGHS BETWEEN ABOUT 174 AND 202 POUNDS, AND IS OBESE (BMI IS 30 OR MORE) IF HE IS CLOSER TO 209 POUNDS OR MORE. LAB EXERCISE ONE: THE ACTUAL FORMULA TO DETERMINE BMI USES METRIC SYSTEM MEASUREMENTS: WEIGHT IN KILOGRAMS (KG) DIVIDED BY HEIGHT IN METERS, SQUARED (M2) : WHEN USING POUNDS AND INCHES, THE FORMULA NEEDS TO BE ALTERED SLIGHTLY. MULTIPLY YOUR WEIGHT IN POUNDS BY 703. DIVIDE THAT BY YOUR HEIGHT IN INCHES, SQUARED: FOR EXAMPLE, IF YOU WEIGH 120 POUNDS AND ARE 5 FT. 3 IN. (63 IN.) TALL: THIS IS WELL WITHIN THE HEALTHY WEIGHT RANGE. GENERATE THE FOLLOWING DATA TABLE THAT WILL COVER ALL BMI CALCULATION COVERING ADULTS IN THE WEIGHT RANE OF (90290 LB) AND HEIGH (5683 INCHES). LAB EXERCISE TWO: THE PROGRAM SHOULD DECIDE IF THE BMI CALCULATED IS: - UNDERWEIGHT: BMI IS LESS THAN 18.5 (U) - NORMAL WEIGHT: BMI IS 18.5 TO 24.9 (N) - OVERWEIGHT: BMI IS 25 TO 29.9 (V) - OBESE: BMI IS 30 OR MORE (O)
