Finite State Machine 3 . ( a ) Draw the state diagram for a FSM with states xmod 4 , and the transitions are x

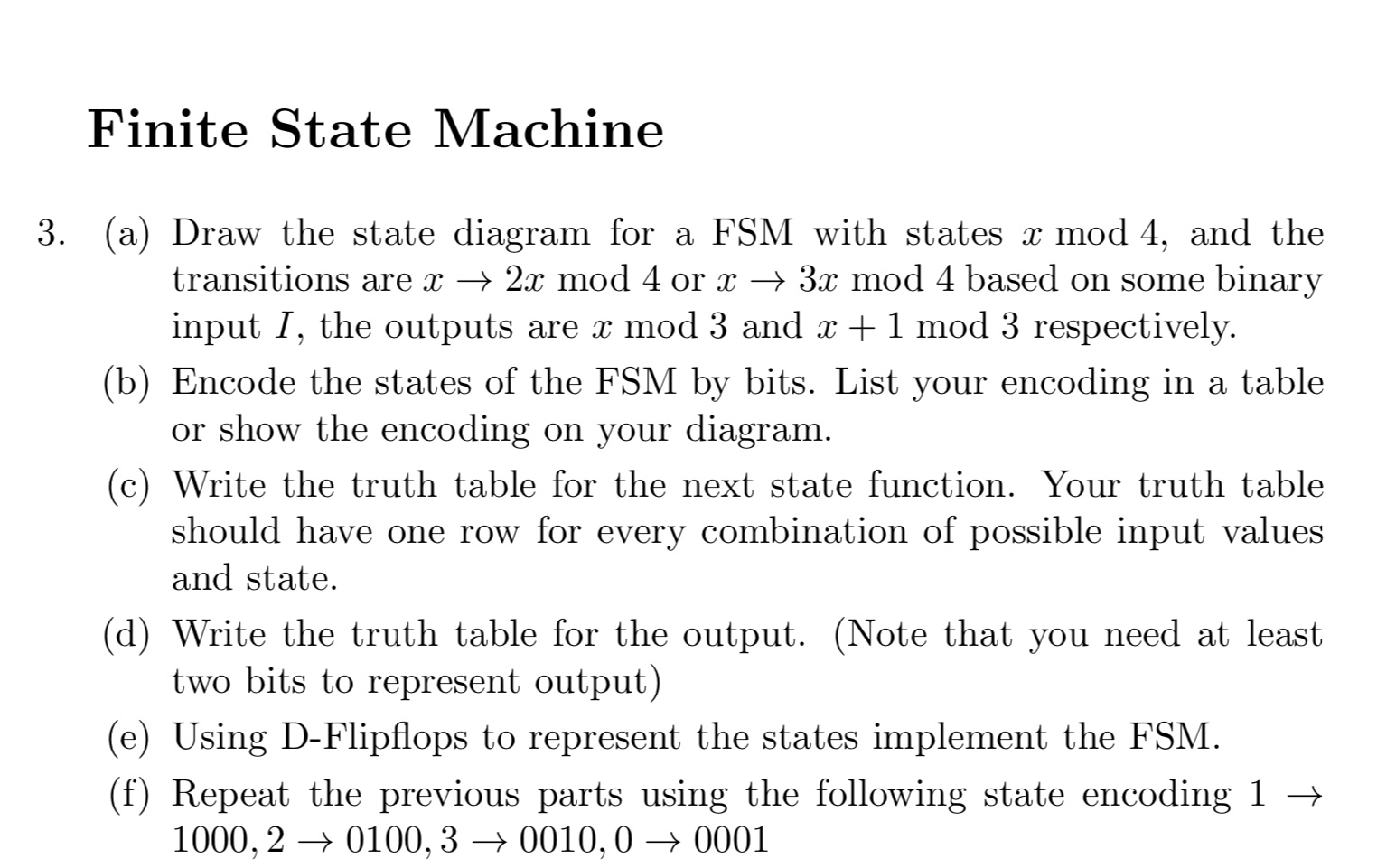

Finite State Machine
3.(a) Draw the state diagram for a FSM with states xmod4, and the transitions are x2xmod4 or x3xmod4 based on some binary input I, the outputs are xmod3 and x+1mod3 respectively.
(b) Encode the states of the FSM by bits. List your encoding in a table or show the encoding on your diagram.
(c) Write the truth table for the next state function. Your truth table should have one row for every combination of possible input values and state.
(d) Write the truth table for the output. (Note that you need at least two bits to represent output)
(e) Using D-Flipflops to represent the states implement the FSM.
(f) Repeat the previous parts using the following state encoding 11000,20100,30010,00001
