For the following problem, modify the program to read a text file (input.txt) that contains a number of lines and a circle (format and example below)

text file format:

N (int: number of lines up to 10)

X1a Y1a X1b Y1b (int: endpoints of line 1)

X2a Y2a X2b Y2b (int: endpoints of line 2)

XNa YNa XNb YNb (int: endpoints of line N)

Xc Yc R (int: Center point co-ordinates and Radius of circle)

example input.txt

8 14 14 10 26 20 50 50 20 1 40 30 30 50 4 50 24 45 40 60 40 10 70 40 18 70 12 70 80 30 20 60 45 28 28 15

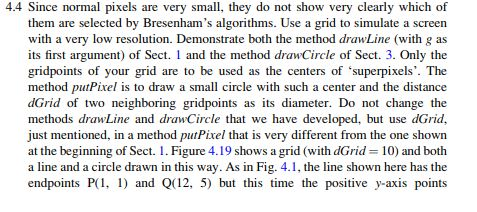

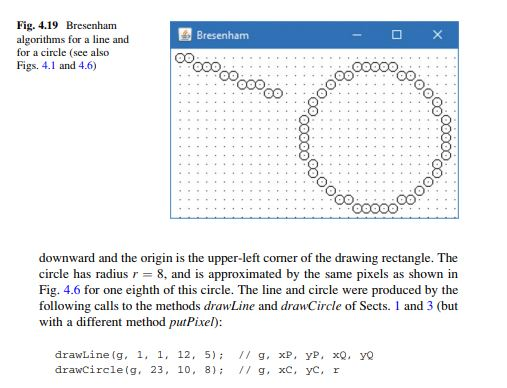

4.4 Since normal pixels are very small, they do not show very clearly which of them are selected by Bresenham's algorithms. Use a grid to simulate a screen with a very low resolution. Demonstrate both the method drawLine (with g as its first argument) of Sect. and the method drawCircle of Sect. 3. Only the gridpoints of your grid are to be used as the centers of superpixels'. The method putPixel is to draw a small circle with such a center and the distance dGrid of two neighboring gridpoints as its diameter. Do not change the methods drawLine and drawCircle that we have developed, but use dGrid, just mentioned, in a method putPixel that is very different from the one shown at the beginning of Sect. 1. Figure 4.19 shows a grid (with dGrid 10) and both a line and a circle drawn in this way. As in Fig. 4.1, the line shown here has the endpoints P 1) and Q(12, 5) but this time the positive y-axis points Fig. 4.19 Bresenham algorithms for a line and for a circle (see also Figs. 4.1 and 4.6) downward and the origin is the upper-left corner of the drawing rectangle. The circle has radius r-8, and is approximated by the same pixels as shown in Fig. 4.6 for one eighth of this circle. The line and circle were produced by the following calls to the methods drawLine and drawCircle of Sects. and 3 (but with a different method putPixel) drawLine(g, 1, 1. 12, 5) I/ g, xP, yP, xQ, yo drawCircle ( g, 23, 10, 8); // g, xc, , r
