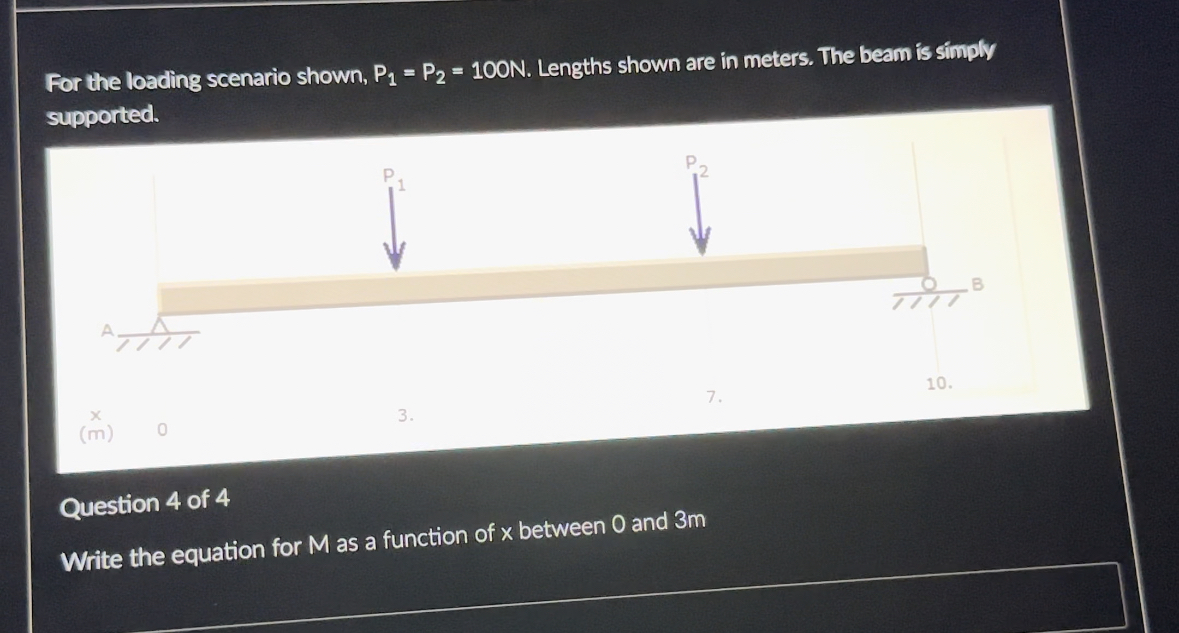

For the loading scenario shown, P = P2 = 100N. Lengths shown are in meters. The beam is simply supported. A (m) 0 3.

image text in transcribedimage text in transcribed

For the loading scenario shown, P = P2 = 100N. Lengths shown are in meters. The beam is simply supported. A (m) 0 3. Question 4 of 4 Write the equation for M as a function of x between 0 and 3m 7. 10. B For the loading scenario shown, P = P2 = 100N. Lengths shown are in meters. The beam is simply supported. A X (m) 0 3. 10. 7. B Question 1 of 4 Determine the maximum shear in the beam and the location, in order (choose any and all that apply)

Step by Step Solution
