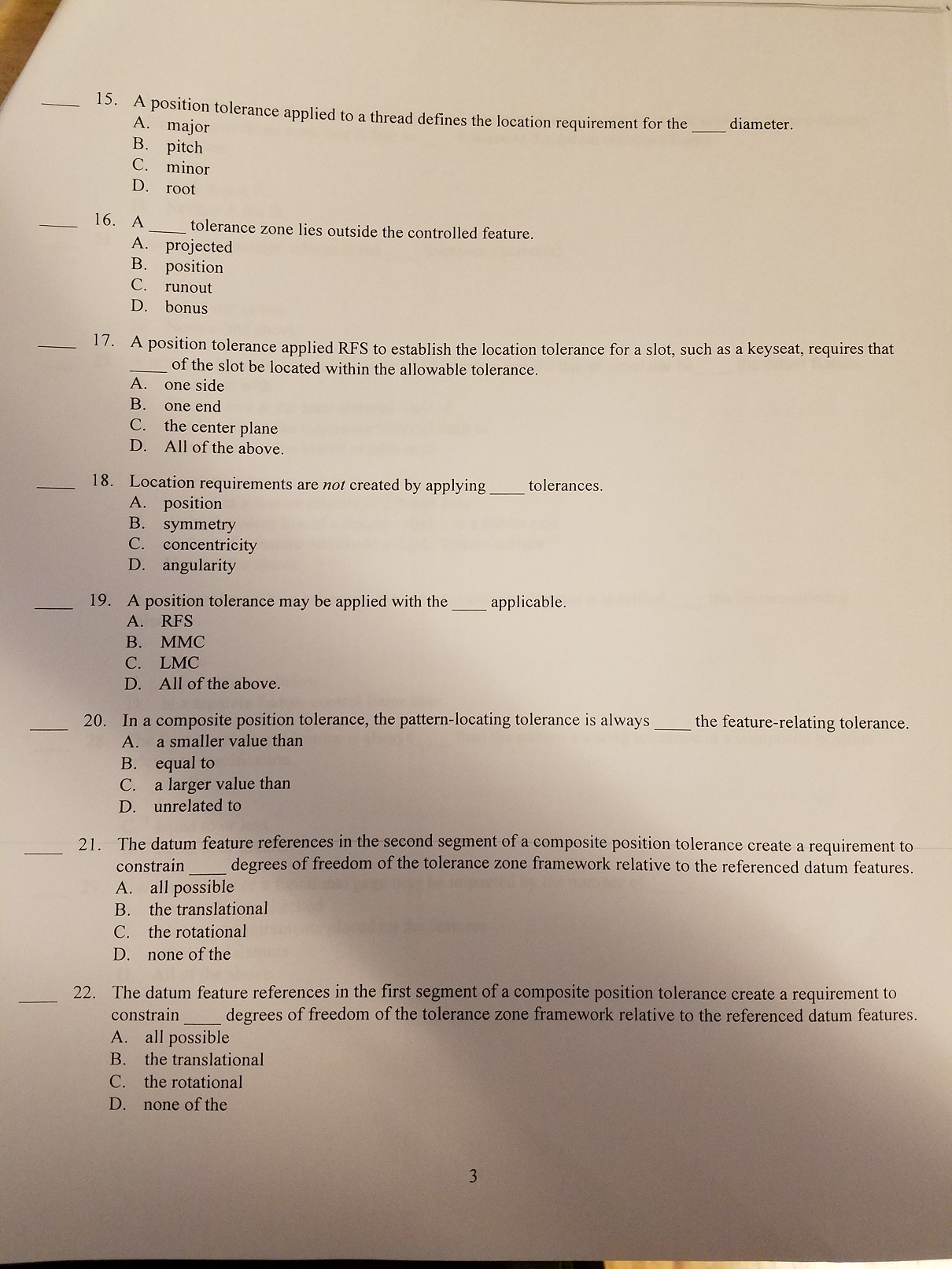

15. A position tolerance applied to a thread defines the location requirement for the diameter A. major B. pitch C. minor D. root 16. A--, tolerance zone lies outside the controlled feature. A. projected B. position C. runout D. bonus 17. A position tolerance applied RFS to establish the location tolerance for a slot, such as a keyseat, requires that of the slot be located within the allowable tolerance A. one side B. one end C. the center plane D. All of the above. 18. Location requirements are not created by applying- A. position B. symmetry C. concentricity D. angularity tolerances 19. A position tolerance may be applied with theapplicable. A. RFS B. MMOC C. LMC D. All of the above. 20. In a composite position tolerance, the pattern-locating tolerance is always the feature-relating tolerance. A. a smaller value than B. equal to C. a larger value tharn D. unrelated to The datum feature references in the second segment of a composite position tolerance create a requirement to constrain A. all possible B. the translational C. the rotational D. none of the 21. degrees of freedom of the tolerance zone framework relative to the referenced datum features The datum feature references in the first segment of a composite position tolerance create a requirement to constrain degrees of freedom of the tolerance zone framework relative to the referenced datum features. A. all possible B. the translational C. the rotational D. none of the 22
