Given: Consider the truss shown below with the loading on joints B, I and H. Find: Determine the load carried members 1, 2 and 3.

image text in transcribed
image text in transcribed

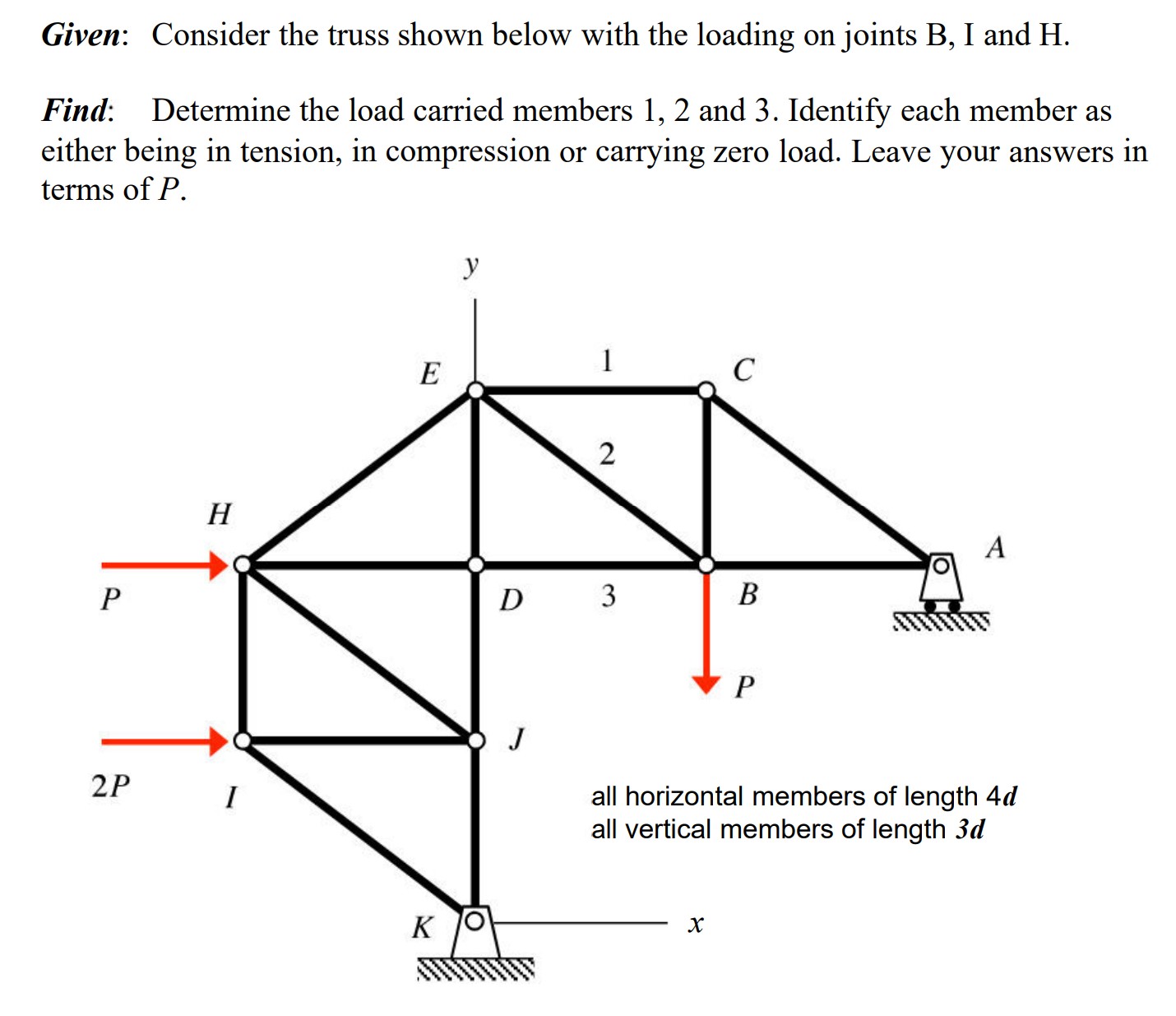

Given: Consider the truss shown below with the loading on joints B, I and H. Find: Determine the load carried members 1, 2 and 3. Identify each member as either being in tension, in compression or carrying zero load. Leave your answers in terms of P. all horizontal members of length 4d all vertical members of length 3d
