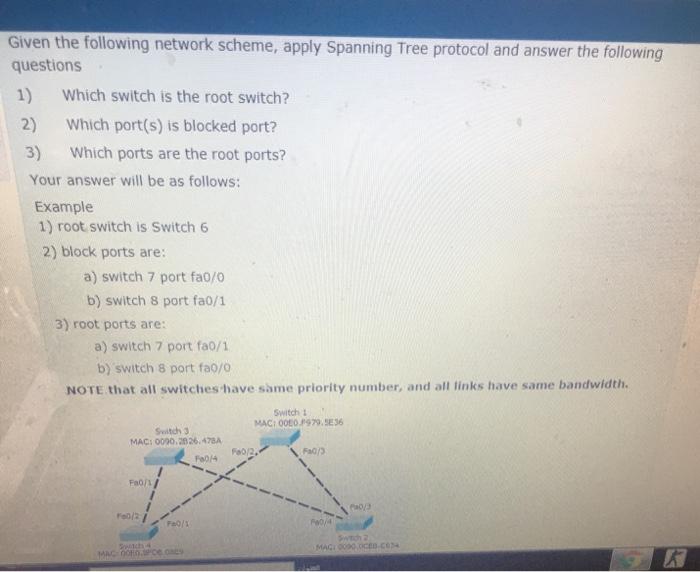

Given the following network scheme, apply Spanning Tree protocol and answer the following questions 1) Which switch is the root switch? 2) Which port(s) is blocked port? 3) Which ports are the root ports? Your answer will be as follows: Example 1) root switch is Switch 6 2) block ports are: a) switch 7 port fao/0 b) switch 8 port fa0/1 3) root ports are: a) switch 7 port fao/1 b) switch 8 port fao/ NOTE that all switches have same priority number, and all links have same bandwidth. switch MAC OOO.979.5 36 Switch MAC: 0090.26 26.478A Paola Fa2 FR/ For 0127 0/4 MAGIC CED.COM * Given the following network scheme, apply Spanning Tree protocol and answer the following questions 1) Which switch is the root switch? 2) Which port(s) is blocked port? 3) Which ports are the root ports? Your answer will be as follows: Example 1) root switch is Switch 6 2) block ports are: a) switch 7 port fao/0 b) switch 8 port fa0/1 3) root ports are: a) switch 7 port fao/1 b) switch 8 port fao/ NOTE that all switches have same priority number, and all links have same bandwidth. switch MAC OOO.979.5 36 Switch MAC: 0090.26 26.478A Paola Fa2 FR/ For 0127 0/4 MAGIC CED.COM *
