Help me please Learning Task 14:Kirchhoff's Law Given the circuit below with 3A of current running through the 4 Q resistor as indicated in the

Help me please

image text in transcribed

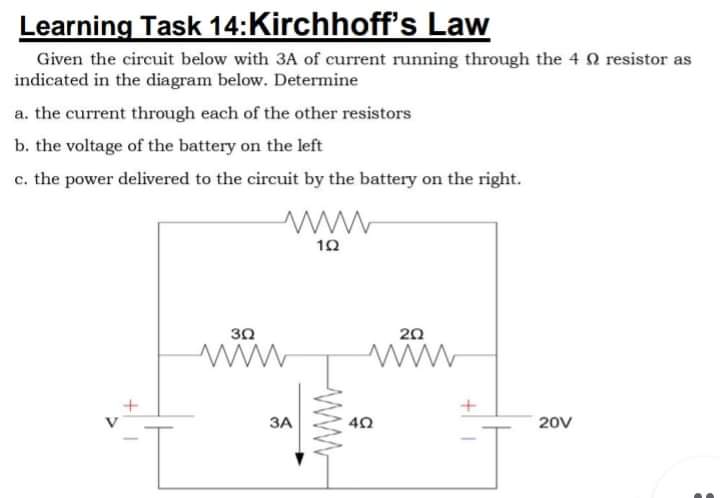

Learning Task 14:Kirchhoff's Law Given the circuit below with 3A of current running through the 4 Q resistor as indicated in the diagram below. Determine a. the current through each of the other resistors b. the voltage of the battery on the left c. the power delivered to the circuit by the battery on the right. 10 30 20 + V 3A WWW 40 20V

Step by Step Solution

There are 3 Steps involved in it

Step: 1
