How do I solve this question? There will be another question later building on this one. Be sure to save your computations for referencing later.

image text in transcribedimage text in transcribed

How do I solve this question?

image text in transcribedimage text in transcribed

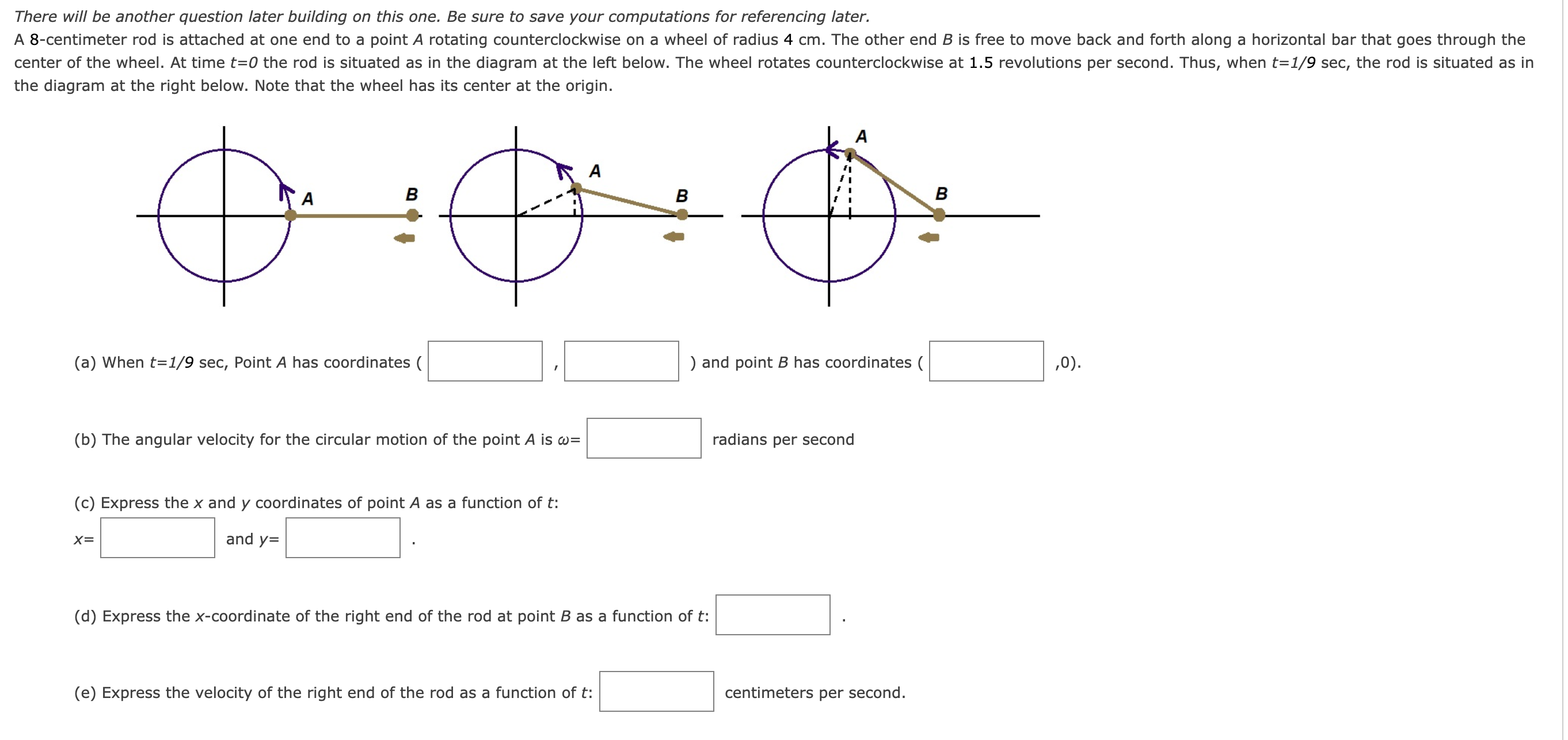

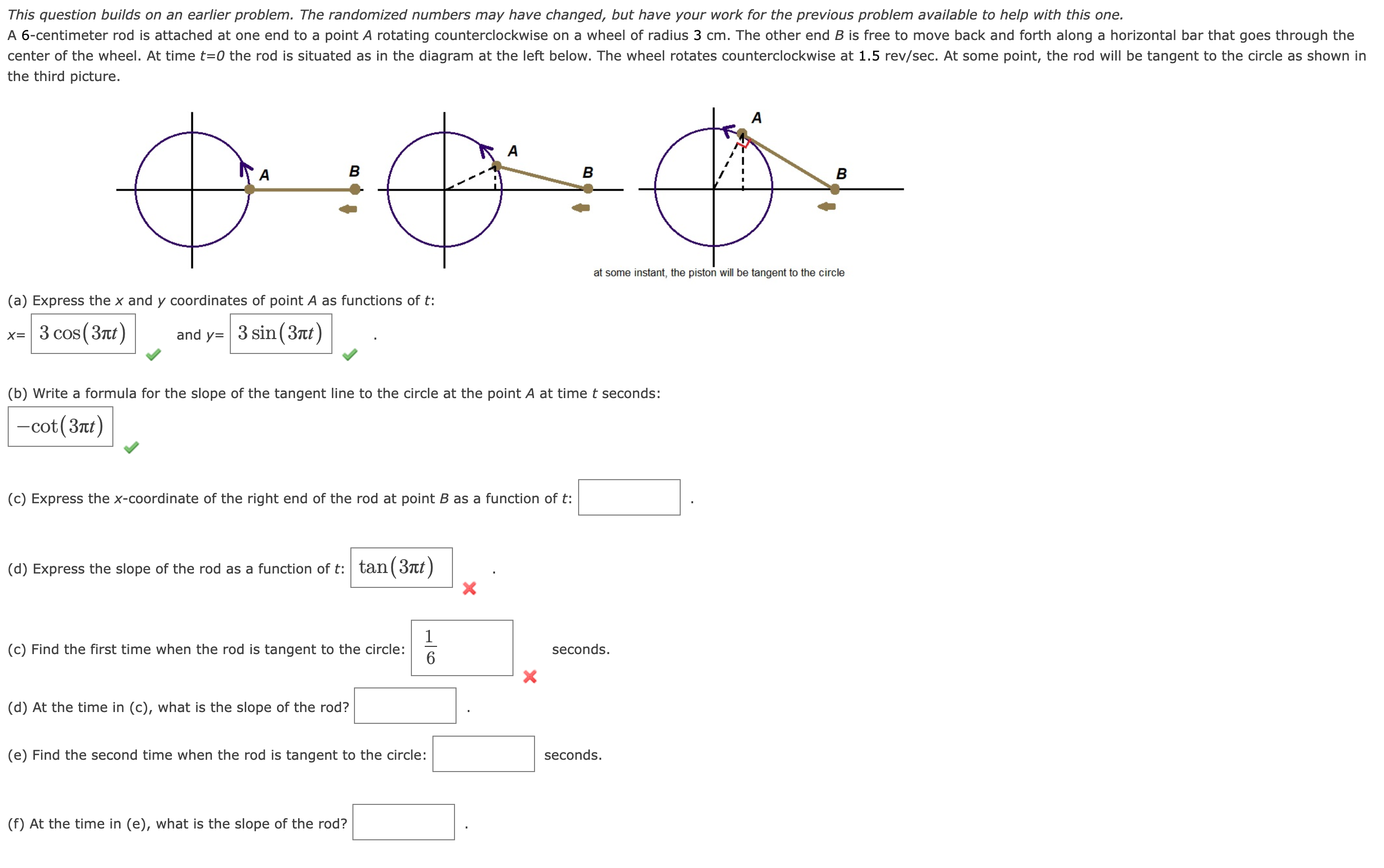

There will be another question later building on this one. Be sure to save your computations for referencing later. A 8-centimeter rod is attached at one end to a point A rotating counterclockwise on a wheel of radius 4 cm. The other end B is free to move back and forth along a horizontal bar that goes through the center of the wheel. At time t=0 the rod is situated as in the diagram at the left below. The wheel rotates counterclockwise at 1.5 revolutions per second. Thus, when t=1/9 sec, the rod is situated as in the diagram at the right below. Note that the wheel has its center at the origin. (a) When t=1/9 sec, Point A has coordinates ( , ) and point B has coordinates ( ,0). (b) The angular velocity for the circular motion of the point A is m: radians per second (c) Express the x and y coordinates of point A as a function oft: X= and y: (d) Express the X-coordinate of the right end of the rod at point B as a function of t: (e) Express the velocity of the right end of the rod as a function of t: centimeters per second. This question builds on an earlier problem. The randomized numbers may have changed, but have your work for the previous problem available to help with this one. A 6-centimeter rod is attached at one end to a point A rotating counterclockwise on a wheel of radius 3 cm. The other end B is free to move back and forth along a horizontal bar that goes through the center of the wheel. At time t=0 the rod is situated as in the diagram at the left below. The wheel rotates counterclockwise at 1.5 rev/sec. At some point, the rod will be tangent to the circle as shown in the third picture. ai some Instant. the piston will be tangent to the circle (a) Express the x and y coordinates of point A as functions oft: x: 3 cos(31rt) and y: 3 sin(31tt) w / (b) Write a formula for the slope of the tangent line to the circle at the pointA at time t seconds: cot(3nt) V/ (c) Express the x-coordinate of the right end of the rod at point B as a function of t: (d) Express the slope of the rod as a function oft: tan(31tt) X 1 (c) Find the rst time when the rod is tangent to the circle: E seconds. X (d) At the time in (c), what is the slope of the rod? (e) Find the second time when the rod is tangent to the circ e: seconds. (f) At the time in (e), what is the slope of the rod
