HW09: Puzzle Force Vectors. There are two objects. One object is on the ground and the other is on top of that one. 1.

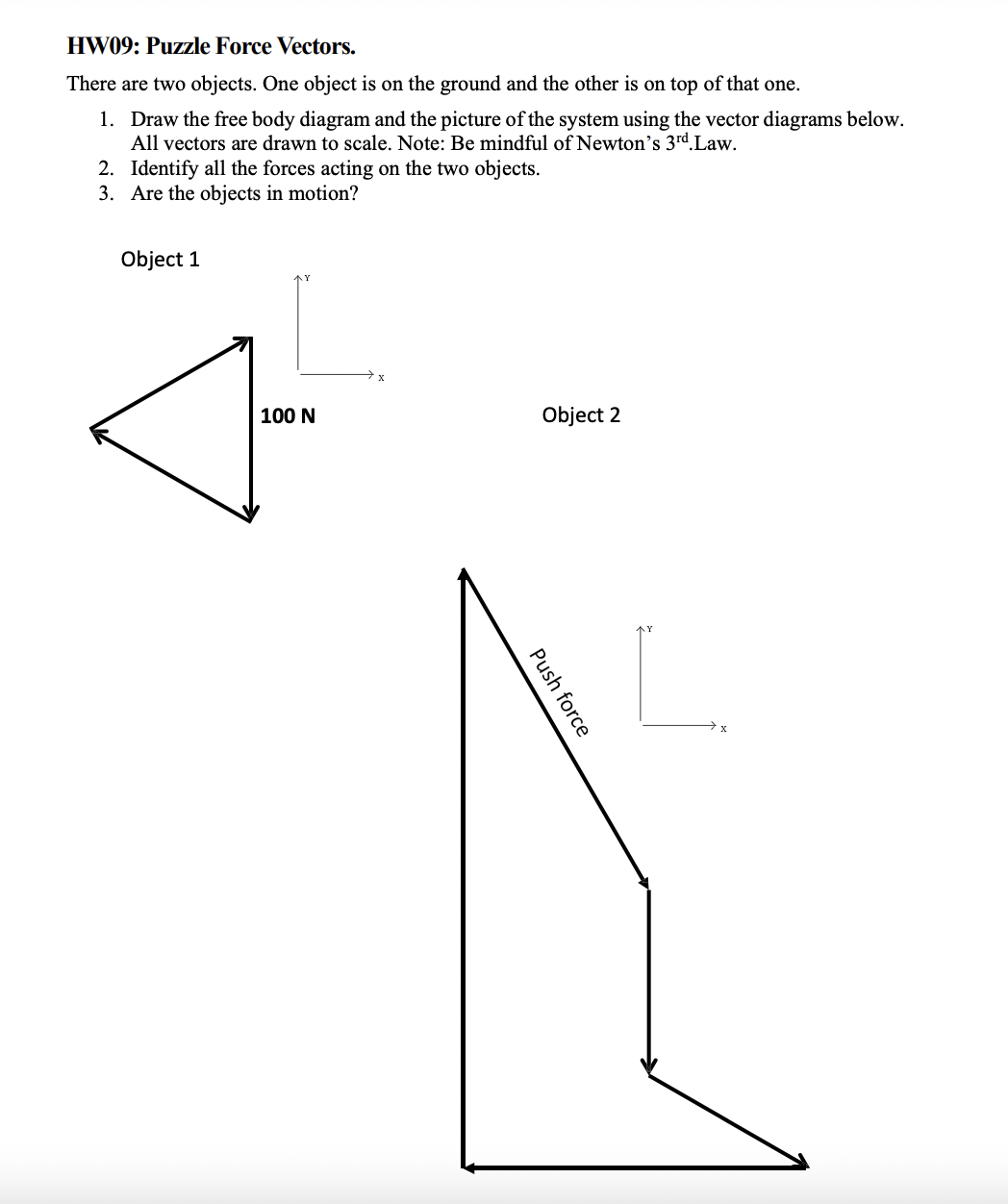

HW09: Puzzle Force Vectors. There are two objects. One object is on the ground and the other is on top of that one. 1. Draw the free body diagram and the picture of the system using the vector diagrams below. All vectors are drawn to scale. Note: Be mindful of Newton's 3rd.Law. 2. Identify all the forces acting on the two objects. 3. Are the objects in motion? Object 1 100 N Object 2 Push force
Step by Step Solution
There are 3 Steps involved in it
Step: 1
