I am lost on the work on how to get this answers. I need help with understanding these three and I will be good! please

image text in transcribed

I am lost on the work on how to get this answers. I need help with understanding these three and I will be good! please help me out!! Thank you!

13. R and 2R problem. please label anything and why you get the numbers

image text in transcribedimage text in transcribedimage text in transcribed

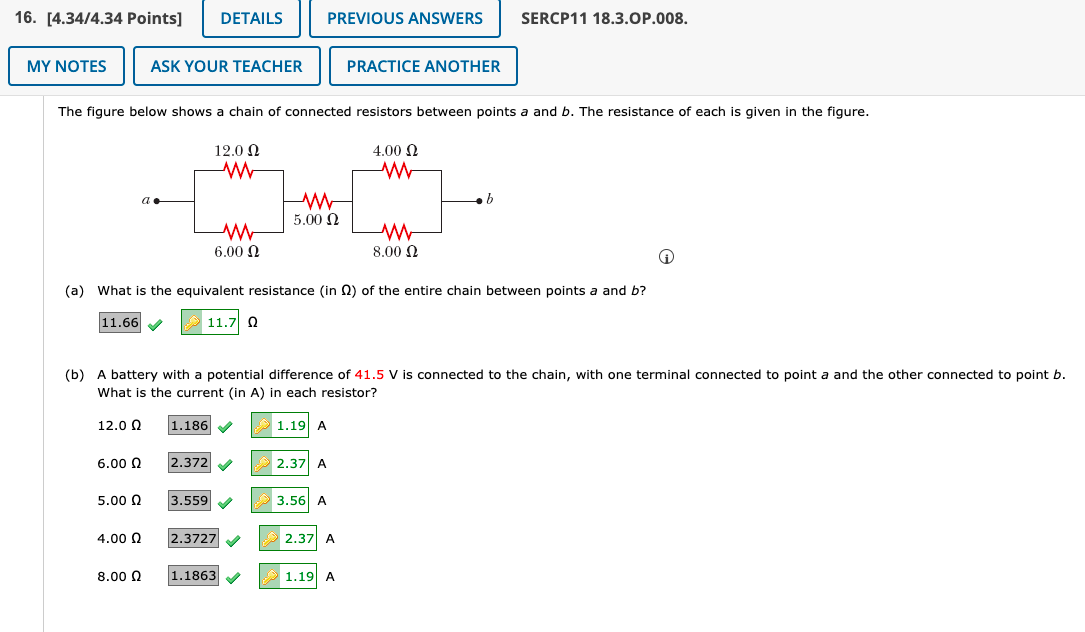

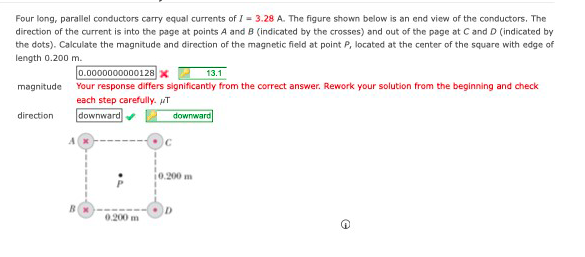

Taking R - 2.30 id]. and 5 - 490 V In the gure shown below, determine the magnitude and direction of the current In the horizontal wire between a and e. magnitude mA. direction 16. [4.34/4.34 Points] DETAILS PREVIOUS ANSWERS SERCP11 18.3.OP.008. MY NOTES ASK YOUR TEACHER PRACTICE ANOTHER The figure below shows a chain of connected resistors between points a and b. The resistance of each is given in the figure. 12.0 0 4.00 0 5.00 0 6.00 0 8.00 0 (a) What is the equivalent resistance (in () of the entire chain between points a and b? 11.66 11.7 (b) A battery with a potential difference of 41.5 V is connected to the chain, with one terminal connected to point a and the other connected to point b. What is the current (in A) in each resistor? 12.0 0 1.186 1.19 A 6.00 0 2.372 2.37 A 5.00 Q 3.559 3.56 A 4.00 Q 2.3727 2.37 A 8.00 0 1.1863 1.19 AFour long, parallel conductors carry equal currents of I = 3.28 A. The figure shown below is an end view of the conductors, The direction of the current is into the page at points A and B (indicated by the crosses) and out of the page at C and D (indicated by the dots). Calculate the magnitude and direction of the magnetic field at point P, located at the center of the square with edge of length 0.200 m. D.000000 0000128 13.1 magnitude Your response differs significantly from the correct answer. Rework your solution from the beginning and check each step carefully. MT direction downward downward C 10.2:00 m 0200 m
