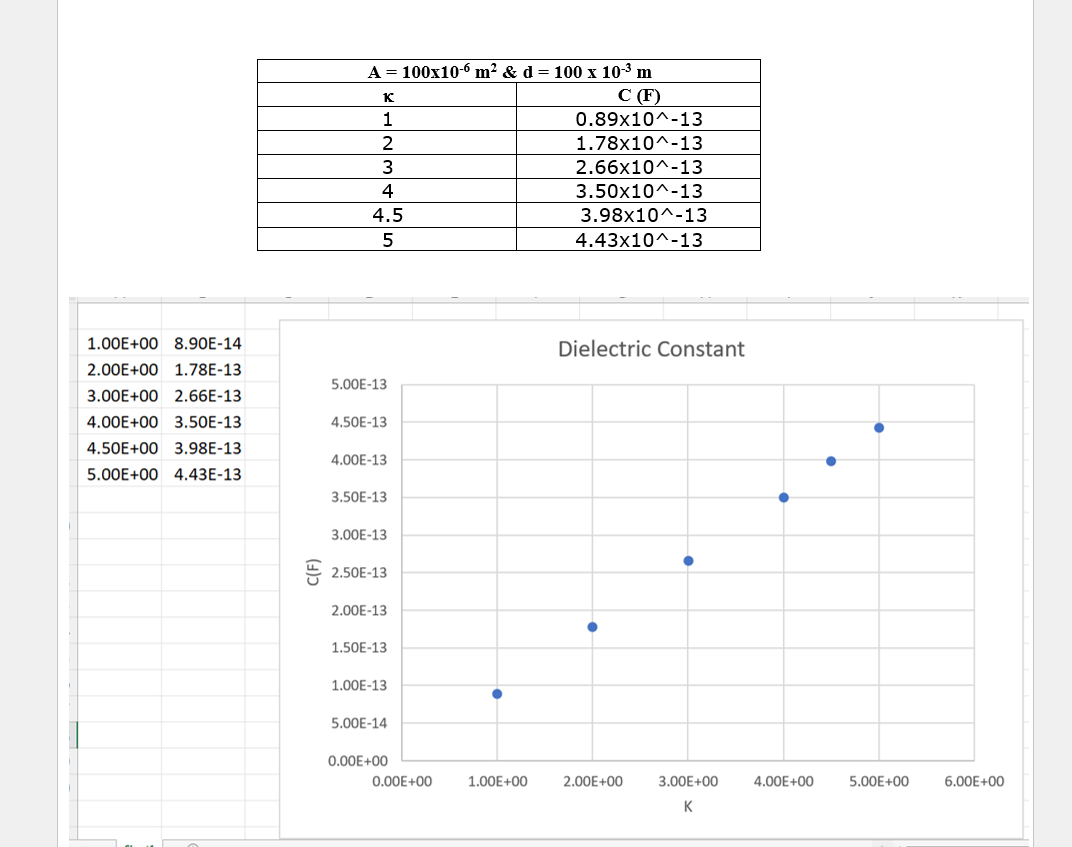

I need help with question 1 through question 5 please. I have added my graph and also the values. I have answered question 1 but

I need help with question 1 through question 5 please. I have added my graph and also the values. I have answered question 1 but not sure if it's correct.

Q1.Does C increase or decrease with increasingk?

C is increasing with K.

Q2. How does C depend onk? Can you fit a nice straight line through the data, or is it some other relation?

Q3. You can now measure the slope of the straight line from your graph. What is the slope of the line (with units)?

Slope of line:

Q4. You are in a position to write down an equation that describes how the capacitance C for a parallel plate capacitor depends on the area of the plates, A, the plate separation, d, and the dielectric constantk, of the material filling the space between the plates.

Write down your combined equation for the parallel plate capacitor:

C =

Q5.What is the value of X you computed?

X =
