I need the solution in matlab code The stress concentration factor k, given in the following, is the ratio of the maximum stress (Tmax) to

I need the solution in matlab code

image text in transcribed

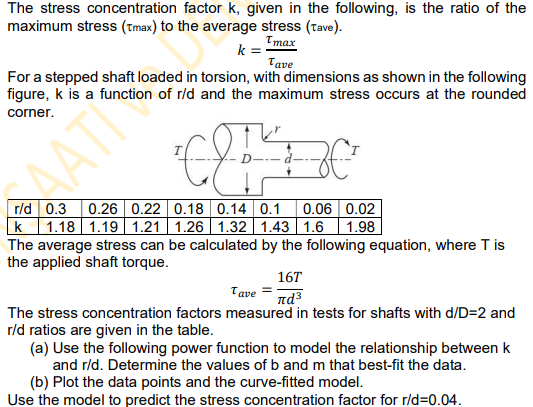

The stress concentration factor k, given in the following, is the ratio of the maximum stress (Tmax) to the average stress (Tave). k = Tmax Tave For a stepped shaft loaded in torsion, with dimensions as shown in the following figure, k is a function of rld and the maximum stress occurs at the rounded corner. AT 2233326 r/d 0.3 0.26 0.22 0.18 0.14 0.1 0.06 0.02 k 1.18 1.19 1.211.26 1.32 1.43 1.6 1.98 The average stress can be calculated by the following equation, where T is the applied shaft torque. 16T Tave d3 The stress concentration factors measured in tests for shafts with d/D=2 and r/d ratios are given in the table. (a) Use the following power function to model the relationship between k and r/d. Determine the values of b and m that best-fit the data. (b) Plot the data points and the curve-fitted model. Use the model to predict the stress concentration factor for r/d=0.04
