Question

1 Approved Answer

If F(A, B, C, D) A,C + A,BD, + AC'D (A+C+D, )(B+C+D)(A, +C) = = and F.(A,B,C,D) A'C'D+B,C,D, AC (ACA B+DA D') label the inputs

image text in transcribed

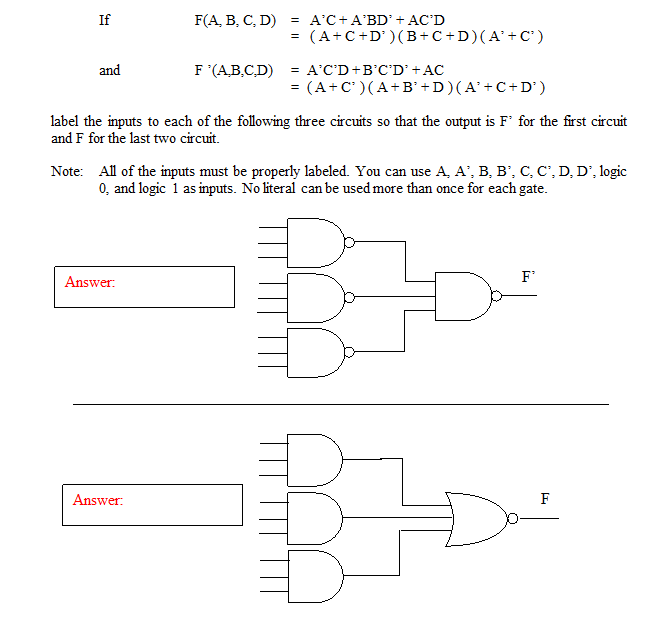

If F(A, B, C, D) A,C + A,BD, + AC'D (A+C+D, )(B+C+D)(A, +C) = = and F.(A,B,C,D) A'C'D+B,C,D, AC (ACA B+DA D') label the inputs to each of the following three circuits so that the output is F for the first circuit and F for the last two circuit. Note: All of the inputs must be properly labeled. You can use A, A, B, B', C, C', D, D', logic 0, and logic 1 as inputs. No literal can be used more than once for each gate

Step by Step Solution

There are 3 Steps involved in it

Step: 1

blur-text-image

Get Instant Access to Expert-Tailored Solutions

See step-by-step solutions with expert insights and AI powered tools for academic success

Step: 2

blur-text-image

Step: 3

blur-text-image
