Question: III. a . Use the portal method and determine ( approximately ) the reactions at supports A , B , C , and D .

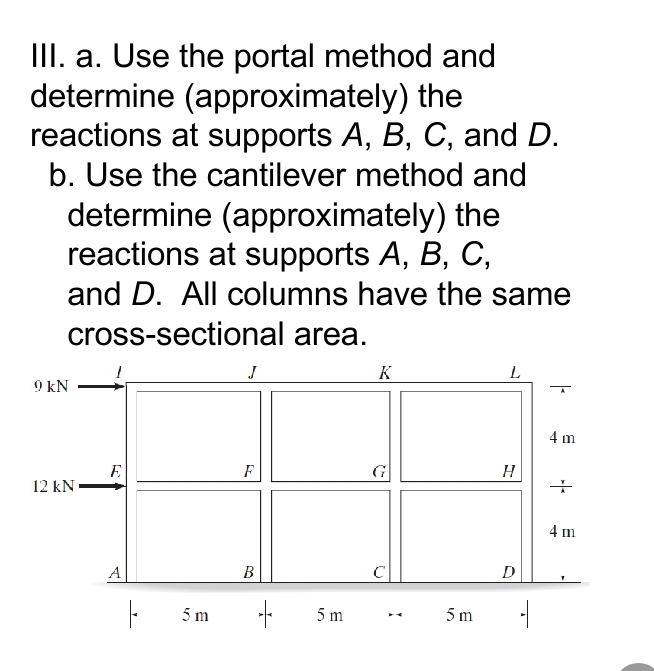

III. a. Use the portal method and determine (approximately) the reactions at supports A,B,C, and D. b. Use the cantilever method and determine (approximately) the reactions at supports A,B,C, and D. All columns have the same cross-sectional area.
III. a . Use the portal method and determine (

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
