(In C++)

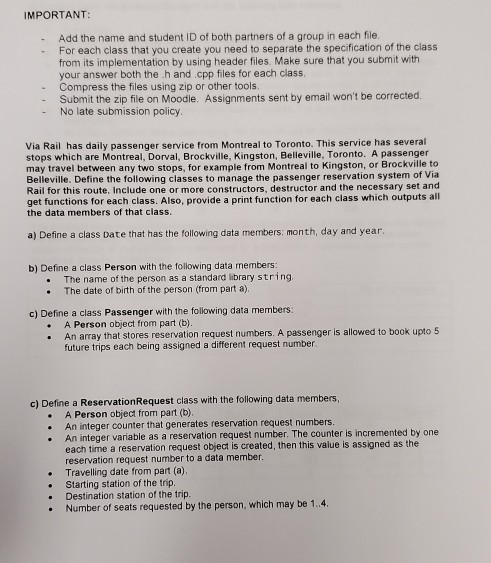

IMPORTANT:

• For each class that you create you need to separate the specification of the class from its implementation by using header files. Make sure that you submit with your answer both the .h and .cpp files for each class.

Via Rail has daily passenger service from Montreal to Toronto. This service has several stops which are Montreal, Dorval, Brockville, Kingston, Belleville, Toronto. A passenger may travel between any two stops, for example from Montreal to Kingston, or Brockville to Belleville. Define the following classes to manage the passenger reservation system of Via Rail for this route. Include one or more constructors, destructor and the necessary set and get functions for each class. Also, provide a print function for each class which outputs all the data members of that class.

a) Define a class Date that has the following data members: month, day and year.

b) Define a class Person with the following data members:

• The name of the person as a standard library string.
• The date of birth of the person (from part a).

c) Define a class Passenger with the following data members:

• A Person object from part (b).
• An array that stores reservation request numbers. A passenger is allowed to book upto 5 future trips each being assigned a different request number.

c) Define a ReservationRequest class with the following data members,

• A Person object from part (b).
• An integer counter that generates reservation request numbers.
• An integer variable as a reservation request number. The counter is incremented by one each time a reservation request object is created, then this value is assigned as the reservation request number to a data member.
• Travelling date from part (a).
• Starting station of the trip.
• Destination station of the trip.
• Number of seats requested by the person, which may be 1..4.

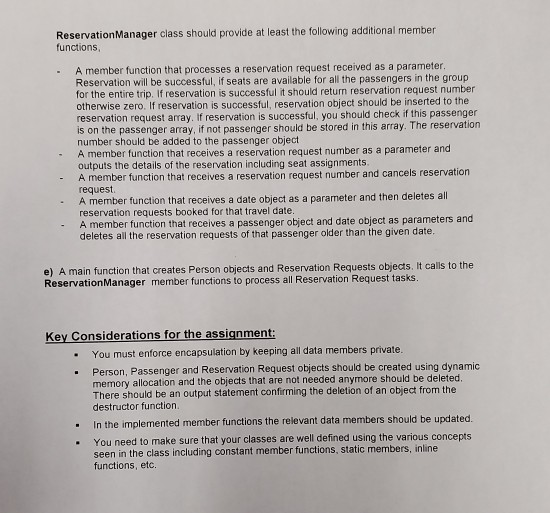

Key Considerations for the assignment:

• You must enforce encapsulation by keeping all data members private.
• Person, Passenger and Reservation Request objects should be created using dynamic memory allocation and the objects that are not needed anymore should be deleted. There should be an output statement confirming the deletion of an object from the destructor function.
• In the implemented member functions the relevant data members should be updated.
• You need to make sure that your classes are well defined using the various concepts seen in the class including constant member functions, static members, inline functions, etc.

IMPORTANT: - Add the name and student ID of both partners of a group in each file. For each class that you create you need to separate the specification of the class from its implementation by using header files. Make sure that you submit with your answer both the hand.cpp files for each class. Compress the files using zip or other tools. Submit the zip file on Moodle. Assignments sent by email won't be corrected, No late submission policy - Via Rail has daily passenger service from Montreal to Toronto. This service has several stops which are Montreal, Dorval, Brockville, Kingston, Belleville, Toronto. A passenger may travel between any two stops, for example from Montreal to Kingston, or Brockville to Belleville. Define the following classes to manage the passenger reservation system of Via Rail for this route. Include one or more constructors, destructor and the necessary set and get functions for each class. Also, provide a print function for each class which outputs all the data members of that class. a) Define a class Date that has the following data members: month, day and year. b) Define a class Person with the following data members: . The name of the person as a standard library string The date of birth of the person (from part a). c) Define a class Passenger with the following data members A Person object from part (b). An array that stores reservation request numbers. A passenger is allowed to book upto 5 future trips each being assigned a different request number c) Define a Reservation Request class with the following data members, A Person object from part (b). An integer counter that generates reservation request numbers. An integer variable as a reservation request number. The counter is incremented by one each time a reservation request object is created, then this value is assigned as the reservation request number to a data member. Travelling date from part (a) Starting station of the trip. Destination station of the trip. Number of seats requested by the person, which may be 1..4. d) Define a class Reservation Manager with the following data members, Travel date. Variable capacity that specifies the number of seats in the train Variable that specifies the number of stations on the route. A two-dimensional (capacity number of stations) array of integers for reservation table. This array is initialized to zero, which indicates that all the seats are available. When a seat is assigned to a passenger, then the reservation request number is stored at the array locations corresponding to the travel except the destination station. An array of pointers to the reservation request objects, this array should be initialized to nullpointers An array of pointers to the passengers, this array should be initialized to nullpointers. The following figure shows Montreal-Toronto route and station numbers. The following table shows some example passenger reservations and the table below the filling of the reservation table. In the reservation table, request number isnot stored at the destination station of the trip. If multiple seats are requested for a reservation, reservation request number should be stored in all the seats. No of passengers Request no 145 146 147 Start Montreal Montreal Dorval Kingston Belleville Destination Brockville Toronto Kingston Toronto Toronto 148 150 Kingston Toronto Seat no Montreal 145 146 Dorval 145 146 147 Brockville 0 146 147 0 Belleville 150 146 148 148 0 146 14B 148 0 ololo Reservation Manager class should provide at least the following additional member functions A member function that processes a reservation request received as a parameter. Reservation will be successful, if seats are available for all the passengers in the group for the entire trip. If reservation is successful it should return reservation request number otherwise zero. If reservation is successful, reservation object should be inserted to the reservation request array. If reservation is successful, you should check if this passenger is on the passenger array, if not passenger should be stored in this array. The reservation number should be added to the passenger object A member function that receives a reservation request number as a parameter and outputs the details of the reservation including seat assignments. A member function that receives a reservation request number and cancels reservation request A member function that receives a date object as a parameter and then deletes all reservation requests booked for that travel date. A member function that receives a passenger object and date object as parameters and deletes all the reservation requests of that passenger older than the given date. e) A main function that creates Person objects and Reservation Requests objects. It calls to the Reservation Manager member functions to process all Reservation Request tasks. Key Considerations for the assignment: You must enforce encapsulation by keeping all data members private. Person, Passenger and Reservation Request objects should be created using dynamic memory allocation and the objects that are not needed anymore should be deleted. There should be an output statement confirming the deletion of an object from the destructor function. In the implemented member functions the relevant data members should be updated. You need to make sure that your classes are well defined using the various concepts seen in the class including constant member functions, static members, inline functions, etc
