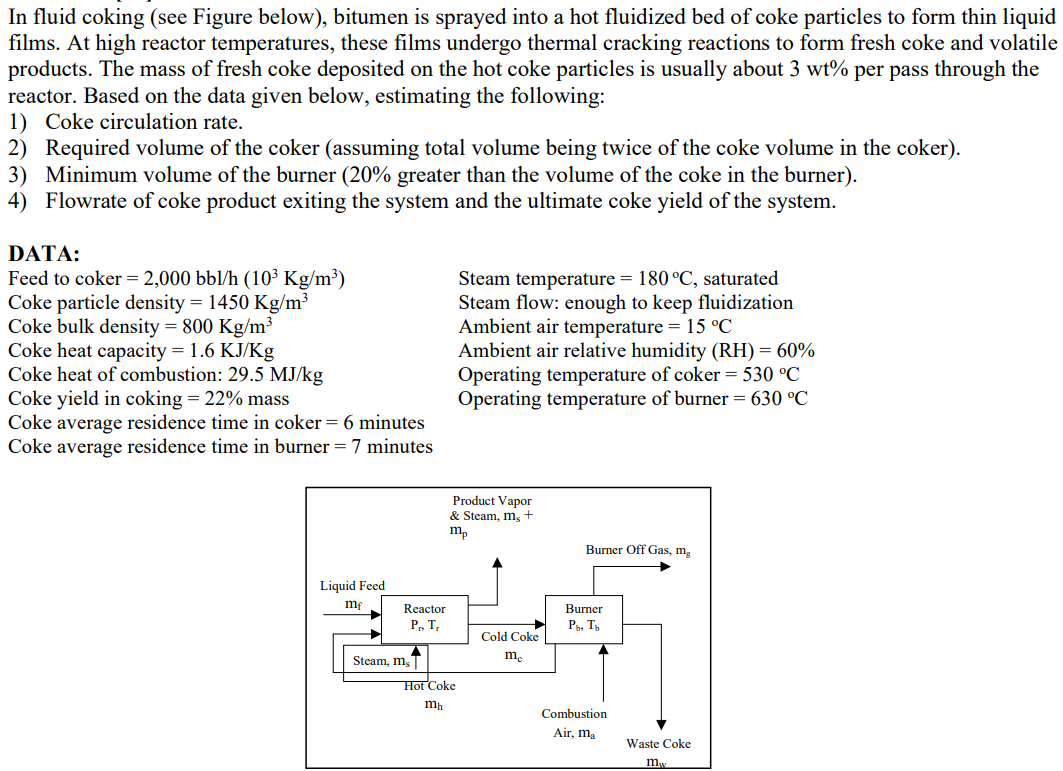

In fluid coking ( see Figure below ) , bitumen is sprayed into a hot fluidized bed of coke particles to form thin liquid films.

In fluid coking (see Figure below), bitumen is sprayed into a hot fluidized bed of coke particles to form thin liquid
films. At high reactor temperatures, these films undergo thermal cracking reactions to form fresh coke and volatile
products. The mass of fresh coke deposited on the hot coke particles is usually about 3wt% per pass through the
reactor. Based on the data given below, estimating the following:
Coke circulation rate.
Required volume of the coker (assuming total volume being twice of the coke volume in the coker).
Minimum volume of the burner (20% greater than the volume of the coke in the burner).
Flowrate of coke product exiting the system and the ultimate coke yield of the system.
DATA:
Feed to coker =2,000bblh(103Kgm3)
Coke particle density =1450Kgm3
Coke bulk density =800Kgm3
Coke heat capacity =1.6KJKg
Coke heat of combustion: 29.5MJkg
Coke yield in coking =22% mass
Coke average residence time in coker =6 minutes
Coke average residence time in burner =7 minutes
Steam temperature =180C, saturated
Steam flow: enough to keep fluidization
Ambient air temperature =15C
Ambient air relative humidity (RH)=60%
Operating temperature of coker =530C
Operating temperature of burner =630CAsphaltenes are defined as the material that precipitates from crude oil or bitumen when a large excess of n-alkane solvent is added. Hildebrand Solubility Parameters for n-alkanes
Solvent \delta 1, MPa1/2
n-Pentane 14.4
n-Hexane 14.9
n-Heptane 15.3
n-Dodecane 16.0
If the asphaltene in Lloydminster heavy oil has a solubility parameter of approximately 16.5 MPa1/2,which of these n-alkanes will precipitate the most asphaltene?
image text in transcribed
