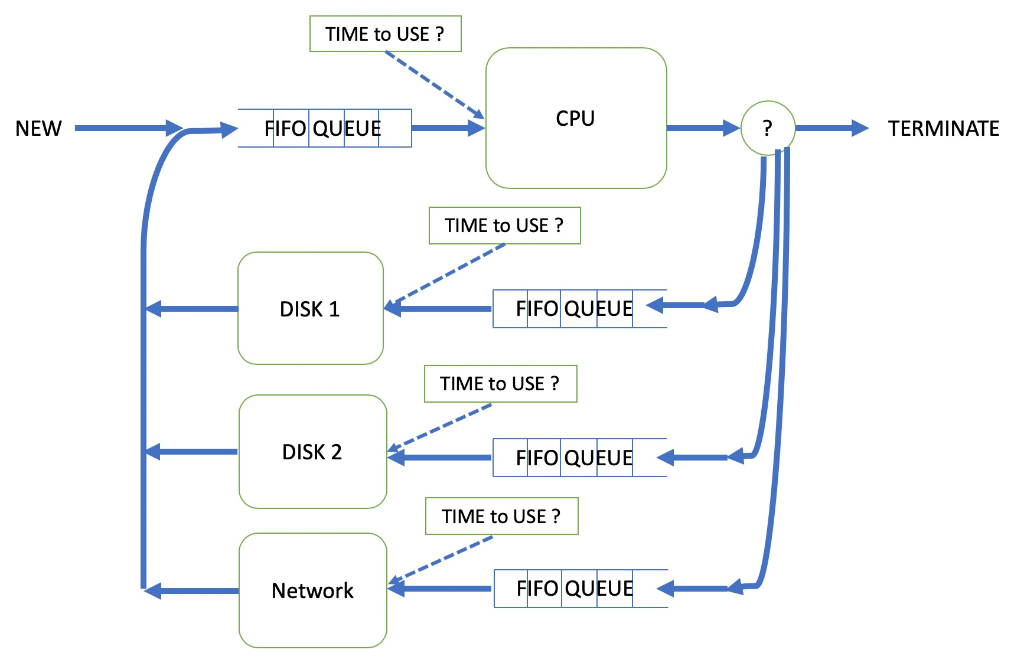

In this assignment, you'll create a discrete event simulation in C that models the very simplified machine pictured below. The diagram shows the flow of a process through the different states in its execution history. It also shows that a process must wait to use a resource if the resource is in use or busy.

When a job arrives (perhaps because a user double-clicked on an icon to start a program), it needs to spend some amount of time executing using the CPU. It then either performs I/O on one of two disks, or sends a message to the network and returns to use the CPU, or the job is finished. Jobs alternate between the CPU and I/O devices in this manner until they're finished. It's possible that when a job arrives to use a device, the device is busy servicing another program. In this case, the job must wait in a queue until the device is no longer busy. In this assignment, all of your device queues are FIFO, however, this is not necessarily the case in real systems. For this assignment, we'll frequently note or record the time; however, we'll use a "logical clock" and think of things in terms that sound like, "at time 37, job 6 spent 5 units of time at the CPU" rather than "at 2:30:01 PM, job 6 spent 300 microseconds at the CPU". In your simulation, the amount of time that a job spends using the CPU, whether or not it's finished (has more computing to do), which disk contains the file a job needs, or whether to use the network, and many other properties are determined at runtime, at random. To generate random numbers in C, take a look at the Standard C Library functions rand( ) and srand( ) (so that your program doesn't use the same pseudo-random numbers in each run). In this assignment, you'll create a discrete event simulation (Links to an external site.) in C that models the very simplified machine pictured below. The diagram shows the flow of a process through the different states in its execution history. It also shows that a process must wait to use a resource if the resource is in use or busy.

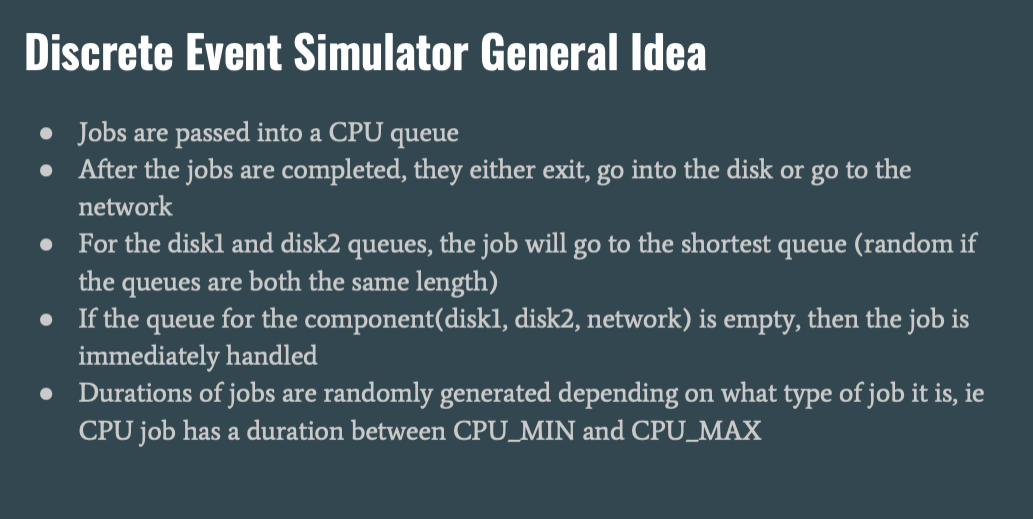

Library functions rand( ) and srand( ) (so that your program doesn't use the same pseudo-random numbers in each run). Basic Mechanism The system behaves as follows: The system runs from INIT_TIME (usually 0) to FIN_TIME. Jobs enter the system with an interarrival time that is uniformly distributed between ARRIVE_MIN and ARRIVE_MAX. Once a job has finished a round of processing at the CPU, the probability that it exits the system (instead of doing a disk read or network send, and then further computation) is QUIT_PROB. Once a job has been determined to continue executing, a probability function is used to determine whether it will do disk I/O or use the network. This probability is NETWORK_PROB. When a job needs to do disk I/O, it uses the disk that's the least busy, i.e., the disk whose queue is the shortest. (This might seem a bit silly, but we can pretend that each disk has the same information.) If the disk queues are of equal length, choose one of the disks at random. When jobs reach some component (CPU, disk1, disk2, or network), if that component is free, the job begins service there immediately. If, on the other hand, that component is busy servicing someone else, the job must wait in that component's queue. The queue for each system component is FIFO. When a job reaches a component (a different job leaves a component or the component is free, and this job is first in the queue), how much time does it spend using the component? This is determined randomly, at runtime, for every component arrival. A job is serviced by a component for an interval of time that is uniformly distributed between some minimum and maximum defined for that component. For example, you'll define: CPU_MIN, CPU_MAX, DISK1_MIN, DISK1_MAX, etc. At time FIN_TIME, the job simulation terminates. We can ignore the jobs that might be left receiving service or waiting in queue when FIN_TIME is reached.

Job Struct

Job Number (keep track of what job is where)

Time (how long this job takes)

Type (CPU job? Network Job? Disk Job?)

Random number generation

At the start of your program you want to run srand(seed)

This will randomly generate numbers based on the seed you pass it

randomly because the same random numbers are generated if the same seed is

passed

Config file

You will need a config file that has all the information you will store such as

ARRIVAL_MIN, ARRIVAL_MAX, CPU_MIN, CPU_MAX, NETWORK_MIN,

NETWORK_MAX

You will read the config file and then store the variables in your program

I suggest using fscanf(), it is ok to hard code in the text file structure

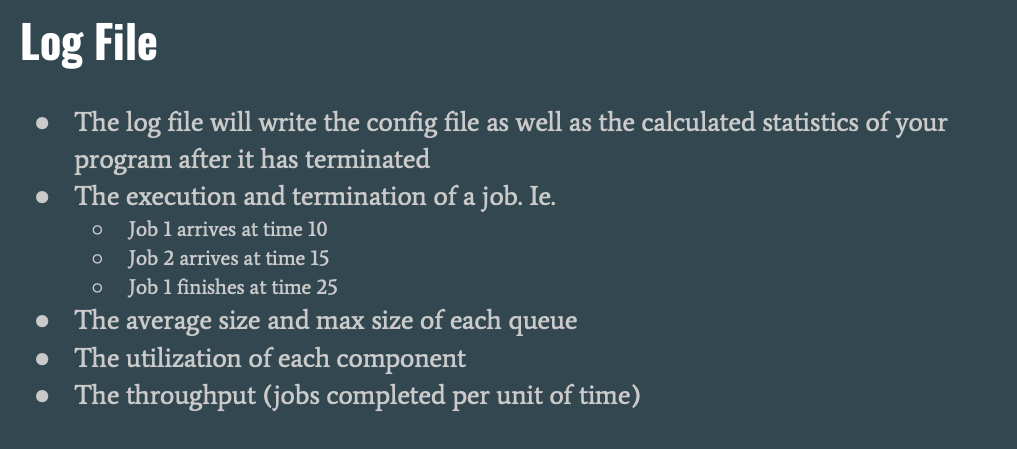

Running Your Simulator The program will read from a text config file the following values: a SEED for the random number generator INIT_TIME FIN_TIME ARRIVE_MIN ARRIVE_MAX QUIT_PROB NETWORK_PROB CPU_MIN CPU_MAX DISK1_MIN DISK1_MAX DISK2_MIN DISK2_MAX NETWORK_MIN NETWORK_MAX The format of the file is up to you, but it could be something as simple as: INIT_TIME 0 FIN_TIME 10000 ... Results log Your program should write to a log file the values of each of the constants listed above as well as each significant event (e.g., arrival of a new job into the system, the completion of a job at a component, the termination of the simulation, along with the time of the event) statistics Calculate and print: The average and the maximum size of each queue. The utilization of each server (component). This would be: time_the_server_is_busy/total_time where total_time = FIN_TIME-INIT_TIME. The average and maximum response time of each server (response time will be the difference in time between the job arrival at a server and the completion of the job at the server) The throughput (number of jobs completed per unit of time) of each server. Run the program a number of times with different values for the parameters and random seed. Examine how the utilizations relate to queue sizes. If for a given choice of parameters by changing the random seed we obtain utilization and size values that are stable (i.e., they do don't change much (maybe 10%)), then we have a good simulation.

Your program should process a reasonable number of jobs, at least one thousand. As part of the homework submit a document, README.txt, from two to three double-spaced pages plus (maybe include) diagrams, describing your program. Your description should be written, as addressed to a technical manager whom you want to understand what you have done, the alternatives that you had to choose in design, why you made the choices you made, and how you tested your program. Include also a second document, RUNS.txt, describing the data you have used to test your program and what you have learned from executing and testing. You should choose reasonable values for the inter-arrival times and for the CPU service times. For simplicity, choose a QUIT_PROB defaulted to 0.2, and use a service time at the disks equal to the service time of real disks (i.e., what is the average time to access and read or write a block of disk?). You can use a value of 0.3 for NETWORK_PROB, indicating that 70% of the time a job leaving the CPU will do disk I/O and 30% of the time the task will perform a network send. If you can, determine what is the smallest reasonable inter-arrival time (and for that matter, how would we even go about deciding on what reasonable would be)?

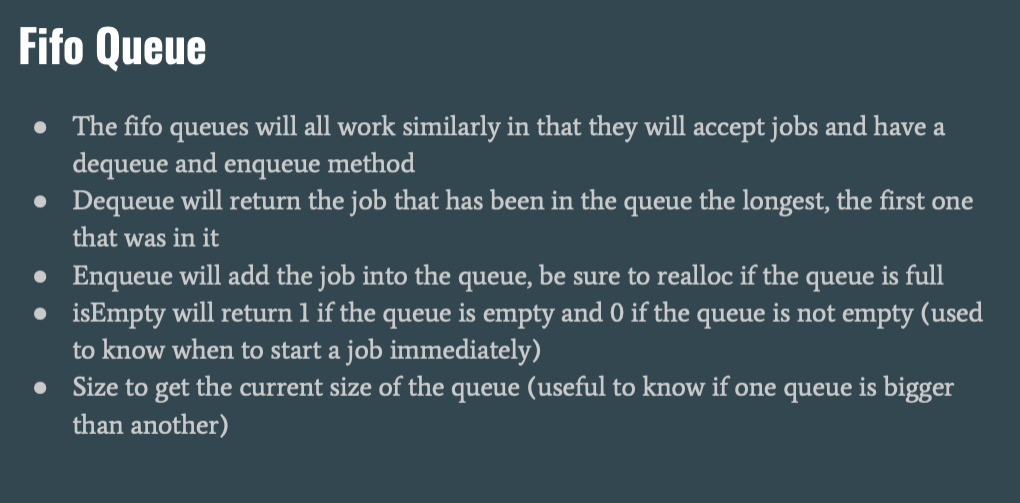

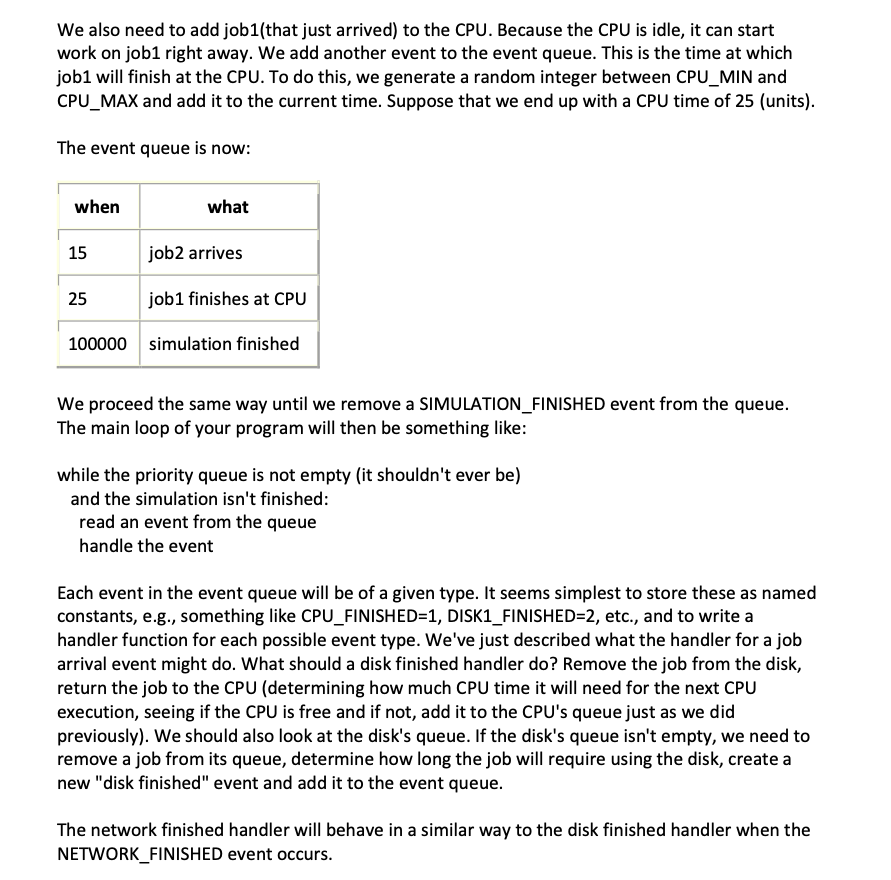

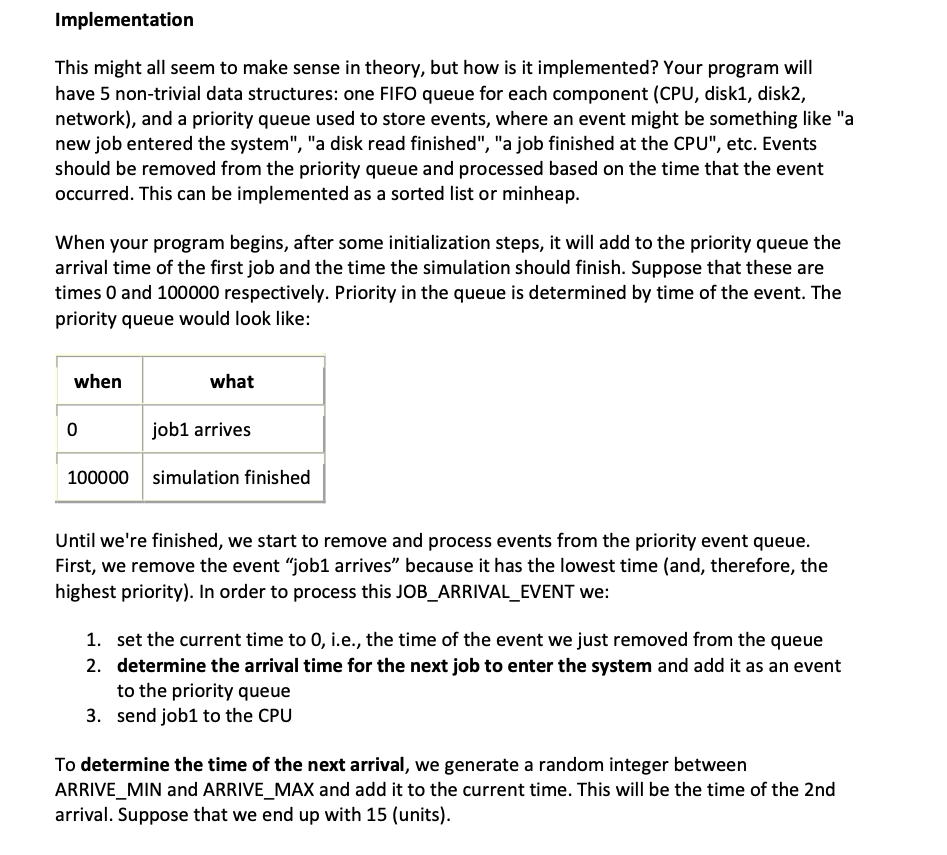

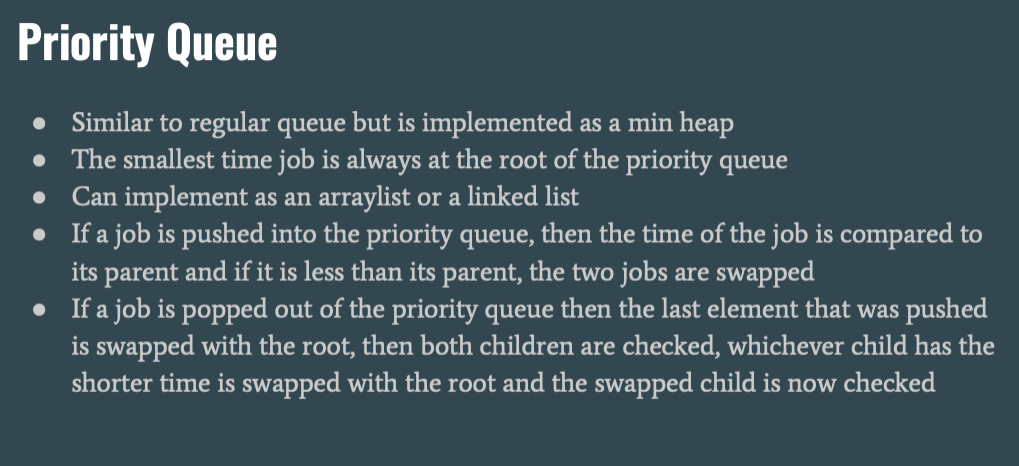

Implementation This might all seem to make sense in theory, but how is it implemented? Your program will have 5 non-trivial data structures: one FIFO queue for each component (CPU, disk1, disk2, network), and a priority queue used to store events, where an event might be something like "a new job entered the system", "a disk read finished", "a job finished at the CPU", etc. Events should be removed from the priority queue and processed based on the time that the event occurred. This can be implemented as a sorted list or minheap. When your program begins, after some initialization steps, it will add to the priority queue the arrival time of the first job and the time the simulation should finish. Suppose that these are times 0 and 100000 respectively. Priority in the queue is determined by time of the event. The priority queue would look like: when what job1 arrives 100000 simulation finished Until we're finished, we start to remove and process events from the priority event queue. First, we remove the event "job1 arrives" because it has the lowest time (and, therefore, the highest priority). In order to process this JOB_ARRIVAL_EVENT we: 1. set the current time to 0, i.e., the time of the event we just removed from the queue 2. determine the arrival time for the next job to enter the system and add it as an event to the priority queue 3. send job1 to the CPU To determine the time of the next arrival, we generate a random integer between ARRIVE_MIN and ARRIVE_MAX and add it to the current time. This will be the time of the 2nd arrival. Suppose that we end up with 15 (units). We also need to add job1(that just arrived) to the CPU. Because the CPU is idle, it can start work on job1 right away. We add another event to the event queue. This is the time at which job1 will finish at the CPU. To do this, we generate a random integer between CPU_MIN and CPU_MAX and add it to the current time. Suppose that we end up with a CPU time of 25 (units). The event queue is now: when what 15 job2 arrives 25 job1 finishes at CPU 100000 simulation finished We proceed the same way until we remove a SIMULATION_FINISHED event from the queue. The main loop of your program will then be something like: while the priority queue is not empty (it shouldn't ever be) and the simulation isn't finished: read an event from the queue handle the event Each event in the event queue will be of a given type. It seems simplest to store these as named constants, e.g., something like CPU_FINISHED=1, DISK1_FINISHED=2, etc., and to write a handler function for each possible event type. We've just described what the handler for a job arrival event might do. What should a disk finished handler do? Remove the job from the disk, return the job to the CPU (determining how much CPU time it will need for the next CPU execution, seeing if the CPU is free and if not, add it to the CPU's queue just as we did previously). We should also look at the disk's queue. If the disk's queue isn't empty, we need to remove a job from its queue, determine how long the job will require using the disk, create a new "disk finished" event and add it to the event queue. The network finished handler will behave in a similar way to the disk finished handler when the NETWORK_FINISHED event occurs. TIME to USE? FIFO QUEUE I CPU NEW CPU TERMINATE TIME to USE? DISK 1 FIFO QUEUE TIME to USE? DISK 2 FIFO QUEUE TIME to USE? Network FIFO QUEUE Discrete Event Simulator General Idea Jobs are passed into a CPU queue After the jobs are completed, they either exit, go into the disk or go to the network For the diskl and disk2 queues, the job will go to the shortest queue (random if the queues are both the same length) If the queue for the component(disk, disk2, network) is empty, then the job is immediately handled Durations of jobs are randomly generated depending on what type of job it is, ie CPU job has a duration between CPU_MIN and CPU_MAX Fifo Queue The fifo queues will all work similarly in that they will accept jobs and have a dequeue and enqueue method Dequeue will return the job that has been in the queue the longest, the first one that was in it Enqueue will add the job into the queue, be sure to realloc if the queue is full isEmpty will return 1 if the queue is empty and 0 if the queue is not empty (used to know when to start a job immediately), Size to get the current size of the queue (useful to know if one queue is bigger than another) Priority Queue Similar to regular queue but is implemented as a min heap The smallest time job is always at the root of the priority queue Can implement as an arraylist or a linked list If a job is pushed into the priority queue, then the time of the job is compared to its parent and if it is less than its parent, the two jobs are swapped If a job is popped out of the priority queue then the last element that was pushed is swapped with the root, then both children are checked, whichever child has the shorter time is swapped with the root and the swapped child is now checked Log File The log file will write the config file as well as the calculated statistics of your program after it has terminated The execution and termination of a job. Ie. O Job 1 arrives at time 10 O Job 2 arrives at time 15 o Job 1 finishes at time 25 The average size and max size of each queue The utilization of each component The throughput (jobs completed per unit of time) Implementation This might all seem to make sense in theory, but how is it implemented? Your program will have 5 non-trivial data structures: one FIFO queue for each component (CPU, disk1, disk2, network), and a priority queue used to store events, where an event might be something like "a new job entered the system", "a disk read finished", "a job finished at the CPU", etc. Events should be removed from the priority queue and processed based on the time that the event occurred. This can be implemented as a sorted list or minheap. When your program begins, after some initialization steps, it will add to the priority queue the arrival time of the first job and the time the simulation should finish. Suppose that these are times 0 and 100000 respectively. Priority in the queue is determined by time of the event. The priority queue would look like: when what job1 arrives 100000 simulation finished Until we're finished, we start to remove and process events from the priority event queue. First, we remove the event "job1 arrives" because it has the lowest time (and, therefore, the highest priority). In order to process this JOB_ARRIVAL_EVENT we: 1. set the current time to 0, i.e., the time of the event we just removed from the queue 2. determine the arrival time for the next job to enter the system and add it as an event to the priority queue 3. send job1 to the CPU To determine the time of the next arrival, we generate a random integer between ARRIVE_MIN and ARRIVE_MAX and add it to the current time. This will be the time of the 2nd arrival. Suppose that we end up with 15 (units). We also need to add job1(that just arrived) to the CPU. Because the CPU is idle, it can start work on job1 right away. We add another event to the event queue. This is the time at which job1 will finish at the CPU. To do this, we generate a random integer between CPU_MIN and CPU_MAX and add it to the current time. Suppose that we end up with a CPU time of 25 (units). The event queue is now: when what 15 job2 arrives 25 job1 finishes at CPU 100000 simulation finished We proceed the same way until we remove a SIMULATION_FINISHED event from the queue. The main loop of your program will then be something like: while the priority queue is not empty (it shouldn't ever be) and the simulation isn't finished: read an event from the queue handle the event Each event in the event queue will be of a given type. It seems simplest to store these as named constants, e.g., something like CPU_FINISHED=1, DISK1_FINISHED=2, etc., and to write a handler function for each possible event type. We've just described what the handler for a job arrival event might do. What should a disk finished handler do? Remove the job from the disk, return the job to the CPU (determining how much CPU time it will need for the next CPU execution, seeing if the CPU is free and if not, add it to the CPU's queue just as we did previously). We should also look at the disk's queue. If the disk's queue isn't empty, we need to remove a job from its queue, determine how long the job will require using the disk, create a new "disk finished" event and add it to the event queue. The network finished handler will behave in a similar way to the disk finished handler when the NETWORK_FINISHED event occurs. TIME to USE? FIFO QUEUE I CPU NEW CPU TERMINATE TIME to USE? DISK 1 FIFO QUEUE TIME to USE? DISK 2 FIFO QUEUE TIME to USE? Network FIFO QUEUE Discrete Event Simulator General Idea Jobs are passed into a CPU queue After the jobs are completed, they either exit, go into the disk or go to the network For the diskl and disk2 queues, the job will go to the shortest queue (random if the queues are both the same length) If the queue for the component(disk, disk2, network) is empty, then the job is immediately handled Durations of jobs are randomly generated depending on what type of job it is, ie CPU job has a duration between CPU_MIN and CPU_MAX Fifo Queue The fifo queues will all work similarly in that they will accept jobs and have a dequeue and enqueue method Dequeue will return the job that has been in the queue the longest, the first one that was in it Enqueue will add the job into the queue, be sure to realloc if the queue is full isEmpty will return 1 if the queue is empty and 0 if the queue is not empty (used to know when to start a job immediately), Size to get the current size of the queue (useful to know if one queue is bigger than another) Priority Queue Similar to regular queue but is implemented as a min heap The smallest time job is always at the root of the priority queue Can implement as an arraylist or a linked list If a job is pushed into the priority queue, then the time of the job is compared to its parent and if it is less than its parent, the two jobs are swapped If a job is popped out of the priority queue then the last element that was pushed is swapped with the root, then both children are checked, whichever child has the shorter time is swapped with the root and the swapped child is now checked Log File The log file will write the config file as well as the calculated statistics of your program after it has terminated The execution and termination of a job. Ie. O Job 1 arrives at time 10 O Job 2 arrives at time 15 o Job 1 finishes at time 25 The average size and max size of each queue The utilization of each component The throughput (jobs completed per unit of time)
