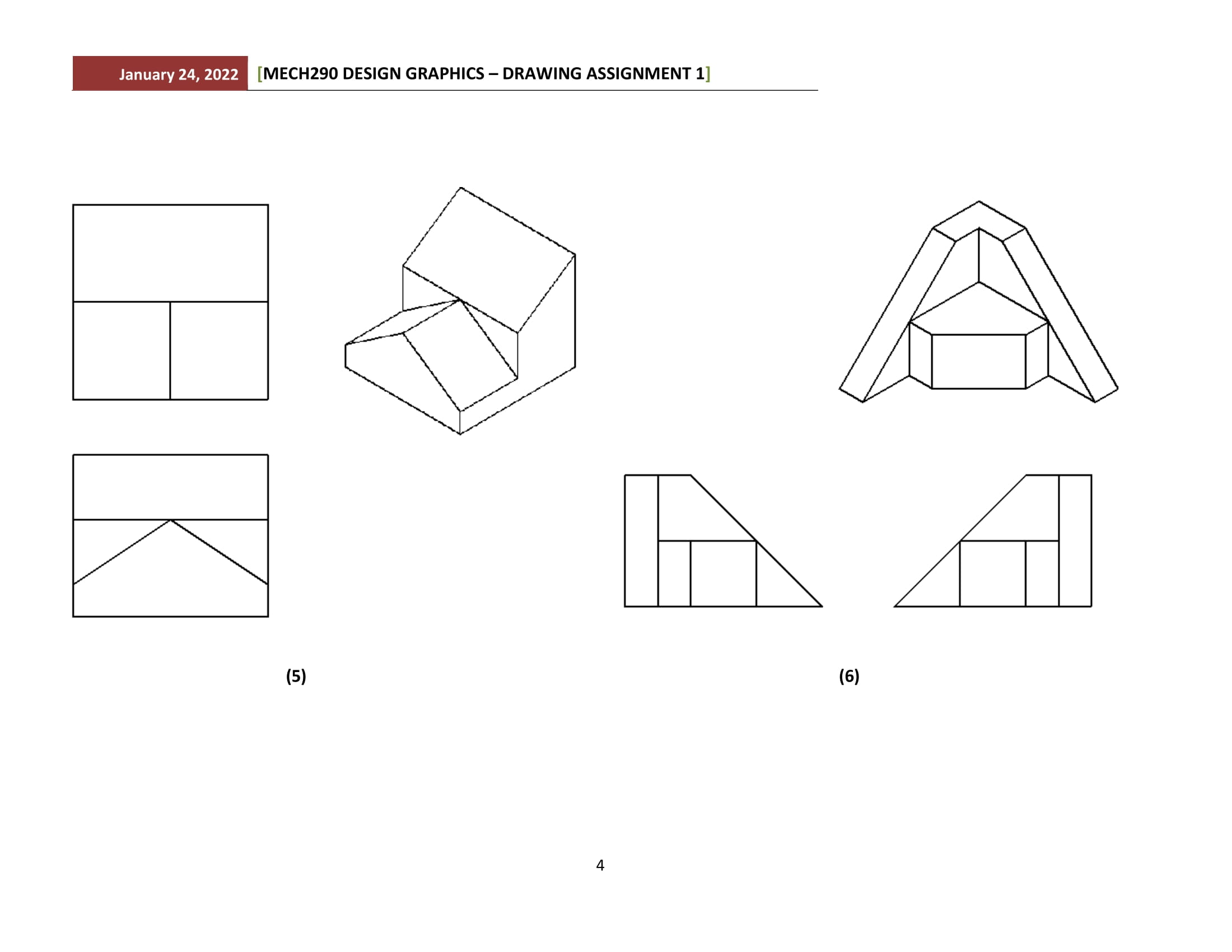

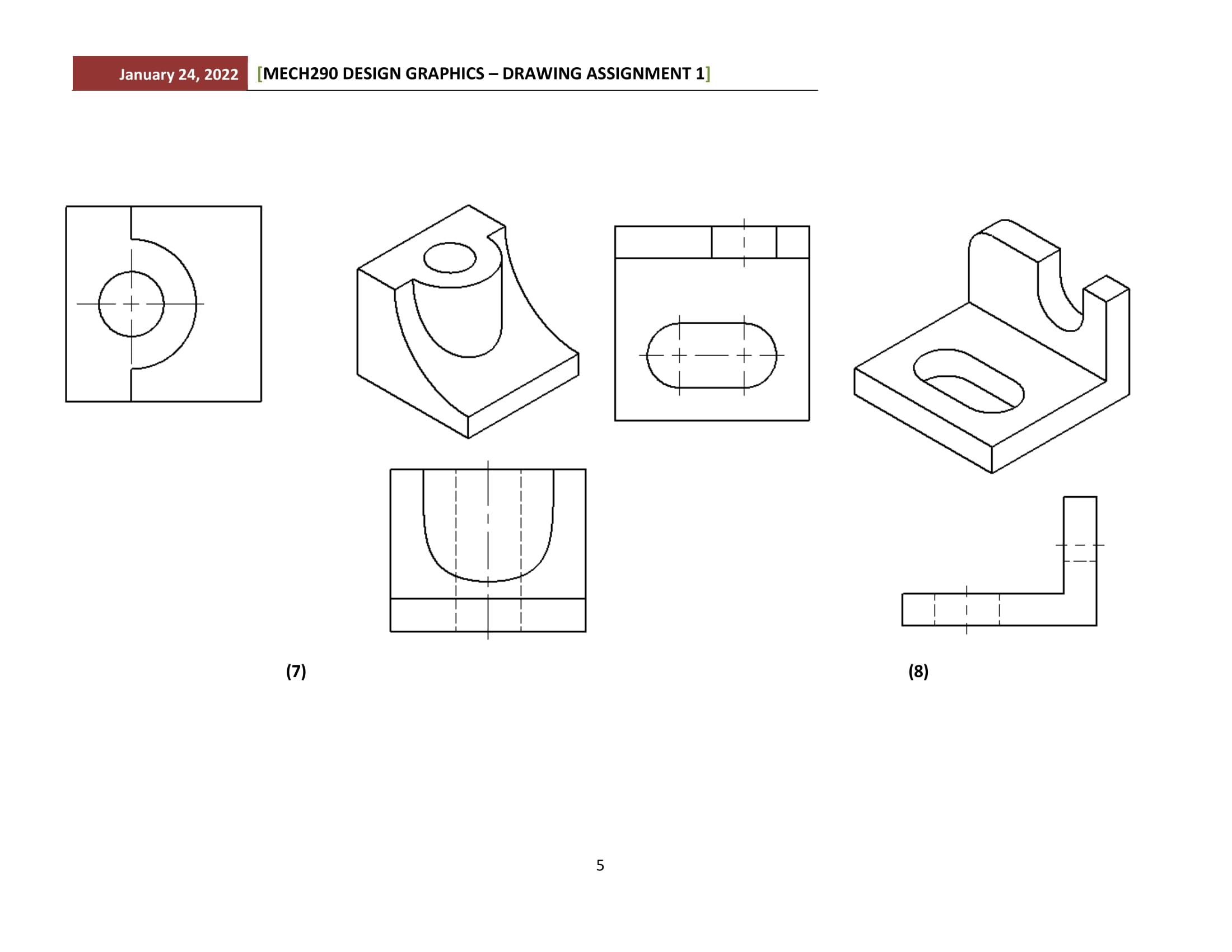

January 24, 2022 [MECH290 DESIGN GRAPHICS - DRAWING ASSIGNMENT 1] Due date: February 2, 2022 at beginning of lecture Student Name: Drawing assignment 1 ID: 5% of final grade Attach this problem sheet as the front page of your homework. a) Freehand sketching exercise. Use engineering grid papers to draw the following drawings. Omit dimensions and notes. Friction plate (1% of final grade) -4X 30 8X 12 4X 30 45- 4X 67 0122 METRIC 4X12 O 050 1 4X 30 4X15 0154 January 24, 2022 [MECH290 DESIGN GRAPHICS - DRAWING ASSIGNMENT 1] b) Multiview problems. Given the isometric view, draw the Multiview or the missing view. All multiviews are 3rd angle projection. (each problem counts 0.5% of final grade). (1) 2 (2) January 24, 2022 [MECH290 DESIGN GRAPHICS - DRAWING ASSIGNMENT 1] (3) 3 + (4) January 24, 2022 [MECH290 DESIGN GRAPHICS - DRAWING ASSIGNMENT 1] (5) + (6) January 24, 2022 [MECH290 DESIGN GRAPHICS - DRAWING ASSIGNMENT 1] (7) (8)
