Java GUI programming

This source codes are assignments 2. Please use these codes and add some functions on this codes.

import java.awt.BorderLayout;

import java.awt.Container;

import java.awt.GridBagConstraints;

import java.awt.GridBagLayout;

import java.awt.Insets;

import java.awt.event.ActionEvent;

import java.awt.event.ActionListener;

import javax.swing.JButton;

import javax.swing.JFrame;

import javax.swing.JPanel;

import javax.swing.JTextField;

public class Calculator extends JFrame implements ActionListener {

// defining required UI components

JPanel numPanel, outputPanel;

JTextField ioText;

JButton[] numbers;

JButton dot, add, sub, div, mult, equal, clear;

Container pane;

/**

* constructor to initialize the GUI

*/

public Calculator() {

setSize(300, 300);

setDefaultCloseOperation(EXIT_ON_CLOSE);

setLocationRelativeTo(null);

// initializing all components

pane = getContentPane();

pane.setLayout(new BorderLayout());

outputPanel = new JPanel();

ioText = new JTextField(13);

ioText.setEditable(false);

outputPanel.add(ioText);

// initializing grid of numbers

initNumbersPanel();

// adding numbers and text panel to the frame using BorderLayout

pane.add(outputPanel, BorderLayout.PAGE_START);

pane.add(numPanel, BorderLayout.CENTER);

pack();

setVisible(true);

}

/**

* Method to initialize the panel that contains numbers and operators

*/

public void initNumbersPanel() {

numPanel = new JPanel();

numPanel.setLayout(new GridBagLayout());

GridBagConstraints gbc = new GridBagConstraints();

gbc.fill = GridBagConstraints.HORIZONTAL;

gbc.insets = new Insets(5, 5, 5, 5);

numbers = new JButton[10];

gbc.gridy = 0;

gbc.gridx = 0;

for (int i = 1; i

/**

* Creating the button

*/

numbers[i] = new JButton("" + i);

/**

* Adding the action listener

*/

numbers[i].addActionListener(this);

/**

* Adding button to the panel

*/

numPanel.add(numbers[i], gbc);

gbc.gridx++;

if (gbc.gridx == 3) {

/**

* skipping to the next row, first column

*/

gbc.gridy++;

gbc.gridx = 0;

}

}

/**

* Adding the 0 button

*/

numbers[0] = new JButton("0");

numbers[0].addActionListener(this);

numPanel.add(numbers[0], gbc);

/**

* Adding plus button

*/

gbc.gridx++;

/**

* Adding the dot button

*/

dot = new JButton(".");

dot.addActionListener(this);

numPanel.add(dot, gbc);

gbc.gridx++;

// gbc.gridwidth=2;

gbc.gridwidth = 1;

add = new JButton("+");

add.addActionListener(this);

numPanel.add(add, gbc);

/**

* Adding minus button

*/

gbc.gridy++;

gbc.gridx = 0;

sub = new JButton("-");

sub.addActionListener(this);

numPanel.add(sub, gbc);

/**

* Adding mult button

*/

gbc.gridx++;

mult = new JButton("*");

mult.addActionListener(this);

numPanel.add(mult, gbc);

/**

* Adding div button

*/

gbc.gridx++;

div = new JButton("/");

div.addActionListener(this);

numPanel.add(div, gbc);

/**

* Adding equals button

*/

gbc.gridy++;

gbc.gridx = 0;

gbc.gridwidth = 2;

equal = new JButton("=");

equal.addActionListener(this);

numPanel.add(equal, gbc);

/**

* Adding clear button

*/

gbc.gridx += 2;

gbc.gridwidth = 1;

clear = new JButton("C");

clear.addActionListener(this);

numPanel.add(clear, gbc);

}

public static void main(String[] args) {

new Calculator();

}

/**

* method to append an operator to the textfield

*/

public void appendOperator(String op) {

String text = ioText.getText();

if (text.endsWith(" + ") || text.endsWith(" - ")

|| text.endsWith(" / ") || text.endsWith(" * ")

|| text.endsWith(".")) {

//replacing the existing operator with new one

text = text.substring(0, text.length() - 3);

}

text = text + " " + op + " ";

ioText.setText(text);

}

/**

* * Method to perform the calculation using the ExpressionSolver class I have

* * provided. It is not much complex and you can grab things so easily

* */

public void calculate() {

/**

* * Getting the expression from textfield

* */

String expression = ioText.getText();

//creating an ExpressionSolver object

ExpressionSolver solver=new ExpressionSolver(expression);

//solving

solver.solveExpression();

//displaying the result

ioText.setText(solver.getAnswer());

}

@Override

public void actionPerformed(ActionEvent e) {

if (ioText.getText().equalsIgnoreCase("Infinity")

|| ioText.getText().equalsIgnoreCase("NAN")) {

/**

* * If the textfield contains a previous value as infinity or NaN

* * (divided by 0), removing it

* */

ioText.setText("");

}

/**

* * Getting the source of click

* */

Object ob = e.getSource();

for (int i = 0; i

/**

* * If any of the numbers are clicked, appending that number

* */

if (ob.equals(numbers[i])) {

ioText.setText(ioText.getText().concat("" + i));

return;

}

}

if (ob.equals(dot)) {

/**

* * dot button clicked

* */

if (!ioText.getText().endsWith(".")) {

ioText.setText(ioText.getText().concat("."));

}

} else if (ob.equals(add)) {

appendOperator("+");

} else if (ob.equals(sub)) {

appendOperator("-");

} else if (ob.equals(mult)) {

appendOperator("*");

} else if (ob.equals(div)) {

appendOperator("/");

} else if (ob.equals(clear)) {

ioText.setText("");

} else if (ob.equals(equal)) {

/**

* * Equals button clicked, performing calculation

* */

calculate();

}

}

}

______________________________________________________

import java.util.ArrayList;

/**

* a class implemented to solve expressions

*/

public class ExpressionSolver {

// question in String format

private String question;

// array list containing each operand/operator in the expression

private ArrayList expression;

// answer in String format

private String answer;

// constructor taking an expression

public ExpressionSolver(String s) {

// setting expression

setExpression(s);

answer = "";

}

// method to set an expression

public void setExpression(String s) {

question = s;

// resetting array list

expression = new ArrayList();

// splitting input by white space to create an array of strings

String fields[] = s.split(" ");

// addinge each element to array list

for (String str : fields) {

expression.add(str);

}

answer = "";

}

// method to solve the expression. Assuming that the expression is in valid

// format

public void solveExpression() {

double operand1,operand2,result;

// looping as long there is a / operator present

while (expression.contains("/")) {

// finding index of /

int index = expression.indexOf("/");

// finding operands before and after index

operand1 = Double.parseDouble(expression.get(index - 1));

operand2 = Double.parseDouble(expression.get(index + 1));

// performing division operation

result = operand1 / operand2;

// replacing second operand

expression.set(index + 1, "" + result);

// removing operator

expression.remove(index);

// removing first operand

expression.remove(index - 1);

}

// doing the same for * operator

while (expression.contains("*")) {

int index = expression.indexOf("*");

operand1 = Double.parseDouble(expression.get(index - 1));

operand2 = Double.parseDouble(expression.get(index + 1));

result = operand1 * operand2;

expression.set(index + 1, "" + result);

expression.remove(index);

expression.remove(index - 1);

}

// doing the same for - operator

while (expression.contains("-")) {

int index = expression.indexOf("-");

operand1 = Double.parseDouble(expression.get(index - 1));

operand2 = Double.parseDouble(expression.get(index + 1));

result = operand1 - operand2;

expression.set(index + 1, "" + result);

expression.remove(index);

expression.remove(index - 1);

}

// doing the same for + operator

while (expression.contains("+")) {

int index = expression.indexOf("+");

operand1 = Double.parseDouble(expression.get(index - 1));

operand2 = Double.parseDouble(expression.get(index + 1));

result = operand1 + operand2;

expression.set(index + 1, "" + result);

expression.remove(index);

expression.remove(index - 1);

}

// if the expression is valid and had the operators +,-,* and / only,

// then the answer will be in index 0

answer = expression.get(0);

}

public String getAnswer() {

return answer;

}

public String toString() {

//returning question and answer

return question + " = " + answer;

}

}

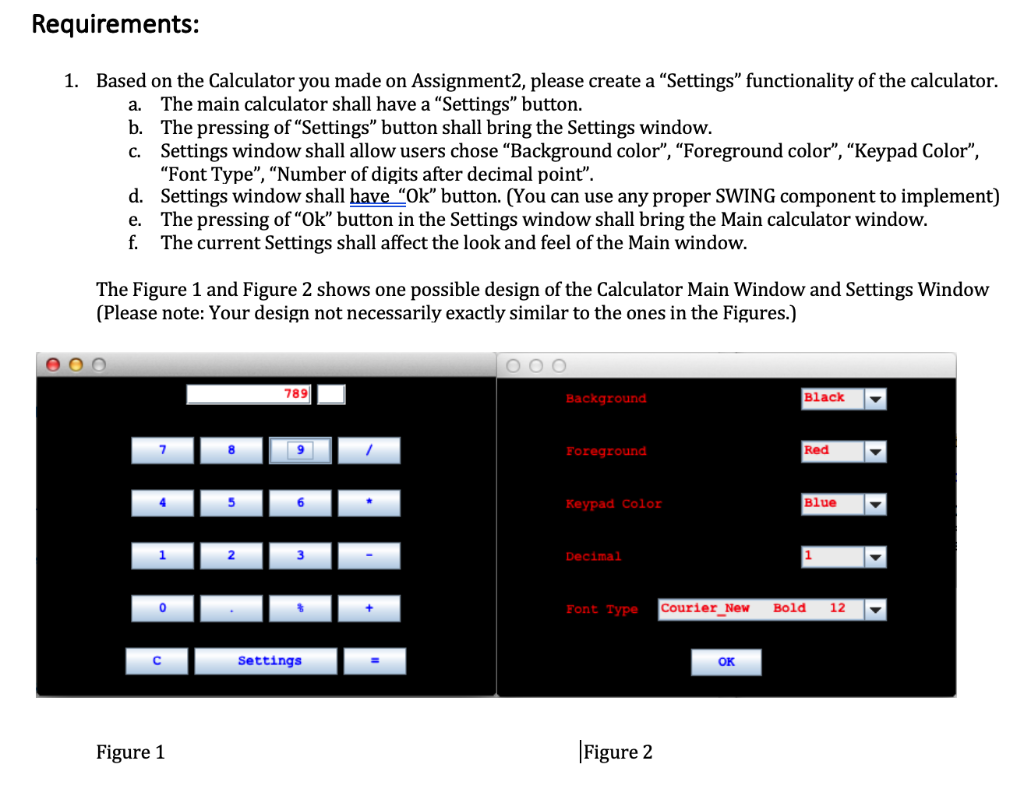

Requirements: 1. Based on the Calculator you made on Assignment2, please create a "Settings" functionality of the calculator. a. The main calculator shall have a "Settings" button b. The pressing of "Settings" button shall bring the Settings window. c. Settings window shall allow users chose "Background color", "Foreground color", "Keypad Color", "Font Type", "Number of digits after decimal point". d. Settings window shall have "Ok" button. (You can use any proper SWING component to implement) e. The pressing of "Ok" button in the Settings window shall bring the Main calculator window f. The current Settings shall affect the look and feel of the Main window. The Figure 1 and Figure 2 shows one possible design of the Calculator Main Window and Settings Window (Please note: Your design not necessarily exactly similar to the ones in the Figures.) 789 Background Black | Foreground Red 6 Keypad Color Blue 1 2 Decima) Font Type Courier New Bold 12 Settings OK Figure 1 Figure 2 Requirements: 1. Based on the Calculator you made on Assignment2, please create a "Settings" functionality of the calculator. a. The main calculator shall have a "Settings" button b. The pressing of "Settings" button shall bring the Settings window. c. Settings window shall allow users chose "Background color", "Foreground color", "Keypad Color", "Font Type", "Number of digits after decimal point". d. Settings window shall have "Ok" button. (You can use any proper SWING component to implement) e. The pressing of "Ok" button in the Settings window shall bring the Main calculator window f. The current Settings shall affect the look and feel of the Main window. The Figure 1 and Figure 2 shows one possible design of the Calculator Main Window and Settings Window (Please note: Your design not necessarily exactly similar to the ones in the Figures.) 789 Background Black | Foreground Red 6 Keypad Color Blue 1 2 Decima) Font Type Courier New Bold 12 Settings OK Figure 1 Figure 2
