JAVA PROGRAMMING LANGUAGE!!!!!!! PLEASE MAKE THE PROGRAM WITH A DESIGN DIAGRAM AND A UML PLEASE! PLEASE MAKE THE PROGRAM WITH A DESIGN DIAGRAM AND A

JAVA PROGRAMMING LANGUAGE!!!!!!!

PLEASE MAKE THE PROGRAM WITH A DESIGN DIAGRAM AND A UML PLEASE!

PLEASE MAKE THE PROGRAM WITH A DESIGN DIAGRAM AND A UML PLEASE! CHECK THE EXAMPLE DESIGN DIAGRAM BELOW!

ALSO INCLUDE THE FOLLOWING CLASSES

BANK.java BankAccount.java SavingsAccount.java

PLEASE ALSO INCLUDE COMMENTS!

EXAMPLE OF DESIGN DIAGRAM:

image text in transcribed

Bank Account and Savings Account Classes

Design an abstract class named BankAccount to hold the following data for a bank account:

Balance

Number of deposits this month

Number of withdrawals

Annual interest rate

Monthly service charges

The class should have the following methods:

Constructor: The constructor should accept arguments for the balance and annual interest rate.

deposit: A method that accepts an argument for the amount of the deposit The method should add the argument to the account balance. It should also increment the variable holding the number of deposits.

Withdraw: A method that accepts an argument for the amount of the with drawal. The method should subtract the argument from the balance. It should also increment the variable holding the number of withdrawals.

caleInterest: A method that updates the balance by calculating the monthly interest earned by the account, and adding this interest to the balance. This is performed by the following formulas:

Monthly Interest Rate = (Annual Interest Rate /12) Monthly Interest = Balance * Monthly Interest Rate

Balance = Balance + Monthly Interest

monthlyProcess: A method that subtracts the monthly service charges from the balance, calls the calcInterest method, and then sets the variables that hold the number of withdrawals, number of deposits, and monthly service charges to zero.

Next, design a Savings Account class that extends the BankAccount class. The Savings Account class should have a status field to represent an active or inactive account. If the balance of a savings account falls below $25, it becomes inactive. The status field could be a boolean variable.) No more withdrawals may be made until the balance is raised above $25, at which time the account becomes active again. The savings account class should have the following methods:

Withdraw: A method that determines whether the account is inactive before a withdrawal is made. (No withdrawal will be allowed if the account is not active.) A withdrawal is then made by calling the superclass version of the method.

Deposit: A method that determines whether the account is inactive before a deposit is made. If the account is inactive and the deposit brings the balance above $25, the account becomes active again. A deposit is then made by calling the superclass version of the method.

monthlyProcess: Before the superclass method is called, this method checks the num ber of withdrawals. If the number of withdrawals for the month is more than 4, a service charge of $1 for each withdrawal above 4 is added to the superclass field that holds the monthly service charges. (Don't forget to check the account balance after the service charge is taken. If the balance falls below $25, the account becomes inactive.)

ALSO INCLUDE THE FOLLOWING CLASSES

BANK.java BankAccount.java SavingsAccount.java

PLEASE MAKE THE PROGRAM WITH A DESIGN DIAGRAM AND A UML PLEASE!

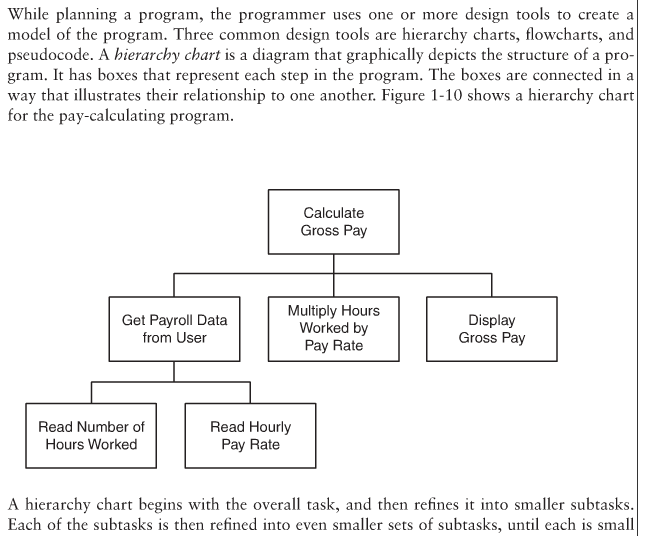

While planning a program, the programmer uses one or more design tools to create a model of the program. Three common design tools are hierarchy charts, flowcharts, and pseudocode. A hierarchy chart is a diagram that graphically depicts the structure of a pro- gram. It has boxes that represent each step in the program. The boxes are connected in a way that illustrates their relationship to one another. Figure 1-10 shows a hierarchy chart for the pay-calculating program. Calculate Gross Pay Multiply Hours Worked by Pay Rate Get Payroll Data from User Display Gross Pay Read Hourly Pay Rate Read Number of Hours Worked A hierarchy chart begins with the overall task, and then refines it into smaller subtasks. Each of the subtasks is then refined into even smaller sets of subtasks, until each is small While planning a program, the programmer uses one or more design tools to create a model of the program. Three common design tools are hierarchy charts, flowcharts, and pseudocode. A hierarchy chart is a diagram that graphically depicts the structure of a pro- gram. It has boxes that represent each step in the program. The boxes are connected in a way that illustrates their relationship to one another. Figure 1-10 shows a hierarchy chart for the pay-calculating program. Calculate Gross Pay Multiply Hours Worked by Pay Rate Get Payroll Data from User Display Gross Pay Read Hourly Pay Rate Read Number of Hours Worked A hierarchy chart begins with the overall task, and then refines it into smaller subtasks. Each of the subtasks is then refined into even smaller sets of subtasks, until each is small
