Label Each Step:

PROJECT INSTRUCTIONS

Usethe project responseWord documentposted onD2Land begin to respondto all questions.

Be sure and address each question/request in detailproviding emphasis on project objectives.

All graphs/charts/tables are to be produced in the native format (excel, project, etc.) and then copied into the response area of the Word document.

PostBOTHthe Word document with all responses/graphs/charts/tables AND the objective evidence (the native documents from where you copied the charts/graphs/tables)

Project Start Date:September 4,2018

FinalProject Due Date:December 7,2018

GRADING CRITERIA

Coverall points in the response. Use the Word document posted as the template for all responses and task work. The Word document will be the formal response back to Astin Martin Graphics. All tables, graphics,andfigures created by other tools should be copiedand pasted in the Word document maintaining a professional appearance with appropriate labeling of all figures, diagrams, tables, artifacts pasted.As this is a professional document, do not leave template examples in your submission.

Where applicable, provideclear documentation, graphics, diagrams, and tables that help clarify any responses.

STATEMENT OF WORK SUMMARY

RFP awarded for specific web services which will be incorporated into a web graphics company (Astin Martin Graphics LLC). Topical level requirements for the software were provided. Deliverable products include:

-Systems Engineering to provide appropriate requirements decomposition-Software Engineering to provide design/development/unit test of software-System Test Engineering to provide component and enterprise level testing-Quality Engineering to provide quality control through the entire development life cycle-Management functions to include all primary functions (project management, finance, planning & scheduling, Overhead support (contracts, engineering matrix, etc.)

Award date of May 15 and required completion date (deliverables provided) of November 15.

Astin Martin Graphics request of planned deliverables, acceptance criteria, quality plan, and work breakdown structure. These items need to be provided in an acceptable time for Astin Martin to review and approve.

Astin Martin Graphics further requests other deliverables to include final software (source and binary) which meets all approved acceptance criteria, associated design documents (system and development level)

All project questions or request for project scope changes should be directed to the Astin Martin Graphic designee (course instructor).

There is no requirement relative to project tools used to generate the required data.

Topical requirementsinclude:

-System Engineering: UML design appropriate graphic widgets to display aeronautical expanse gauges within the technical specs guidelines for twenty-five different visual aspects. Include appropriate level of peer review. Design should include graphical mock-up of gauges.-System Engineering: Derive component level requirements for Software Engineering to design, code, and unit test and System Test can provide System and Enterprise level testing-Software Engineering: Provide appropriate level design artifacts from System Engineering UML design artifacts. Include appropriate level of peer review.-Software Engineering: Code and Unit Test software modules that execute the software which meets all topical and derived requirements-System Test Engineering: Derive sell-off acceptance criteria. Include appropriate peer review (including System Engineering) and customer approval.-System Test Engineering: Derive System and Enterprise Level Test Cases. Include appropriate level of peer review.-System Test Engineering: Execute test cases as software modules become available-Quality Engineering: Provide quality checks during the processes described for System Engineering, Software Engineering, and System Test Engineering as appropriate-Include the following customer related reviews: Design Review (after System Engineering completes design artifacts), Pre-Ship Review (provided prior to Astin Martin Graphics acceptance of software), and Final Acceptance Test (software demonstration at customer facility showing software meets all requirements as installed)

Approved labor rates as follows:

-System Engineer I: 43.15-System Engineer II: 48.37-System Engineer III: 51.17-Lead System Engineer: 58.91-Software Engineer I: 41.38-Software Engineer II: 47.62-Software Engineer III: 51.01-Lead Software Engineer: 59.83-System Test Engineer I: 40.78-System Test Engineer II: 43.79-System Test Engineer III: 49.25-Lead System Test Engineer: 51.25-Quality Engineer I: 40.38-Quality Engineer II: 47.55-Quality Engineer III: 51.01-Lead Quality Engineer: 59.83-Project Manager: 91.22 (LOE- Level of Effort)-Chief Engineer: 72.41 (LOE- Level of Effort)

Approvedoverheadrates as follows:

-Finance: 7.6% of total hours-Planning & Scheduling: 6.2% of total hours-Management (Contracts/Senior Management): 2.1% of total hours-Facility: 1.3% of total hours-HR/Staffing: 0.54% of total hours

ACTIVITY / TASK LIST BY LOWEST WBS LEVEL LEG

2.1 Select Layout

System Engineering: Create outline of UML design.

Software Engineering: Assist system engineering.

Quality Engineering: Provide quality checks

2.2 Design Graphics

System Engineering: Design appropriate graphic widgets to display aeronautical expanse gauges within the technical specs guidelines for twenty-five different visual aspects. Include appropriate level of peer review.

Software Engineering: Assist system engineering.

Quality Engineering: Provide quality checks.

2.3 Approve design

System Engineering: Derive component level requirements for Software Engineering to design, code, and unit test and System Test can provide System and Enterprise level testing.

Software Engineering: Assist system engineering

System Test Engineering: Derive sell-off acceptance criteria. Include appropriate peer review (including System Engineering) and customer approval.

Quality Engineering: Provide quality checks.

3.1 Write content

System Engineering: Assist software engineering

Software Engineering: Code and Unit Test software modules that execute the software which meets all topical and derived requirements.

Quality Engineering: Provide quality checks.

3.2 Approve content

System Engineering: Assist software engineering

Software Engineering: Provide appropriate level design artifacts from System Engineering UML design artifacts. Include appropriate level of peer review.

System Test Engineering: Derive sell-off acceptance criteria. Include appropriate peer review (including System Engineering) and customer approval.

Quality Engineering: Provide quality checks.

3.3 Insert content in pages

System Engineering: Assist software engineering

Software Engineering: Check the function

Quality Engineering: Provide quality checks.

4.1 Set up web service on test

System Engineering: Corporate with other engineers for opinion

Software Engineering: Corporate with other engineers for opinion

System Test Engineering: Derive System and Enterprise Level Test Cases. Include appropriate level of peer review.

Quality Engineering: Provide quality checks.

4.2 Perform tests

System Engineering: Corporate with other engineers for opinion

Software Engineering: Corporate with other engineers for opinion

System Test Engineering: Execute test cases as software modules become available

Quality Engineering: Provide quality checks.

4.3 Approve web service

System Test Engineering: Assist Quality Engineering

Quality Engineering: Quality checks during the processes described for System Engineering, Software Engineering, and System Test Engineering as appropriate

Include the following customer related reviews: Design Review (after System Engineering completes design artifacts), Pre-Ship Review (provided prior to Astin Martin Graphics acceptance of software).

4.4 Set up web service on live environment

System Test Engineering: Assist Quality engineering

Quality Engineering: quality checks, and Final Acceptance Test (software demonstration at customer facility showing software meets all requirements as installed) installed)

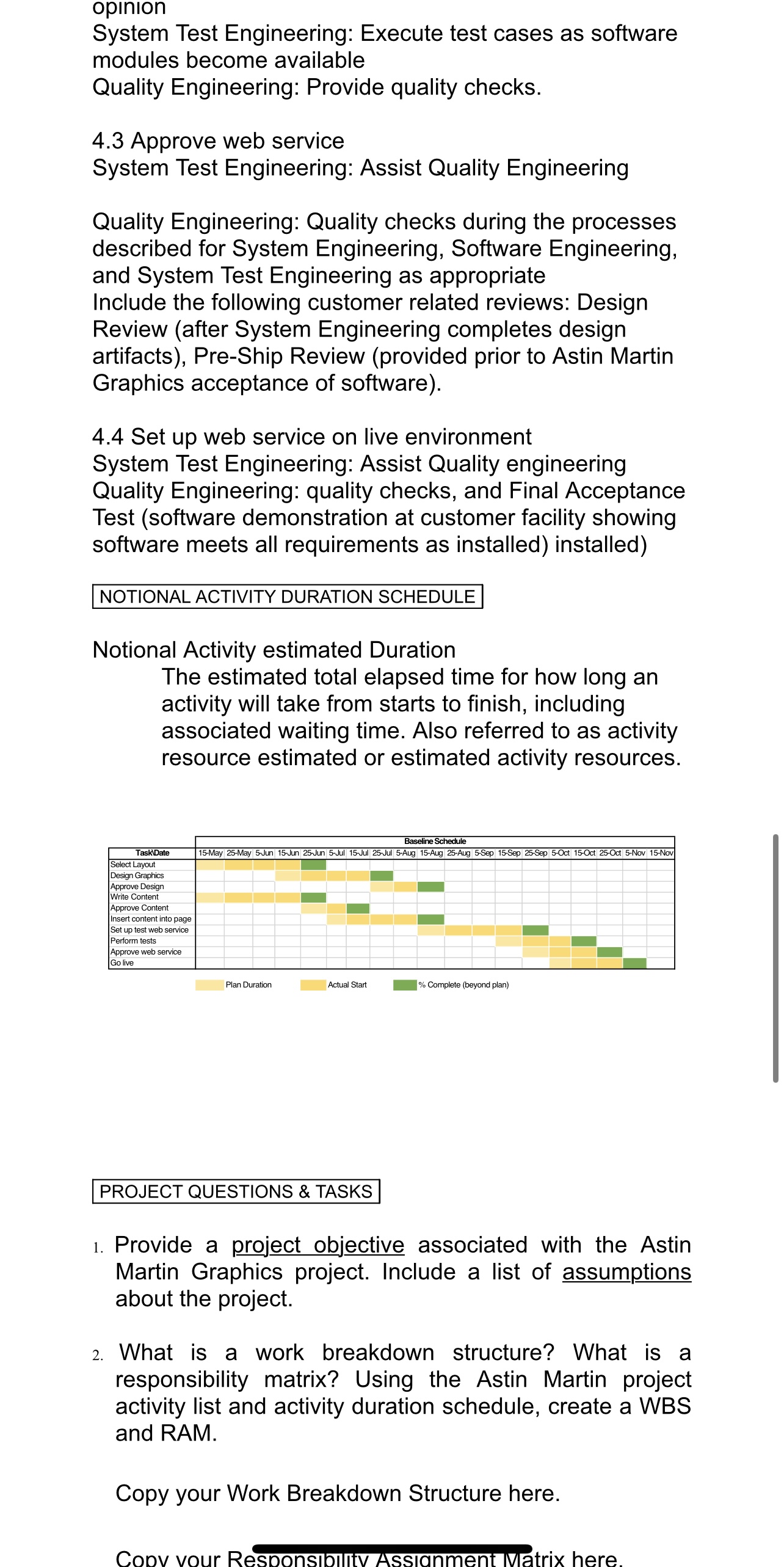

NOTIONALACTIVITY DURATION SCHEDULE

NotionalActivity estimated Duration

The estimated total elapsed time for how long an activity will take from starts to finish, including associated waiting time. Also referred to as activity resource estimated or estimated activity resources.

PROJECT QUESTIONS & TASKS

1.Provide aproject objectiveassociated with the Astin Martin Graphics project. Include a list ofassumptionsabout the project.

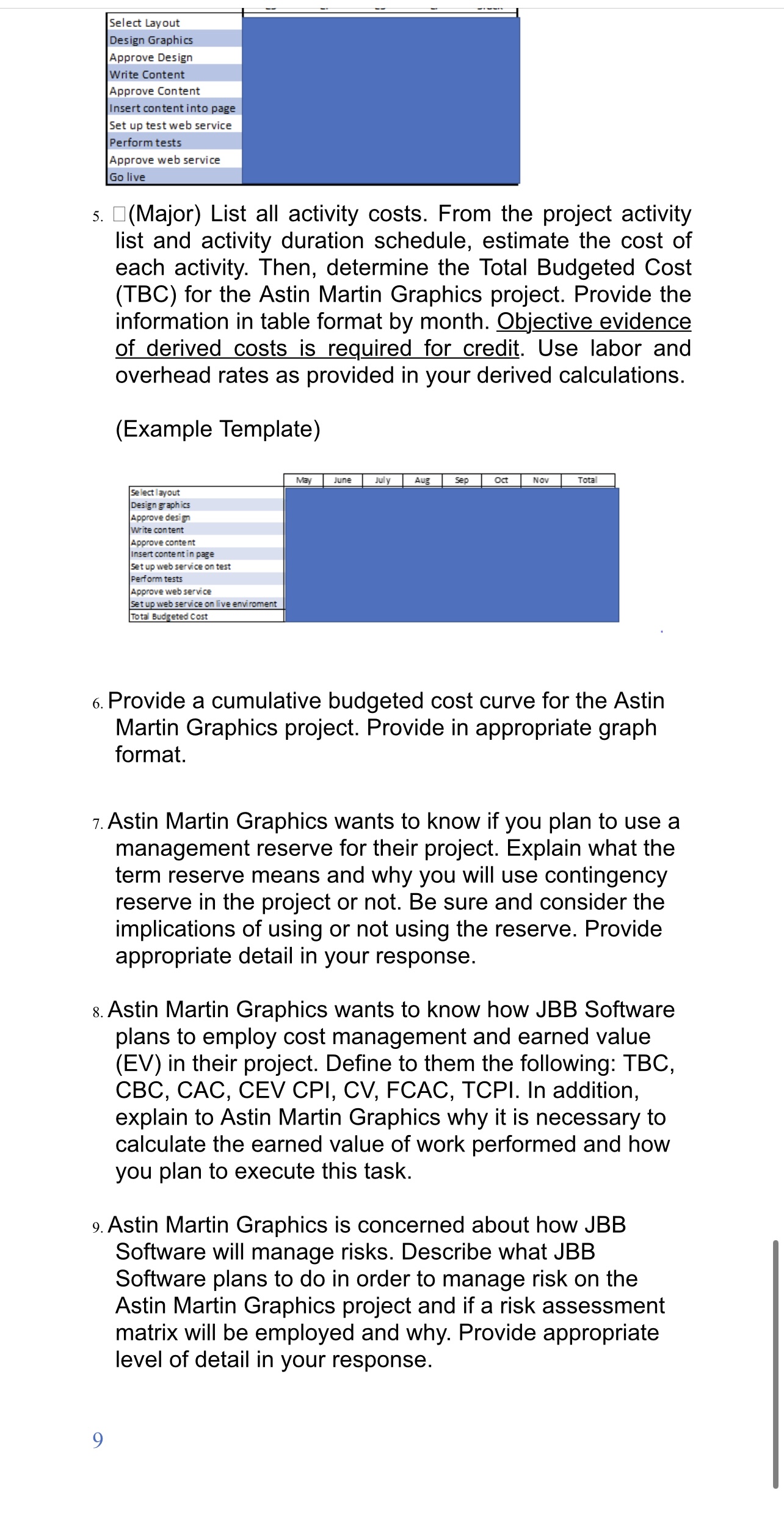

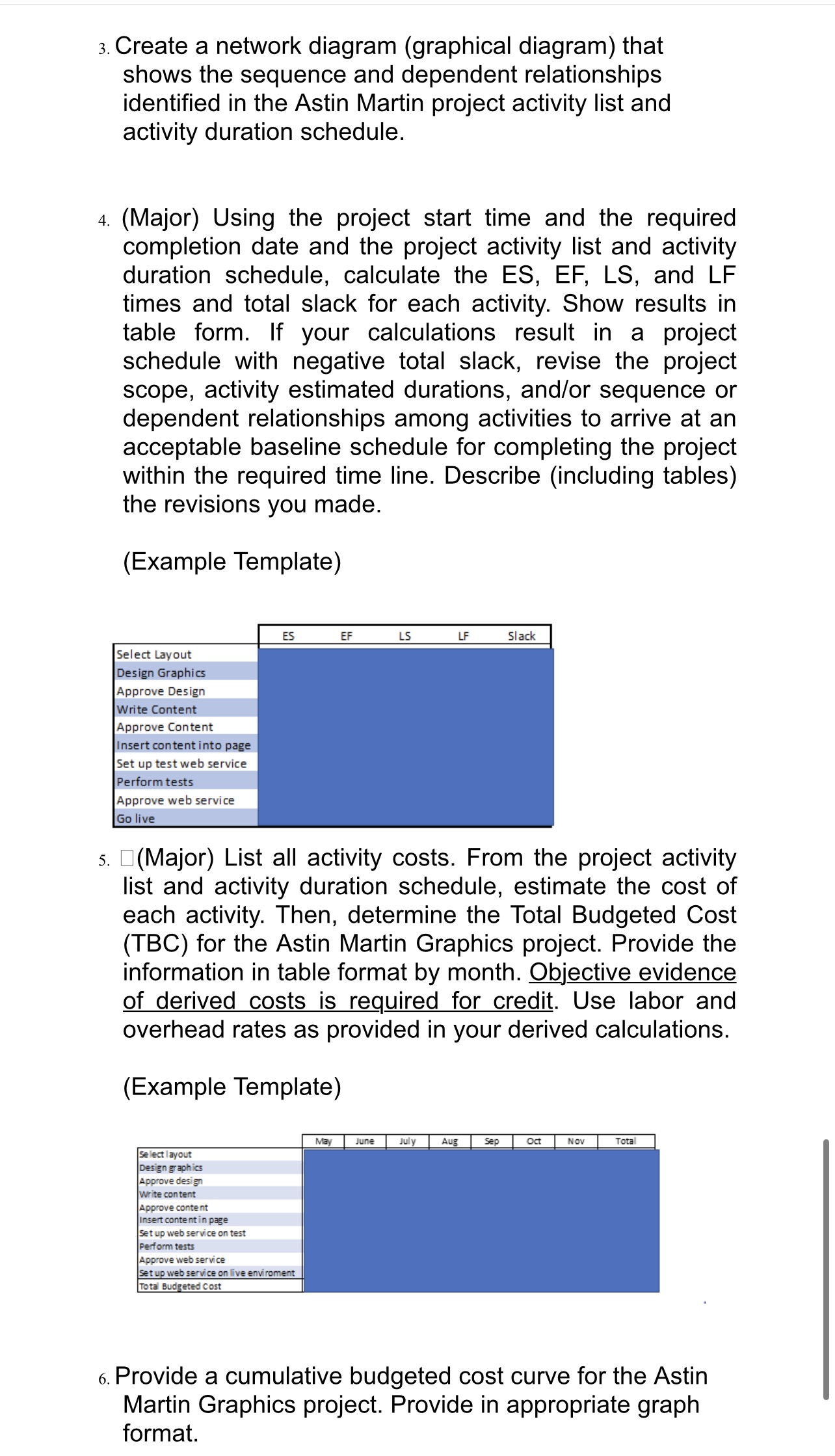

2.What is a work breakdown structure? What is a responsibility matrix?Using the Astin Martin projectactivity list and activity duration schedule, create WBS and RAM.

opinion System Test Engineering: Execute test cases as software modules become available Quality Engineering: Provide quality checks. 4.3 Approve web service System Test Engineering: Assist Quality Engineering Quality Engineering: Quality checks during the processes described for System Engineering, Software Engineering, and System Test Engineering as appropriate Include the following customer related reviews: Design Review (after System Engineering completes design artifacts), Pre-Ship Review (provided prior to Astin Martin Graphics acceptance of software). 4.4 Set up web service on live environment System Test Engineering: Assist Quality engineering Quality Engineering: quality checks, and Final Acceptance Test (software demonstration at customer facility showing software meets all requirements as installed) installed) NOTIONAL ACTIVITY DURATION SCHEDULE I Notional Activity estimated Duration The estimated total elapsed time for how long an activity will take from starts to finish, including associated waiting time. Also referred to as activity resource estimated or estimated activity resources. Perlorm tests Approve web Service Go live Plan Duration Actual Start \"A. Complete (beyond plan) PROJECT QUESTIONS & TASKS 1. Provide a miect objective associated with the Astin Martin Graphics project. Include a list of assumptions about the project. 2. What is a work breakdown structure? What is a responsibility matrix? Using the Astin Martin project activity list and activity duration schedule, create a WBS and RAM. Copy your Work Breakdown Structure here. Coov vour ResponSIbllifv Assronmenf Matrix here. PROJECT QUESTIONS & TASKS 1. Provide a project objective associated with the Astin Martin Graphics project. Include a list of assumptions about the project. 2. What is a work breakdown structure? What is a responsibility matrix? Using the Astin Martin project activity list and activity duration schedule, create a WBS and RAM. Copy your Work Breakdown Structure here. Copy your Responsibility Assignment Matrix here. (Example RAM Template) Lead System Test Engineer Lead Software Engineer System Test Engineer III System Test Engineer II Lead System Engineer System Test Engineer I Lead Quality Engineer Software Engineer III Software Engineer II Software Engineer I Quality Engineer III Quality Engineer II Quality Engineer I System Engeer Ill System Engeer II System Engeer I Project Manager Chief Engineer WBS Item Work Item Web Service Design 12.1 2.2 2.3 3 3.1 3.2 3.3 4.1 4.2 4.3 4.4 Key: P =Primary responsibility; S = Support responsibility 3. Create a network diagram (graphical diagram) that shows the sequence and dependent relationships identified in the Astin Martin project activity list and activity duration schedule. 4. (Major) Using the project start time and the required completion date and the project activity list and activity duration schedule, calculate the ES, EF, LS, and LF times and total slack for each activity. Show results in table form. If your calculations result in a project schedule with negative total slack, revise the project scope, activity estimated durations, and/or sequence or dependent relationships among activities to arrive at an acceptable baseline schedule for completing the project within the required time line. Describe (including tables) the revisions you made. (Example Template) Slack3. Create a network diagram (graphical diagram) that shows the sequence and dependent relationships identified in the Astin Martin project activity list and activity duration schedule. 4. (Major) Using the project start time and the required completion date and the project activity list and activity duration schedule, calculate the ES, EF, LS, and LF times and total slack for each activity. Show results in table form. If your calculations result in a project schedule with negative total slack, revise the project scope, activity estimated durations, and/or sequence or dependent relationships among activities to arrive at an acceptable baseline schedule for completing the project within the required time line. Describe (including tables) the revisions you made. (Example Template) ES EF LS LF Slack Select Layout Design Graphics Approve Design Write Content Approve Content Insert content into page Set up test web service Perform tests Approve web service Go live 5. (Major) List all activity costs. From the project activity list and activity duration schedule, estimate the cost of each activity. Then, determine the Total Budgeted Cost (TBC) for the Astin Martin Graphics project. Provide the information in table format by month. Objective evidence of derived costs is required for credit. Use labor and overhead rates as provided in your derived calculations. (Example Template) May June July Aug Sep Oct Nov Total Select layout Design graphics Approve design Write content Approve content Insert content in page Set up web service on test Perform tests Approve web service Set up web service on live enviroment Total Budgeted Cost 6. Provide a cumulative budgeted cost curve for the Astin Martin Graphics project. Provide in appropriate graph format.Select Layout Design Graphic Approve Design Write Content Approve Content insert content into page Set up test web service Perform tests Approve web service 60 live 5. (Major) List all activity costs. From the project activity list and activity duration schedule, estimate the cost of each activity. Then, determine the Total Budgeted Cost (TBC) for the Astin Martin Graphics project. Provide the information in table format by month. wective evidence of derived costs is required for credit. Use labor and overhead rates as provided in your derived calculations. (Example Template) Ma; June in y Aug Sea on Nov Tm 2' up \"'95 SR\"! CE an {ER Periormmsts App'meheb se'vce sex wehsewiceon iveemrimmem _l 6. Provide a cumulative budgeted cost curve for the Astin Martin Graphics project. Provide in appropriate graph format. 7.Astin Martin Graphics wants to know if you plan to use a management reserve for their project. Explain what the term reserve means and why you will use contingency reserve in the project or not. Be sure and consider the implications of using or not using the reserve. Provide appropriate detail in your response. s_Astin Martin Graphics wants to know how JBB Software plans to employ cost management and earned value (EV) in their project. Define to them the following: TBC, CBC, CAC, CEV CPI, CV, FCAC, TCPI. In addition, explain to Astin Martin Graphics why it is necessary to calculate the earned value of work performed and how you plan to execute this task. 9. Astin Martin Graphics is concerned about how JBB Software will manage risks. Describe what JBB Software plans to do in order to manage risk on the Astin Martin Graphics project and if a risk assessment matrix will be employed and why. Provide appropriate level of detail in your response
