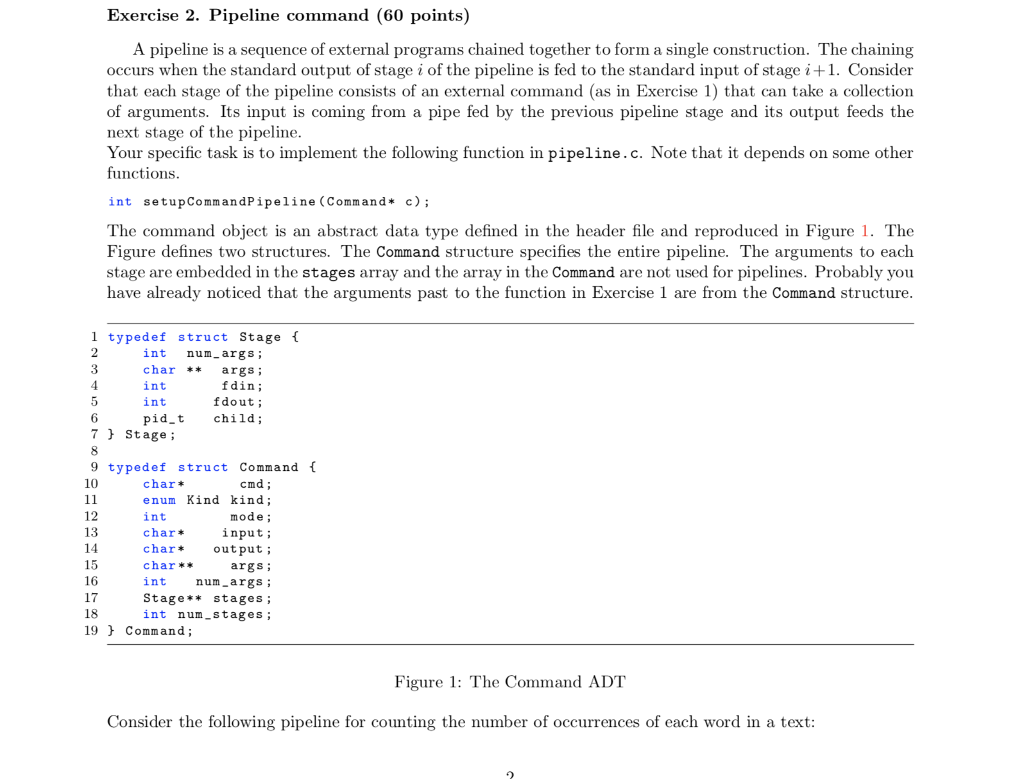

Looking to get an implementation for the spawnStage and setupCommandPipeline functions. Thanks!

mshell.h:

#ifndef _MSHELL_H_

#define _MSHELL_H_

#define R_NONE 0 /* No redirections */

#define R_INPUT 1 /* input redirection bit */

#define R_OUTPUT 2 /* output redirection bit */

#define R_APPEND 4 /* append redirection bit */

#define TRUE 1

#define FALSE 0

#define ERROR_MSG(x) fprintf(stderr, "%s ", (x))

enum Kind {

noCMD = 0, exitCMD, cdCMD, basicCMD, pipelineCMD

};

typedef struct Stage {

int num_args;

char ** args;

int fdin;

int fdout;

pid_t child;

} Stage;

typedef struct Command {

char* cmd;

enum Kind kind;

int mode;

char* input;

char* output;

char** args;

int num_args;

Stage** stages;

int num_stages;

} Command;

int basicExecute(char* com,int mode,char* input,char* output,char** args);

int setupCommandPipeline(Command * c);

/* You may call this function to see the stage you are dealing with */

void printStage(Stage*);

#endif

mshell.c:

#define _POSIX_C_SOURCE 200809L

#include

#include

#include

#include

#include

#include

#include

#include

#include

#include

#include

#include "mshell.h"

#define BUFFER_SIZE 1024

#define MAXRD 255

static int extractRedirect(char* buf, char* input, char* output);

static char* skipWS(char* arg);

static Command* addCommandStage(Command* c, Stage* s);

static void freeStage(Stage* s);

/* Skip white spaces.

* Returns a pointer to the first non-space character

* or NULL if there is none.

* */

static char * skipWS(char * arg)

{

while (arg && *arg && isspace(*arg))

arg++;

return arg;

}

/*

* Returns NULL on errors

* Otherwise, returns a pointer to a string, which can be empty!

* pos will be changed to the position of NULL or the character after the current argument.

*/

static char *get_argument(char * buffer, int *pos)

{

char *p0 = skipWS(buffer + *pos);

if (! *p0) // empty argument

return p0;

if (*p0 == '\'' || *p0 == '"') {

int qmark = *p0 ++;

// quoted. search for the first qmark

char *p = strchr(p0, qmark);

if (p == NULL) {

ERROR_MSG("String missing the ending quotation mark.");

return NULL;

}

*p ++ = 0;

*pos = p - buffer;

}

else {

// search for the first WB

char *p = p0;

while (*p && ! isspace(*p))

p ++;

if (*p) {

*p++ = 0;

}

*pos = p - buffer;

}

return p0;

}

#if 0

/* remove trailing white spaces */

int trimString(char* buf, int len)

{

char* ptr = buf + len - 1;

while (ptr >= buf && isspace(*ptr))

ptr--, len--;

*++ptr = 0;

return len;

}

#endif

/* Allocate memory for a new command */

static Command* allocCommand()

{

Command * r = (Command*)calloc(1, sizeof(Command));

// The following assignments are not really necessary.

r->cmd = NULL;

r->kind = noCMD;

r->mode = R_NONE;

return r;

}

/* free the space of a command */

static Command * freeCommand(Command * c)

{

if (c->cmd)

free(c->cmd);

if (c->input)

free(c->input);

if (c->output)

free(c->output);

for (int i = 0; i num_args; i++)

if (c->args[i])

free(c->args[i]);

free(c->args);

if (c->stages) {

for(int j = 0; j num_stages; j++)

freeStage(c->stages[j]);

free(c->stages);

}

free(c);

return NULL;

}

static Command * setCommand(Command* c, enum Kind k, char* com)

{

c->kind = k;

if (c->cmd)

free(c->cmd);

c->cmd = strdup(com);

return c;

}

// allocate (nb+1) pointers

// copy strings

// set the last pointer to be NULL

static Command * setCommandArgs(Command * c, int na, char** args)

{

c->num_args = na + 1;

c->args = (char**) malloc(sizeof(char*) * c->num_args);

for (int i = 0; i

c->args[i] = strdup(args[i]);

c->args[na] = NULL;

return c;

}

static Command* addCommandStage(Command* c, Stage* s)

{

printf("New stage:");

printStage(s);

c->stages = realloc(c->stages, sizeof(Stage*) * (c->num_stages + 1));

c->num_stages += 1;

c->stages[c->num_stages - 1] = s;

return c;

}

static void printCommand(Command* c)

{

if (c->mode & R_INPUT)

printf("input);

if (c->mode & R_OUTPUT)

printf("> [%s] ", c->output);

if (c->mode & R_APPEND)

printf(">> [%s] ", c->output);

printf("CORE: %s ", c->cmd);

for(int i = 0; i num_args; i++)

printf("\targs[%d] = %s ", i, c->args[i]);

if (c->num_stages > 0) {

printf("Stages:");

for (int i = 0; i num_stages; i++)

printStage(c->stages[i]);

printf(" ");

}

}

/* ==== functions about stages ==== */

// print all the arguments in this stage

void printStage(Stage* s)

{

printf("\t(%d)[",s->num_args);

for (int i = 0; i num_args; i++)

if (s->args[i] != NULL)

printf("%s ",s->args[i]);

else

printf("null ");

printf("] ");

}

// allocate memory for Stages

static Stage * allocStage(int nba, char ** args)

{

Stage* s = (Stage*)calloc(1, sizeof(Stage));

s->num_args = nba + 1;

s->args = (char**)calloc(s->num_args, sizeof(char*));

s->fdin = s->fdout = -1;

s->child = -1;

for (int i = 0; i

s->args[i] = strdup(args[i]);

// used calloc. s->args[nba] should be NULL.

return s;

}

// free the memory for Stages

static void freeStage(Stage* s)

{

for (int i = 0; i num_args; i++)

if (s->args[i] != NULL) // should be fine to free NULL too

free(s->args[i]);

free(s->args);

free(s);

}

#define GET_ARG(a) do{(a) = get_argument(buffer, &pos); if (!(a)) return freeCommand(c);} while (0)

/* ==== the messy function that makes Command from the command line ==== */

static Command* makeCommand()

{

char buffer[BUFFER_SIZE];

int i;

char ch;

printf("%% ");

fflush(stdout);

// Read a command into buffer

i = 0;

while (i

buffer[i++] = ch;

if (i == BUFFER_SIZE) { // too long

ERROR_MSG("Command is too long. ");

while ((ch = getchar()) != ' ' && ch != EOF);

return NULL;

}

buffer[i] = 0;

Command* c = allocCommand();

if (ch == EOF) {

if (buffer[0])

ERROR_MSG("A command does not end with a new line.");

return setCommand(c, exitCMD, "exit");

}

{ // dealing with indirect

char input[BUFFER_SIZE];

char output[BUFFER_SIZE];

*input = *output = 0;

int mode = extractRedirect(buffer, input, output);

if (mode

return freeCommand(c);

c->mode = mode;

c->input = strdup(input);

c->output = strdup(output);

}

int pos = 0;

char * pipe = strchr(buffer, '|');

if (pipe == NULL) {

// basic command

char * sc;

GET_ARG(sc);

if (*sc == 0) {

if (c->mode)

ERROR_MSG("An empty command with redirect.");

return freeCommand(c);

} else if (!strcmp(sc, "cd")) {

char * a0 = get_argument(buffer, &pos);

char * args[1] = {a0};

return setCommandArgs(setCommand(c, cdCMD, sc), 1, args);

} else if (strcmp(sc,"exit") == 0) {

return setCommand(c,exitCMD,sc);

} else { // basic command

char * args[BUFFER_SIZE];

int na = 0;

char * arg = sc;

while (*arg) {

args[na++] = arg;

assert(na

GET_ARG(arg);

}

return setCommandArgs(setCommand(c, basicCMD, args[0]), na, args);

}

} else { // This is a pipeline.

char * args[BUFFER_SIZE];

int na;

char * arg;

int done = 0;

setCommand(c, pipelineCMD, "");

do {

if (pipe) // if there are more than one stage, turn '|' to NULL

*pipe = 0;

na = 0;

do {

GET_ARG(arg);

if (*arg) {

args[na++] = arg;

assert(na

}

} while (*arg);

if (na == 0) {

ERROR_MSG("Empty pipeline stage.");

return freeCommand(c);

}

addCommandStage(c, allocStage(na, args));

if (pipe) {

pos = (pipe - buffer) + 1;

pipe = strchr(pipe + 1, '|');

}

else

done = 1;

} while (! done);

return c;

}

return c;

}

/* Find a file path, save it to fn.

* Replace the characters in buf with space.

* fn has at least MAXRD bytes.

* Return the pointer to a space or NULL if successful.

* return NULL on erros.

*/

static char * get_redirect_file (char *buf, char *fn)

{

char *p = skipWS(buf);

int ch, i = 0;

while ((ch = *p) != 0) {

if (isalnum(ch) || ch == '.' || ch == '-' || ch == '/' || ch == '_') {

// valid characters in file path

if (i + 1 >= MAXRD) {

ERROR_MSG("File path is too long.");

return NULL;

}

fn[i ++] = ch;

} else {

ERROR_MSG("Invalid characters in file path.");

return NULL;

}

*p ++ = ' ';

}

fn[i] = 0;

return p;

}

/* The routine extracts any redirects and replaces those parts of the command

by whitespaces.

save the input file path in input.

save the output file path in input.

return a negative value on errors.

return a valid mode otherwsie.

*/

static int extractRedirect(char* buf, char* input, char* output)

{

char* ptr = buf; // may use buf directly

int mode = R_NONE;

while (ptr && *ptr) {

int ch = *ptr;

if (ch == '

if (mode & R_INPUT) {

ERROR_MSG("Ambiguous input redirect.");

return -1;

}

ptr[0] = ' ';

ptr = get_redirect_file(ptr + 1, input);

if (ptr == NULL)

return -2;

if (! input[0]) {

ERROR_MSG("Input redirect file name not found.");

return -3;

}

mode |= R_INPUT;

} else if (ch == '>' && ptr[1] == '>') {

if (mode & (R_APPEND | R_OUTPUT)) {

ERROR_MSG("Ambiguous output redirect ");

return -11;

}

ptr[0] = ' ';

ptr[1] = ' ';

ptr = get_redirect_file(ptr + 2, output);

if (ptr == NULL)

return -12;

if (! output[0]) {

ERROR_MSG("Output redirect file name not found.");

return -13;

}

mode |= R_APPEND;

} else if (ch == '>') {

if (mode & (R_APPEND | R_OUTPUT)) {

ERROR_MSG("Ambiguous output redirect ");

return -21;

}

ptr[0] = ' ';

ptr = get_redirect_file(ptr + 1, output);

if (ptr == NULL)

return -22;

if (! output[0]) {

ERROR_MSG("Output redirect file name not found.");

return -23;

}

mode |= R_OUTPUT;

} else

ptr++;

}

return mode;

}

// execut a command

static int executeCommand (Command * c)

{

switch (c->kind) {

case cdCMD: {

// redirect is ignored

int st = chdir(c->args[0]);

if (st == -1)

fprintf(stderr, "cd error: [%s] ", strerror(errno));

return TRUE;

}

case exitCMD:

return FALSE;

case basicCMD: {

return basicExecute(c->cmd,c->mode,c->input,c->output,c->args);

}

case pipelineCMD: {

setupCommandPipeline(c);

return TRUE;

}

case noCMD: {

return TRUE;

}

default:

ERROR_MSG("oops, unknown command type.");

return TRUE;

}

}

int main(int argc,char* argv[])

{

int loop = 1;

while (loop) {

Command * cmd = makeCommand();

if (cmd == NULL)

continue;

printCommand(cmd);

loop = executeCommand(cmd);

freeCommand(cmd);

}

return 0;

}

pipeline.c:

#define _POSIX_C_SOURCE 200809L

#include

#include

#include

#include

#include

#include

#include

#include

#include

#include

#include

#include "mshell.h"

// like a method of Stage. set the input and output fds.

static Stage * setStageInput(Stage * s, int fd)

{

s->fdin = fd;

return s;

}

static Stage * setStageOutput(Stage * s, int fd)

{

s->fdout = fd;

return s;

}

// A pipeline "object" contains

// 1. An array of nbStages stages

// 2. A mode flag to determine whether

// - the pipeline input is redirected

// - the pipeline output is redirected

// Each stage is a structure that encapsulates

// - The number of arguments

// - Each argument (in string form)

// BY DEFAULT THE MAIN PROGRAM CALLS THE PRINT METHOD OF THE COMMAND

// OBJECT. So you can see how the pipeline description is represented/stored

// Your objective:

// * Implement the execute method to create and execute the entire pipeline.

// Hint: all the systems calls seen in class will be useful (fork/exec/open/close/pipe/....)

// Good Luck!

/*

* This is actually the core: fork() and set up pipe.

*

*/

static void spawnStage(Stage* s)

{

// TODO

}

// wait for the pipeline stage to complete.

static void waitStage(Stage* s)

{

int st;

waitpid(s->child, &st, 0);

}

/*

* list:

* 1. Setup 'global' redirections.

* 2. Create all pipes. It is a fatal error if a pipe cannot be created.

* 3. spawn all processes, using spawnStage().

* 4. wait for processes to finish, using waitStage().

*

* The function always returns 1 for now.

*/

int setupCommandPipeline(Command * c)

{

// TODO

return 1;

}

Exercise 2. Pipeline command (60 points) A pipeline is a sequence of external programs chained together to form a single construction. The chaining occurs when the standard output of stage i of the pipeline is fed to the standard input of stage i+1. Consider that each stage of the pipeline consists of an external command (as in Exercise 1) that can take a collection of arguments. Its input is coming from a pipe fed by the previous pipeline stage and its output feeds the next stage of the pipeline Your specific task is to implement the following function in pipeline.c. Note that it depends on some other function:s int setupCommandPipeline (Command* c) The command object is an abstract data type defined in the header file and reproduced in Figure 1. The Figure defines two structures. The Command structure specifies the entire pipeline. The arguments to each stage are embedded in the stages array and the array in the Command are not used for pipelines. Probably you have already noticed that the arguments past to the function in Exercise 1 are from the Command structure 1 typedef struct Stage f int num args char args; int int pidt child; fdin; fdout; 6 7 Stage; 9 typedef struct Command 10 cmd enum Kind kind int char* char ut put; char int num_args; Stage* stages; int num stages; mode input; 12 13 14 15 16 17 18 19 Command; args; Figure 1: The Command ADT Consider the following pipeline for counting the number of occurrences of each word in a text Exercise 2. Pipeline command (60 points) A pipeline is a sequence of external programs chained together to form a single construction. The chaining occurs when the standard output of stage i of the pipeline is fed to the standard input of stage i+1. Consider that each stage of the pipeline consists of an external command (as in Exercise 1) that can take a collection of arguments. Its input is coming from a pipe fed by the previous pipeline stage and its output feeds the next stage of the pipeline Your specific task is to implement the following function in pipeline.c. Note that it depends on some other function:s int setupCommandPipeline (Command* c) The command object is an abstract data type defined in the header file and reproduced in Figure 1. The Figure defines two structures. The Command structure specifies the entire pipeline. The arguments to each stage are embedded in the stages array and the array in the Command are not used for pipelines. Probably you have already noticed that the arguments past to the function in Exercise 1 are from the Command structure 1 typedef struct Stage f int num args char args; int int pidt child; fdin; fdout; 6 7 Stage; 9 typedef struct Command 10 cmd enum Kind kind int char* char ut put; char int num_args; Stage* stages; int num stages; mode input; 12 13 14 15 16 17 18 19 Command; args; Figure 1: The Command ADT Consider the following pipeline for counting the number of occurrences of each word in a text
