Modeling and Simulation Assignment

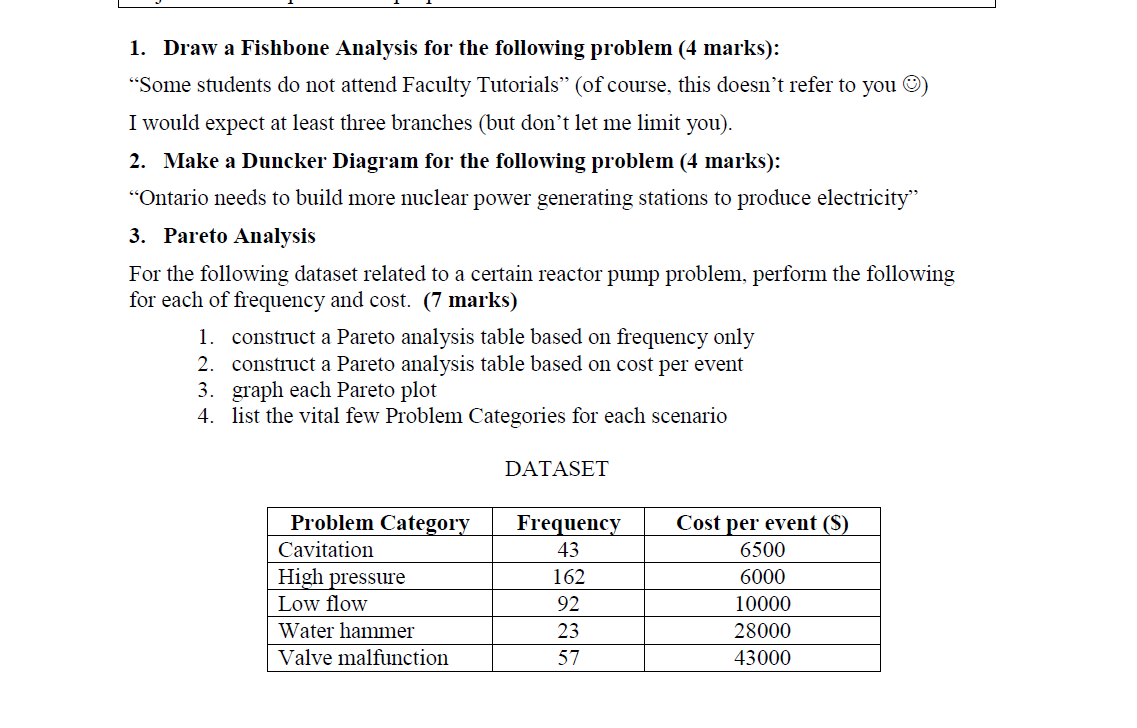

1. Draw a Fishbone Analysis for the following problem (4 marks): "Some students do not attend Faculty Tutorials" (of course, this doesn't refer to you @) I would expect at least three branches (but don't let me limit you). 2. Make a Duncker Diagram for the following problem (4 marks): "Ontario needs to build more nuclear power generating stations to produce electricity" 3. Pareto Analysis For the following dataset related to a certain reactor pump problem, perform the following for each of frequency and cost. (7 marks) 1. construct a Pareto analysis table based on frequency only 2. construct a Pareto analysis table based on cost per event 3. graph each Pareto plot 4. list the vital few Problem Categories for each scenario DATASET Problem Category Frequency Cost per event (S) Cavitation 43 6500 High pressure 162 6000 Low flow 92 10000 Water hammer 23 28000 Valve malfunction 57 43000
