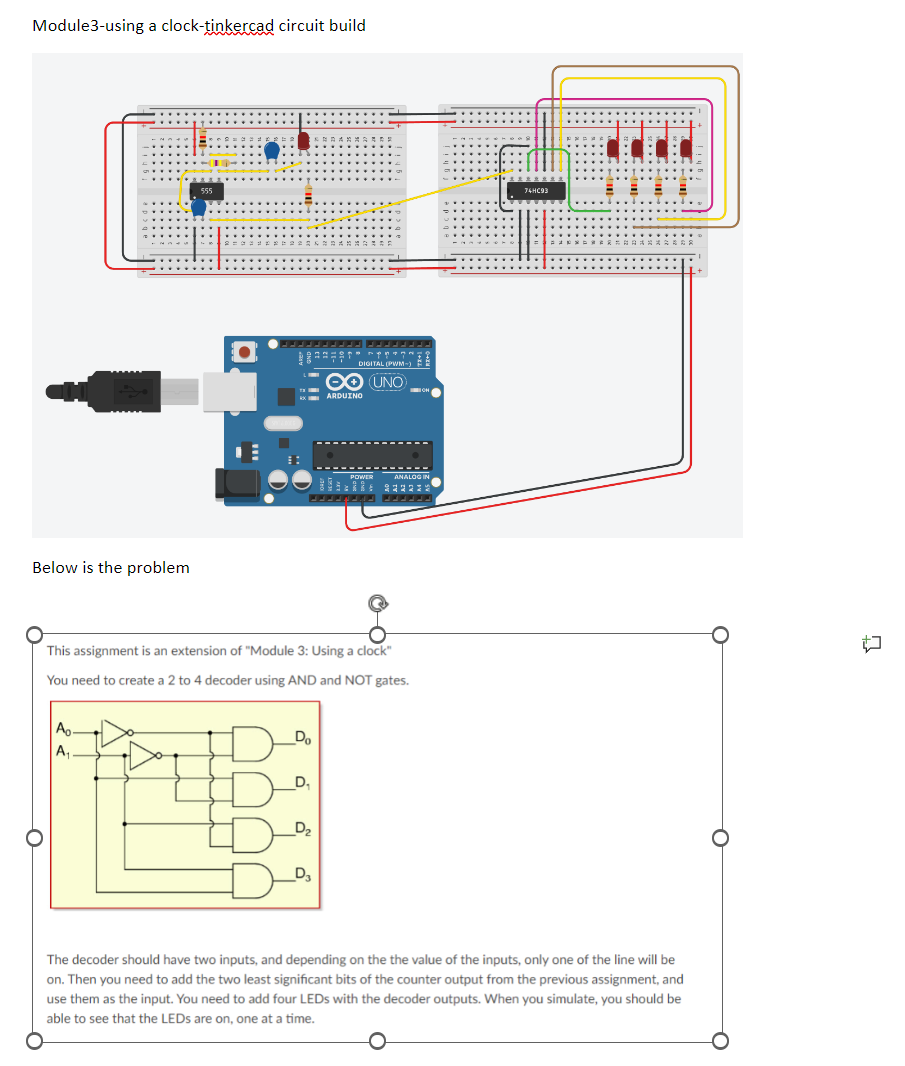

Module 3 - using a clock - tinkercad circuit build Below is the problem This assignment is an extension of Module 3 : Using a

Module3-using a clock-tinkercad circuit build
Below is the problem
This assignment is an extension of "Module 3: Using a clock"
You need to create a 2 to 4 decoder using AND and NOT gates.
The decoder should have two inputs, and depending on the the value of the inputs, only one of the line will be
on. Then you need to add the two least significant bits of the counter output from the previous assignment, and
use them as the input. You need to add four LEDs with the decoder outputs. When you simulate, you should be
able to see that the LEDs are on, one at a time.
