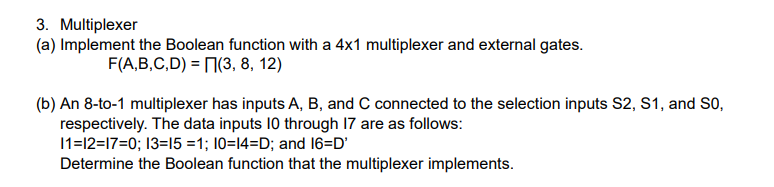

Multiplexer ( a ) Implement the Boolean function with a 4 1 multiplexer and external gates. F ( A , B , C , D

Multiplexer
(a) Implement the Boolean function with a 41 multiplexer and external gates.
F(A,B,C,D)=|~(3,8,12)
(b) An 8-to-1 multiplexer has inputs A,B, and C connected to the selection inputs S2,S1, and S0,
respectively. The data inputs 10 through 17 are as follows:
|1=12=17=0;13=15=1;10=14=D; and 16=D'
Determine the Boolean function that the multiplexer implements.
