NAME DATE PERIOD SERIES AND PARALLEL CIRCUITS ELECTRIC CIRCUITS An electric circuit provides a complete, closed path for an electric current. Electricity can only flow

image text in transcribed

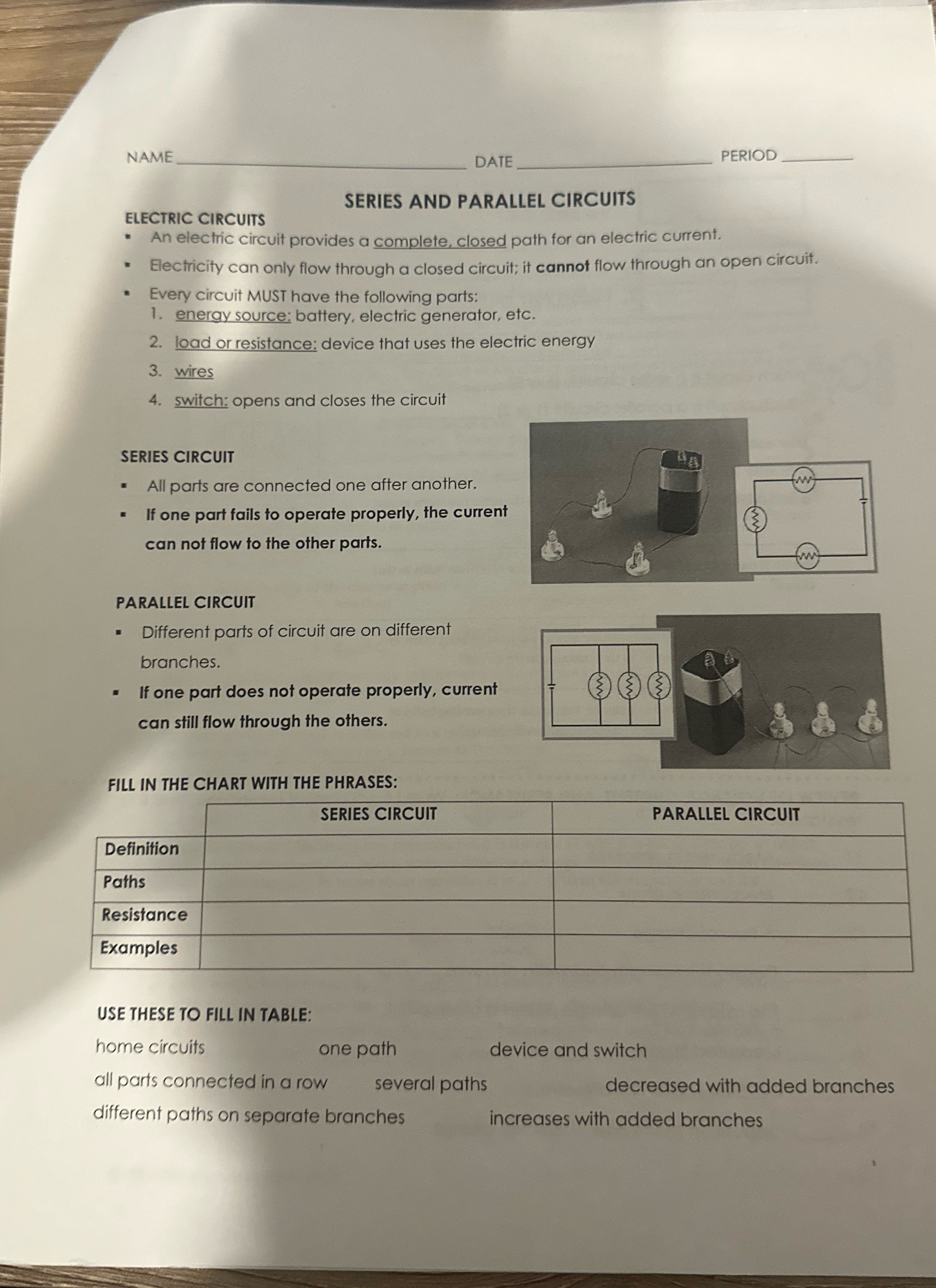

NAME DATE PERIOD SERIES AND PARALLEL CIRCUITS ELECTRIC CIRCUITS An electric circuit provides a complete, closed path for an electric current. Electricity can only flow through a closed circuit; it cannot flow through an open circuit. Every circuit MUST have the following parts: 1. energy source: battery, electric generator, etc. 2. load or resistance: device that uses the electric energy 3. wires 4. switch: opens and closes the circuit SERIES CIRCUIT All parts are connected one after another. . If one part fails to operate properly, the current 3 can not flow to the other parts. PARALLEL CIRCUIT . Different parts of circuit are on different branches. If one part does not operate properly, current can still flow through the others. FILL IN THE CHART WITH THE PHRASES: SERIES CIRCUIT PARALLEL CIRCUIT Definition Paths Resistance Examples USE THESE TO FILL IN TABLE: home circuits one path device and switch all parts connected in a row several paths decreased with added branches different paths on separate branches increases with added branches

Step by Step Solution

There are 3 Steps involved in it

Step: 1

blur-text-image
