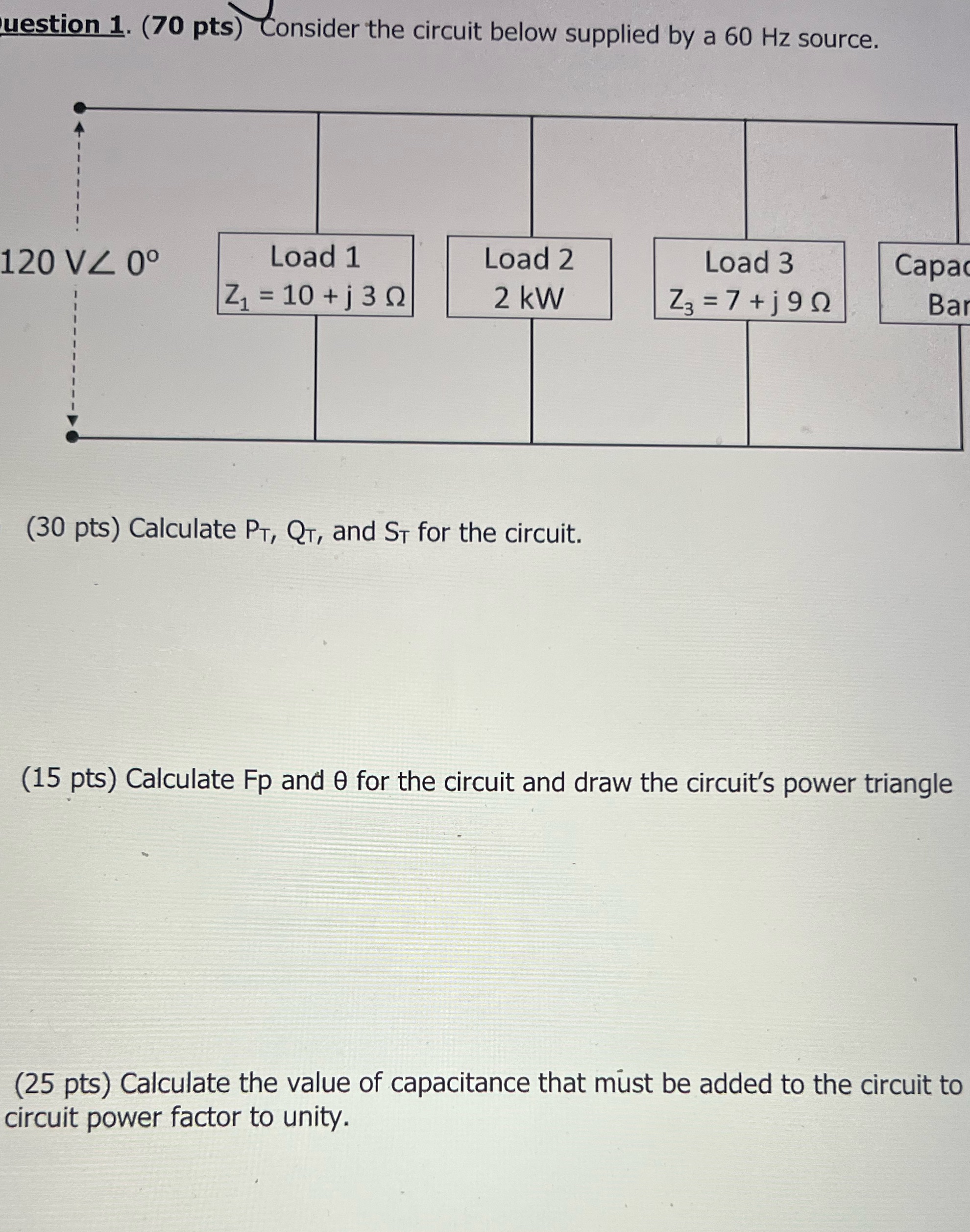

Need help on this ac parallel circuit question uestion 1. (70 pts) Consider the circuit below supplied by a 60 Hz source. 120 VZ 0

Need help on this ac parallel circuit question

image text in transcribed
uestion 1. (70 pts) Consider the circuit below supplied by a 60 Hz source. 120 VZ 0 Load 1 Load 2 Load 3 Capa Z1 = 10 +j30 2 kW Z3 = 7 +j90 Bar (30 pts) Calculate PT, QT, and ST for the circuit. (15 pts) Calculate Fp and 0 for the circuit and draw the circuit's power triangle (25 pts) Calculate the value of capacitance that must be added to the circuit to circuit power factor to unity

Step by Step Solution

There are 3 Steps involved in it

Step: 1
