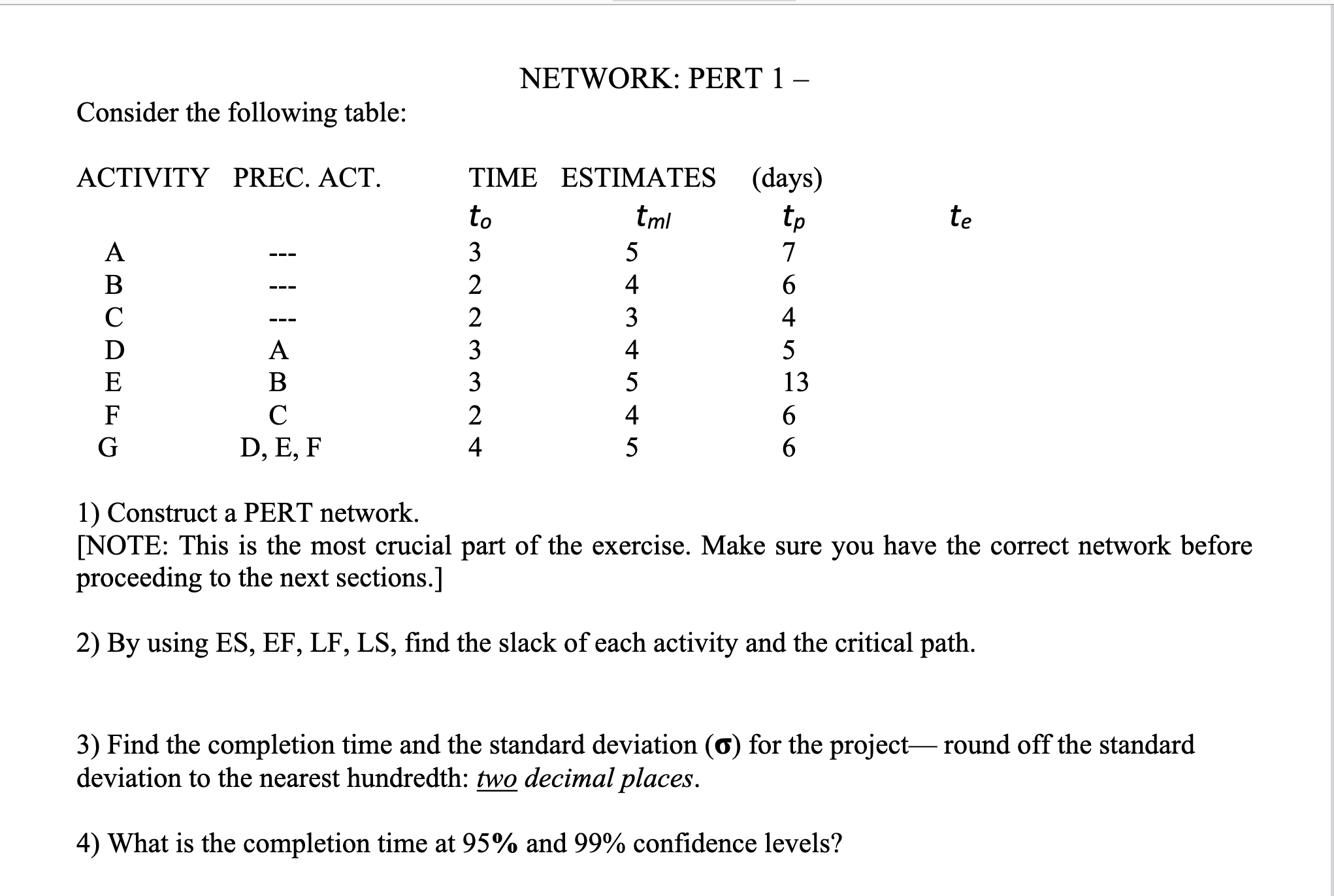

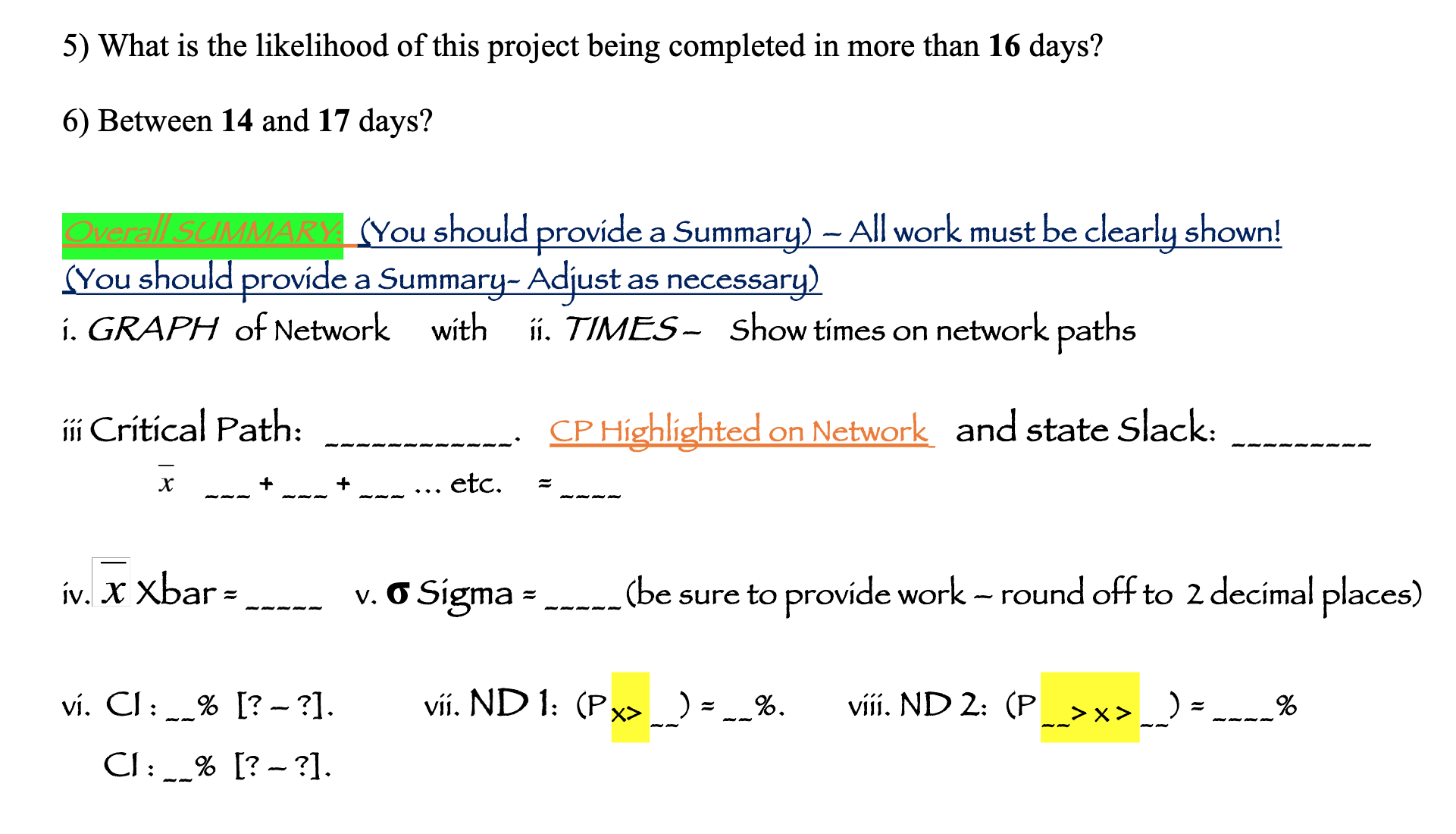

NETWORK: PERT 1 - Consider the following table: ACTIVITY PREC. ACT. TIME ESTIMATES (days) to tml tp te A --- 3 5 7 B - 2 4 6 C --- 2 3 4 D A 3 4 5 E B 3 5 13 F C 2 4 6 G D,E,F 4 5 6 1) Construct a PERT network. [NOTE: This is the most crucial part of the exercise. Make sure you have the correct network before proceeding to the next sections. ] 2) By using ES, EF, LF, LS, find the slack of each activity and the critical path. 3) Find the completion time and the standard deviation (6) for the project round off the standard deviation to the nearest hundredth: two decimal places. 4) What is the completion time at 95% and 99% confidence levels? 5) What is the likelihood of this project being completed in more than 16 days? 6) Between 14 and 17 days? Overall SUMMARY (You should provide a Summary) - All work must be clearly shown! (You should provide a Summary- Adjust as necessary) i. GRAPH of Network with ii. TIMES- Show times on network paths ili Critical Path: CP Highlighted on Network and state Slack: X + + ... etc. 2 iv. x Xbar = - V. Sigma =_____(be sure to provide work - round off to 2 decimal places) vi. CI: __% [? - ?]. vii. ND 1: (P x> %. vili. ND 2: (P % CI: _% [? - ?]
