Next three questions: see the circuit below with a switch that was on the left side for a long time, then goes from left to

image text in transcribed
image text in transcribed

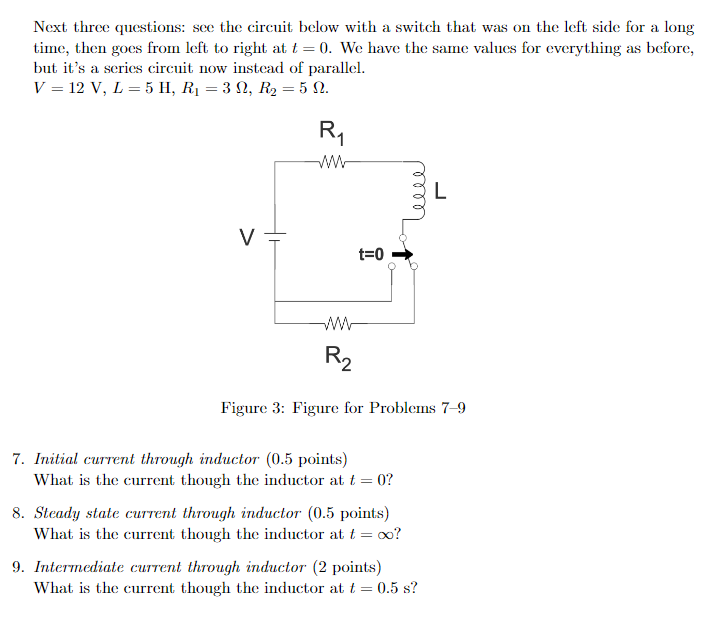

Next three questions: see the circuit below with a switch that was on the left side for a long time, then goes from left to right at t =0. We have the same values for everything as before, but it's a series circuit now instead of parallel. V = 12 V, L = 5 H, R1 = 3 0, R2 = 5 0. WW Logpa L V R2 Figure 3: Figure for Problems 7-9 7. Initial current through inductor (0.5 points) What is the current though the inductor at t = 0? 8. Steady state current through inductor (0.5 points) What is the current though the inductor at t = co? 9. Intermediate current through inductor (2 points) What is the current though the inductor at t = 0.5 s
