P 2 - 2 A ( a ) Revisit the data in Table 2 - 1 Raw Data and calculate the batch reactor ( BR

P2-2 A (a) Revisit the data in Table 2-1 Raw Data and calculate the batch reactor (BR) times to achieve 5%,45%, and 75% conversion when 100 moles of A are charged to a 400dm3 reactor.
(b) Revisit Example 2-1 through 2-3. How would your answers change if the flow rate, FA0, were reduced to one quarter? If it were tripled? What conversion can be achieved in a 5.5m3PFR and in a 5.5m3 CSTR?
(c) Revisit Example 2-2. Being a company about to go bankrupt, you can only afford a 2.0m3 CSTR. What conversion can you achieve?
(d) Revisit Example 2-3. What conversion could you achieve if you could convince your boss, Dr. Pennypincher, to spend more money to buy a 1.2m3 PFR to attach to a 2.40m3 CSTR?
(e) Revisit Example 2-4. How would your answers change if the two CSTRs (one 0.82m3 and the other 3.2m3) were placed in parallel with the flow, FA0, divided equally between the reactors?
(e) Revisit Example 2-5.(1) What is the worst possible way to arrange the two CSTRs and one PFR?(2) What would be the reactor volumes if the two intermediate conversion were changed to 25% and 55%, respectively? (3) What would be the conversions, x1,x2, and x3, if all the reactors had the same volume of 80dm3 and were placed in the same order?
(g) Revisit Example 2-6. If the term CA00xdx-rA is 2 seconds for 80% conversion, how much fluid (m3min) can you process in a 5m3 reactor?
P2-3 B ?B You have two CSTRs and two PFRs, each with a volume of 1.2m3. Use Figure 2-2(b) on page 79 to calculate the conversion for each of the reactors in the following arrangements.
(a) Two CSTRs in series. (Ans: x1=0.475,x2=0.718)
(b) Two PFRs in series.
(c) Two CSTRs in parallel with the feed, FA0, divided equally between the two reactors.
(d) Two PFRs in parallel with the feed divided equally between the two reactors.
(e) A PFR followed by a CSTR.

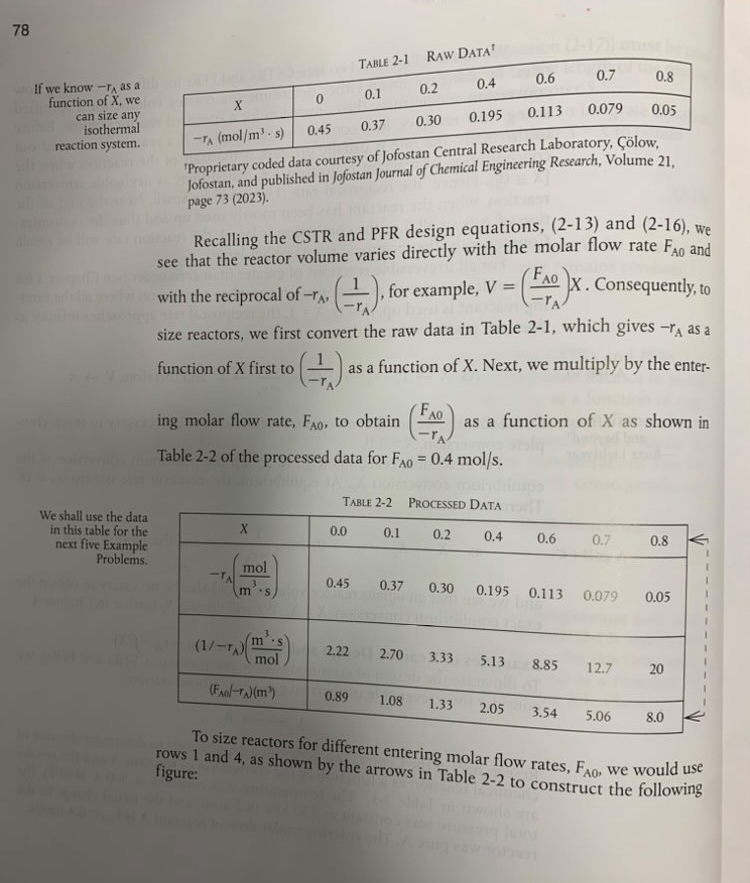

78
If we know -rA as a function of x, we can size any isothermal reaction system.
We shall use the data in this table for the next five Example Problems.
'Proprietary coded data courtesy of Jofostan Central Research Laboratory, low, Jofostan, and published in Jofostan Journal of Chemical Engineering Research, Volume 21, page 73(2023).
Recalling the CSTR and PFR design equations, (2-13) and (2-16), we see that the reactor volume varies directly with the molar flow rate FA0 and with the reciprocal of -rA,(1-rA), for example, V=(FA0-rA)x. Consequently, to size reactors, we first convert the raw data in Table 2-1, which gives -rA as a function of x first to (1-rA) as a function of x. Next, we multiply by the entering molar flow rate, FA0, to obtain (FA0-rA) as a function of x as shown in Table 2-2 of the processed data for FA0=0.4mols.
TABLE 2-2 PRocessed Data
\table[[x,0.0,0.1,0.2,0.4,0.6,0.7,0.8],[-rA(molm3*s),0.45,0.37,0.30,0.195,0.113,0.079,0.05],[(1-rA)(m3*smol),2.22,2.70,3.33,5.13,8.85,12.7,20],[(FAO-rA)(m3),0.89,1.08,1.33,2.05,3.54,5.06,8.0]]
To size reactors for different entering molar flow rates, FA0, we would use rows 1 and 4, as shown by the arrows in Table 2-2 to construct the following figure:
image text in transcribed
