Question

1 Approved Answer

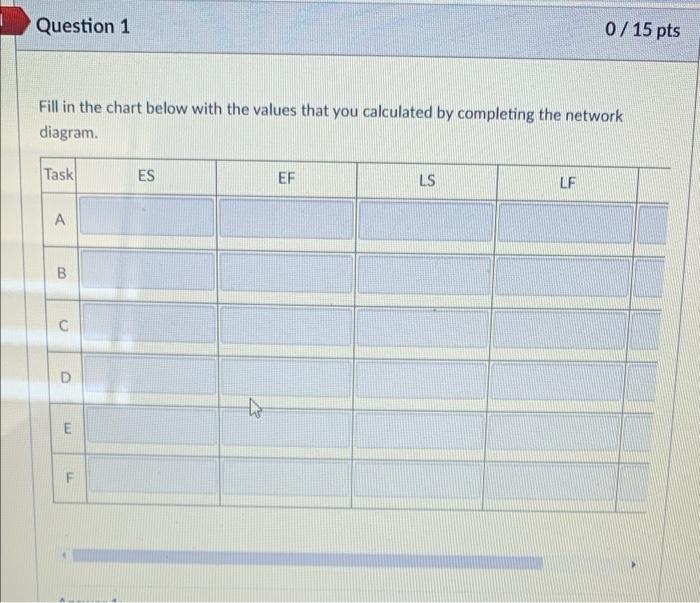

part 1 TASK ES EF LS LF SLACK A B C D E F PLEASE ANSWER ALL THREE PARTS CORRECTLY ITS VERY IMPORTANT FOR ME

part 1
TASK ES EF LS LF SLACK
A
B
C
D
E
F

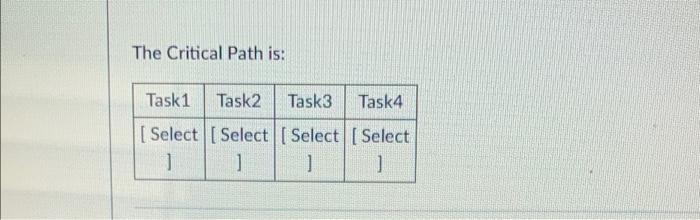

PLEASE ANSWER ALL THREE PARTS CORRECTLY ITS VERY IMPORTANT FOR ME
ALL THREE ARE PART OF ONE QUESTION
THANK YOU! image text in transcribed
image text in transcribed
image text in transcribed
image text in transcribed

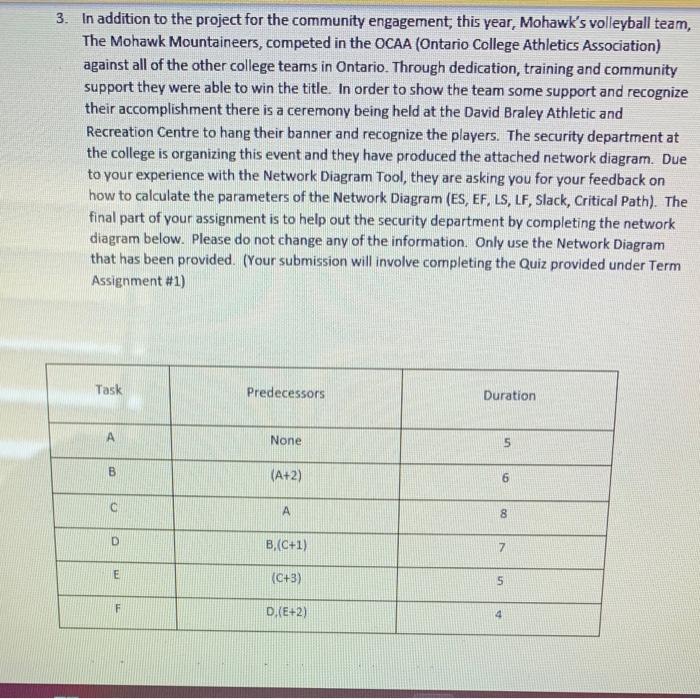

3. In addition to the project for the community engagement, this year, Mohawk's volleyball team, The Mohawk Mountaineers, competed in the OCAA (Ontario College Athletics Association) against all of the other college teams in Ontario. Through dedication, training and community support they were able to win the title. In order to show the team some support and recognize their accomplishment there is a ceremony being held at the David Braley Athletic and Recreation Centre to hang their banner and recognize the players. The security department at the college is organizing this event and they have produced the attached network diagram. Due to your experience with the Network Diagram Tool, they are asking you for your feedback on how to calculate the parameters of the Network Diagram (ES, EF, LS, LF, Slack, Critical Path). The final part of your assignment is to help out the security department by completing the network diagram below. Please do not change any of the information. Only use the Network Diagram that has been provided. (Your submission will involve completing the Quiz provided under Term Assignment #1) Task Predecessors Duration None 5 B (A+2) 6 A B. (C+1) (C+3) D,(E+2) D E LL F 00 8 7 5 4 0/15 pts Question 1 Fill in the chart below with the values that you calculated by completing the network diagram. Task ES EF LS LF A B C D E TI F The Critical Path is: Task 1 Task2 Task3 [Select [Select [ Select ] 1 ] Task4 [Select [] The shortest duration of the project is: i.e. The amount of time the project will take if we follow the critical path. 40 3. In addition to the project for the community engagement, this year, Mohawk's volleyball team, The Mohawk Mountaineers, competed in the OCAA (Ontario College Athletics Association) against all of the other college teams in Ontario. Through dedication, training and community support they were able to win the title. In order to show the team some support and recognize their accomplishment there is a ceremony being held at the David Braley Athletic and Recreation Centre to hang their banner and recognize the players. The security department at the college is organizing this event and they have produced the attached network diagram. Due to your experience with the Network Diagram Tool, they are asking you for your feedback on how to calculate the parameters of the Network Diagram (ES, EF, LS, LF, Slack, Critical Path). The final part of your assignment is to help out the security department by completing the network diagram below. Please do not change any of the information. Only use the Network Diagram that has been provided. (Your submission will involve completing the Quiz provided under Term Assignment #1) Task Predecessors Duration None 5 B (A+2) 6 A B. (C+1) (C+3) D,(E+2) D E LL F 00 8 7 5 4 0/15 pts Question 1 Fill in the chart below with the values that you calculated by completing the network diagram. Task ES EF LS LF A B C D E TI F The Critical Path is: Task 1 Task2 Task3 [Select [Select [ Select ] 1 ] Task4 [Select [] The shortest duration of the project is: i.e. The amount of time the project will take if we follow the critical path. 40
