Part A

Learning Goal:

To calculate the internal normal force, shear force,

and bending moment at a point in a beam.

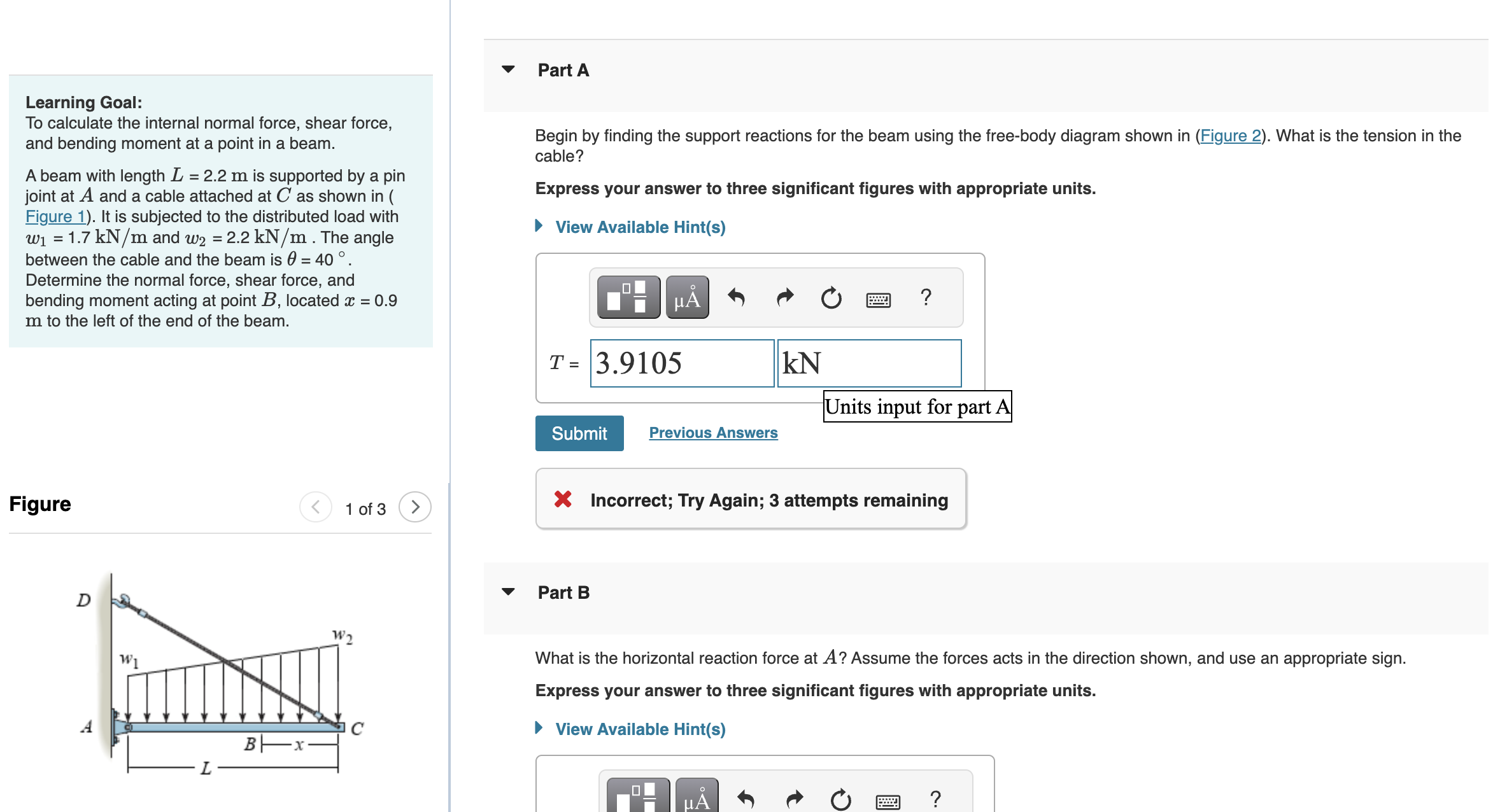

A beam with length $L=2\mathrm{.}2m$ is supported by a pin

joint at A and a cable attached at $C$ as shown in $($

Figure $1).$ It is subjected to the distributed load with

$w_1=1\mathrm{.}7k\frac{N}{m}$ and $w_2=2\mathrm{.}2k\frac{N}{m}.$ The angle

between the cable and the beam is $=40.$

Determine the normal force, shear force, and

bending moment acting at point $B,$ located $x=0\mathrm{.}9$

$m$ to the left of the end of the beam.

Figure

$1$ of $3$

$1$ of $3$

Incorrect; Try Again; $3$ attempts remaining

Part B

Units input for part A

Previous Answers

Begin by finding the support reactions for the beam using the free$-$body diagram shown in $($Figure $2).$ What is the tension in the

cable?

Express your answer to three significant figures with appropriate units.

View Available Hint$($s$)$

Previous Answers

$$ Incorrect; Try Again; $3$ attempts remaining

What is the horizontal reaction force at $A?$ Assume the forces acts in the direction shown, and use an appropriate sign.

Express your answer to three significant figures with appropriate units.

View Available Hint$($s$)$
