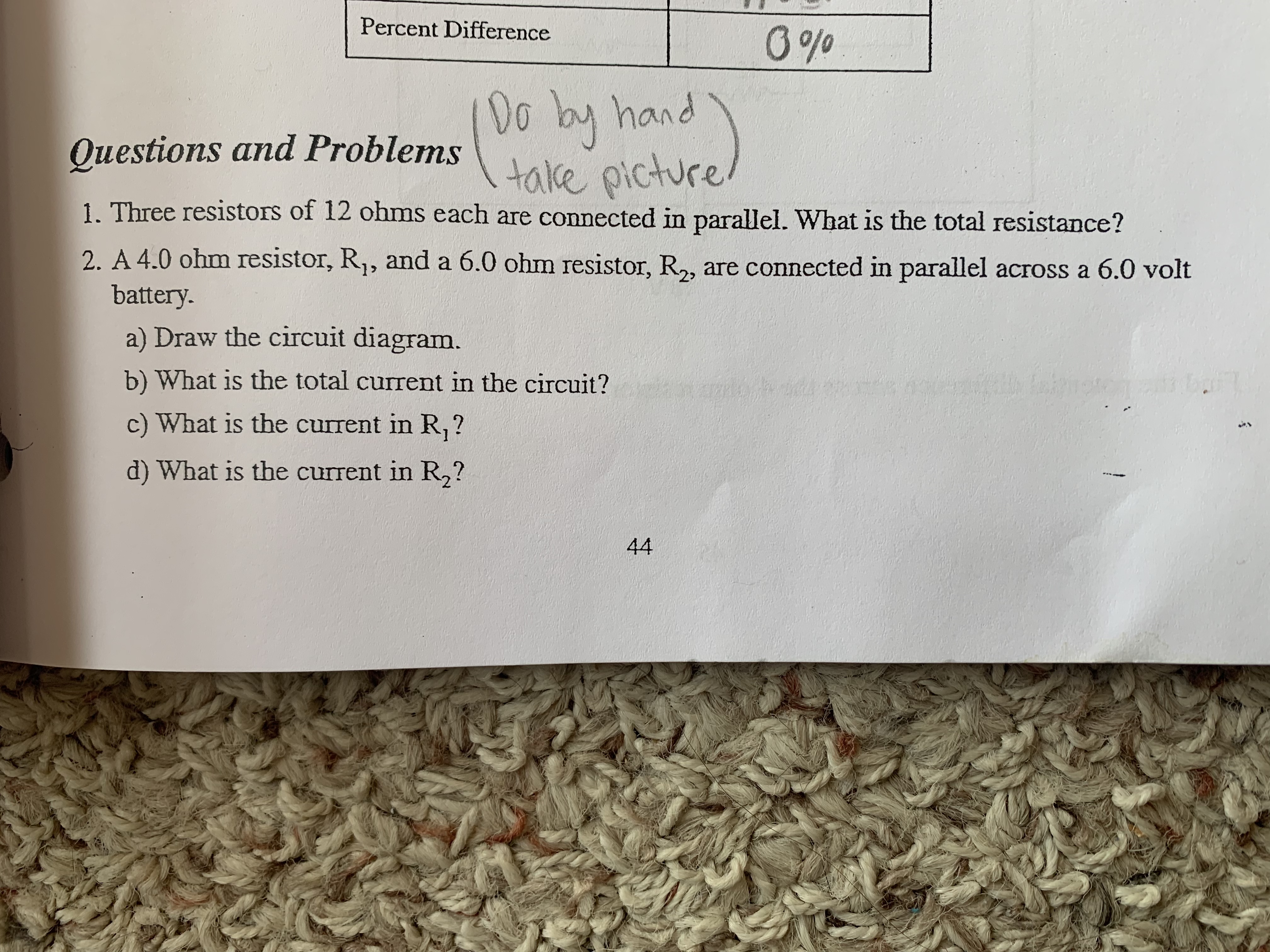

Percent Difference Do by hand Questions and Problems take picture 1. Three resistors of 12 ohms each are connected in parallel. What is the total

image text in transcribedimage text in transcribed
image text in transcribedimage text in transcribed

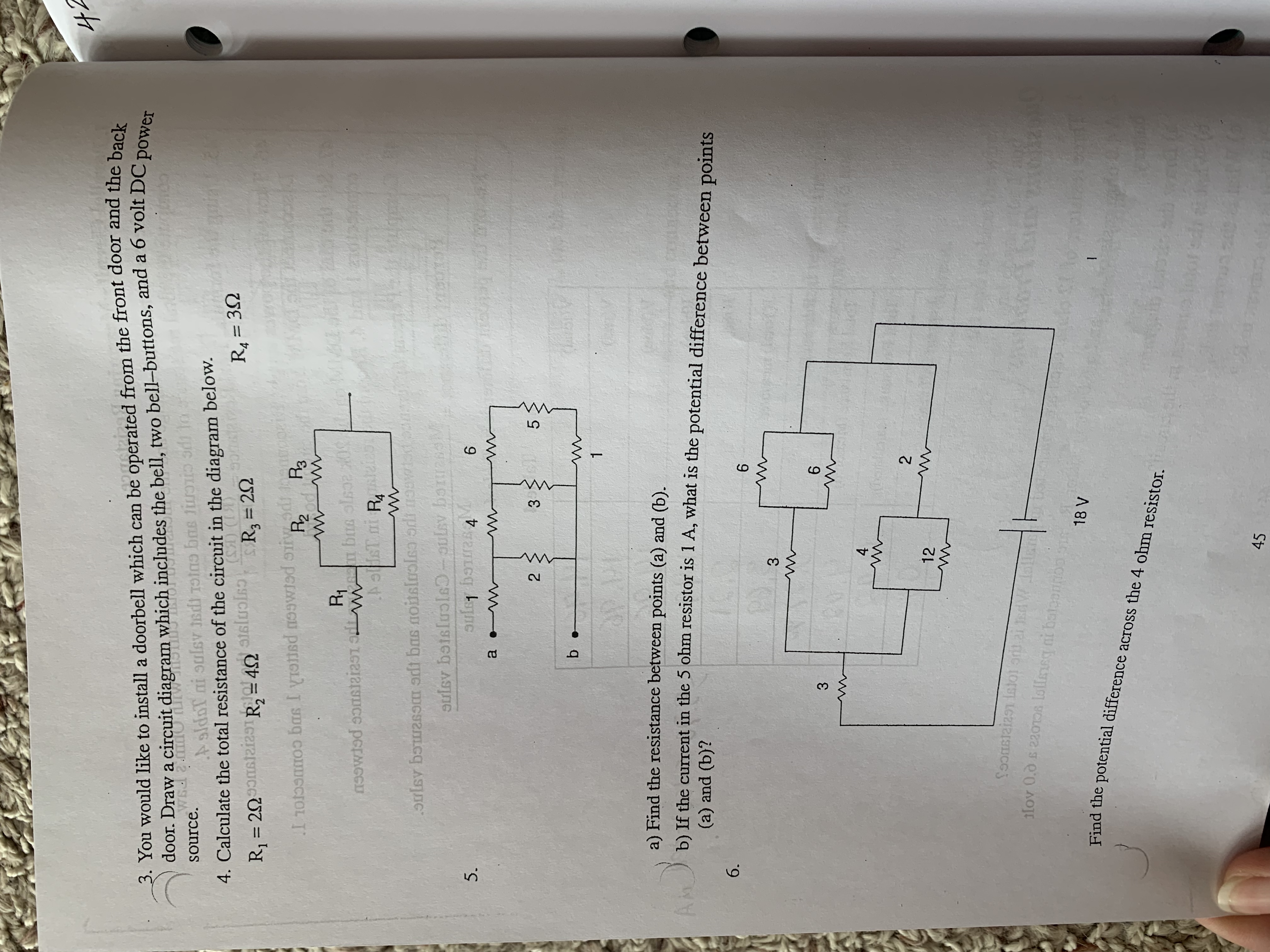

Percent Difference Do by hand Questions and Problems take picture 1. Three resistors of 12 ohms each are connected in parallel. What is the total resistance? 2. A 4.0 ohm resistor, R,, and a 6.0 ohm resistor, R2, are connected in parallel across a 6.0 volt battery. a) Draw the circuit diagram. b) What is the total current in the circuit? c) What is the current in R, ? d) What is the current in R2? 444 2 3. You would like to install a doorbell which can be operated from the front door and the back door. Draw a circuit diagram which includes the bell, two bell-buttons, and a 6 volt DC power source. 4. Calculate the total resistance of the circuit in the diagram below. R1 = 209018121291 R, 249 6 0159 S. R3 = 202 RA = 302 .I rotosmoo bas I vioned nowted ofy R 2 R3 asowled sonstarast oulsy bourassa oft bus nousluolsa erdt sulev botsluols)) - pulsy barnes 5. 6 a .w MV WV 2 5 b m a) Find the resistance between points (a) and (b). AM (a) and (b)? b) If the current in the 5 ohm resistor is 1 A, what is the potential difference between points 6. 6 3 M 3 6 M 4 2 12 ilov 0.0 6 220108 lollmeg ni balconhoo on 18 V Find the potential difference across the 4 ohm resistor. 45
