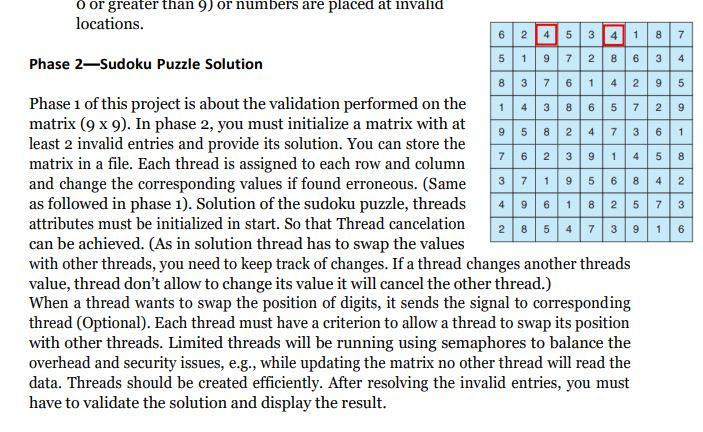

Phase I-Sudoku Solution Validator A Sudoku puzzle uses a 99 grid in which each column and row, as well as each of the nine 33 sub grids, must contain all the digits 19. Figure presents an example of a valid Sudoku puzzle. This project consists of designing a multithreaded application that determines whether the solution to a Sudoku puzzle is valid. There are several different ways of multithreading this application. One suggested strategy is to create threads that check the following criteria: - A thread to check that each column contains the digits 1 through 9 - A thread to check that each row contains the digits 1 through 9 - Nine threads to check that each of the 33 sub grids contain 9 columns Passing Parameters to Each Thread The parent thread will create the worker threads, passing each worker the location that it must check in the Sudoku grid. This step will require passing several parameters to each thread. The easiest approach is to create a data structure using a struct. For example, a structure to pass the row and column where a thread must begin validating would appear as follows: /* structure for passing data to threads */ typedef struct \{ int row; int column; \} parameters; Pthreads program will create worker threads using a strategy similar to that shown below: parameters *data =( parameters ) malloc(sizeof(parameters ) ) data > row =1 data->column =1 / Now create the thread passing it data as a parameter */ The data pointer will be passed to either the pthread create) (Pthreads) function, which in turn will pass it as a parameter to the function that is to run as a separate thread. Each worker thread is assigned the task of determining the validity of a particular region of the Sudoku puzzle. Once a worker has performed this check, it must pass its results backto the parent. The ith index in this array corresponds to the i th worker thread. If a workersets its corresponding value to 1 , it is indicating that its region of the Sudoku puzzle isvalid. A value of o would indicate otherwise. When all worker threads have completed, the parent thread checks each entry in the result array to determine if the Sudoku puzzle is valid. Conditions: - Threads are not allowed to update other part of the array. Other threads can only read the value from the array. (For example, thread i can only write on ith location, for other parts it can only read from the array.) - When thread returns values to Main thread and it is writing on array, no other thread can read array value. - Thread will return the value to Main thread. - Here you must synchronize the task and apply mutex lock. - Thread can cancel the other thread, if found an invalid entry. But you must set the criteria for cancelation. (For which thread you need to set accept cancelation or not.) - Storing the invalid entries and their indexes. EXPECTED OUTPUT: Phase I Main thread will display the final result - Invalid boxes in the puzzle (Values and indexes) - Invalid rows (Values and indexes) - Invalid columns (Values and indexes) - Thread ID with each invalid output showing which thread has calculated the result. - Cancelled thread id (both threads IDs) - Comparison results of invalidation. (e.g., Row one has repeated value 3 ). - Total count of invalid entries. - Output statement showing that invalidation is because of invalid digits (less than o or greater than 9 ) or numbers are placed at invalid locations. o or greater than 9) or numbers are placed at invalid locations. Phase 2-Sudoku Puzzle Solution Phase 1 of this project is about the validation performed on the matrix (99). In phase 2 , you must initialize a matrix with at least 2 invalid entries and provide its solution. You can store the matrix in a file. Each thread is assigned to each row and column and change the corresponding values if found erroneous. (Same as followed in phase 1). Solution of the sudoku puzzle, threads attributes must be initialized in start. So that Thread cancelation can be achieved. (As in solution thread has to swap the values with other threads, you need to keep track of changes. If a thread changes another threads value, thread don't allow to change its value it will cancel the other thread.) When a thread wants to swap the position of digits, it sends the signal to corresponding thread (Optional). Each thread must have a criterion to allow a thread to swap its position with other threads. Limited threads will be running using semaphores to balance the overhead and security issues, e.g., while updating the matrix no other thread will read the data. Threads should be created efficiently. After resolving the invalid entries, you must have to validate the solution and display the result. Main thread will display the following results: - Original and Resultant Puzzle in Matrix format. - Total invalid entries. - Threads created against each invalid entry. - No of moves for each invalid entry. - IDs of all threads with their ith indexes. - Location of invalid entry and its new position
